Eaton B070-016-19-IP Tripp Lite16 Port Cat5 IP Rack Mount KVM Switch 1U

Eaton B070-016-19-IP 16 Port Cat5 IP Rack Mount KVM Switch 1U

Overview

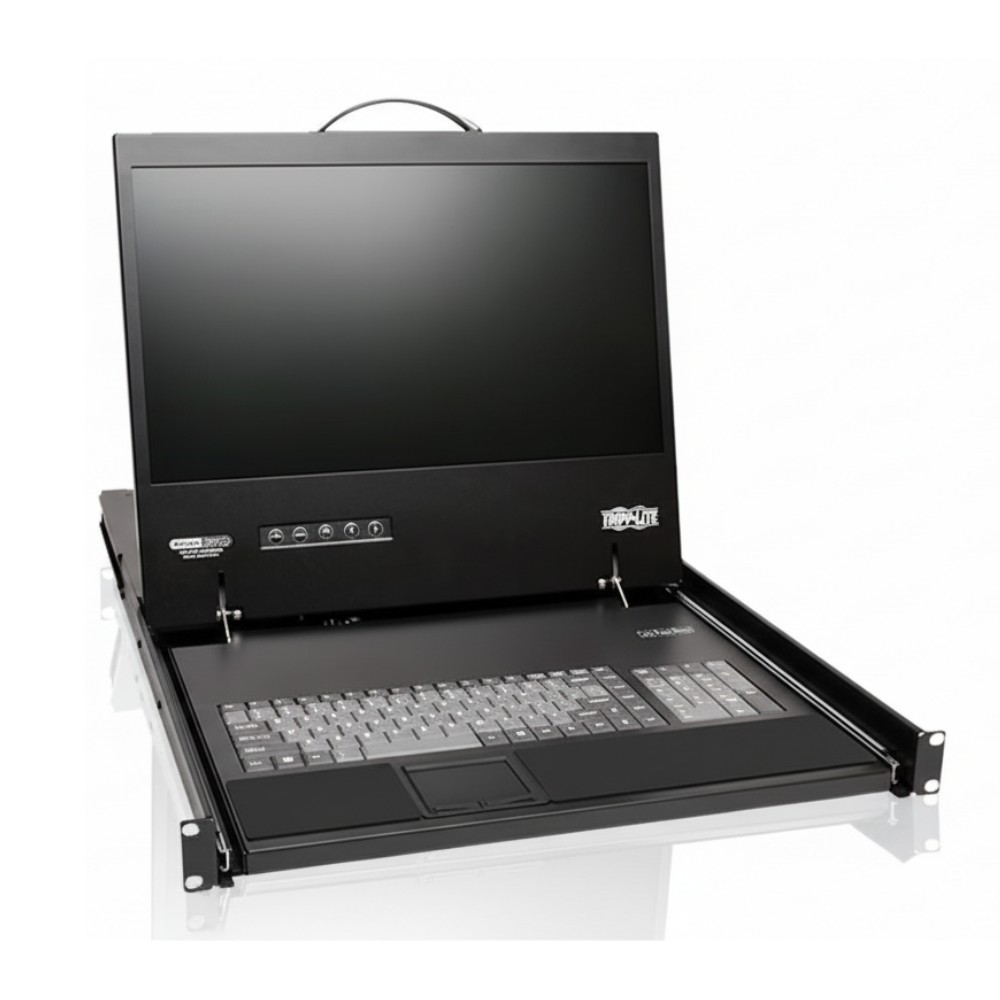

The Eaton B070-016-19-IP is a 1U rack-mount KVM (Keyboard-Video-Mouse) over IP switch designed for IT professionals who need to manage up to 16 servers or workstations from both local and remote locations using standard network infrastructure. It includes a built-in 19″ LCD monitor, full-size keyboard and touchpad—all packed into a single slide-out rack drawer that consumes just one rack unit.Using Cat5e/6 cabling, each server can be connected via a lightweight interface unit up to about 30 metres (100 ft) from the KVM switch, which simplifies cabling and improves flexibility in rack layouts. The B070-016-19-IP supports one local user and one remote user simultaneously, with the remote session available via LAN/WAN/Internet using the built-in network ports. Typical use cases include server rooms, data-centres or remote branch sites where physical access may be limited and you need full console access and control of multiple servers from a single interface.With support for both PS/2 and USB keyboard/mouse interfaces, resolution up to 1366×768 on the built-in LCD, cascading capability for larger installations and compliance with TAA (Trade Agreements Act) for government/enterprise procurement, this unit delivers both access convenience and deployment flexibility.When you have a rack full of servers, want to reduce multiple monitors/keyboards, and need to manage equipment both locally and remotely over IP, the B070-016-19-IP gives you a unified console and remote access capability without sacrificing rack-space efficiency.

Key Features

• Built-in 19″ LCD monitor, full-size keyboard and touchpad in a 1U rack-mount drawer saves rack space and consolidates console hardware.

• Supports up to 16 connected computers via Cat5/6 cabling with interface units, reducing bulky multi-cable runs.

• Local + remote access: one local user at the rack and one remote user via IP can operate simultaneously for flexibility.

• Cascade capable: connect additional KVM switches to scale up to hundreds of servers from one console infrastructure.
