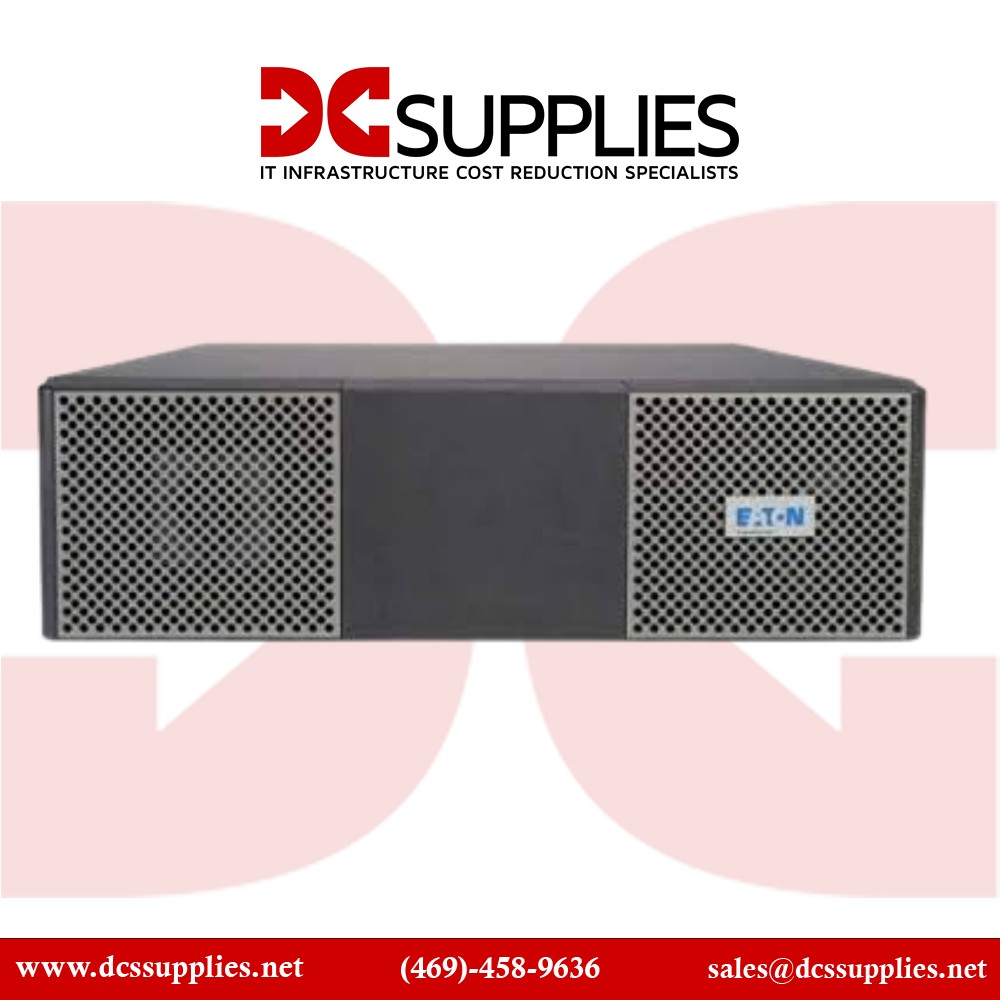

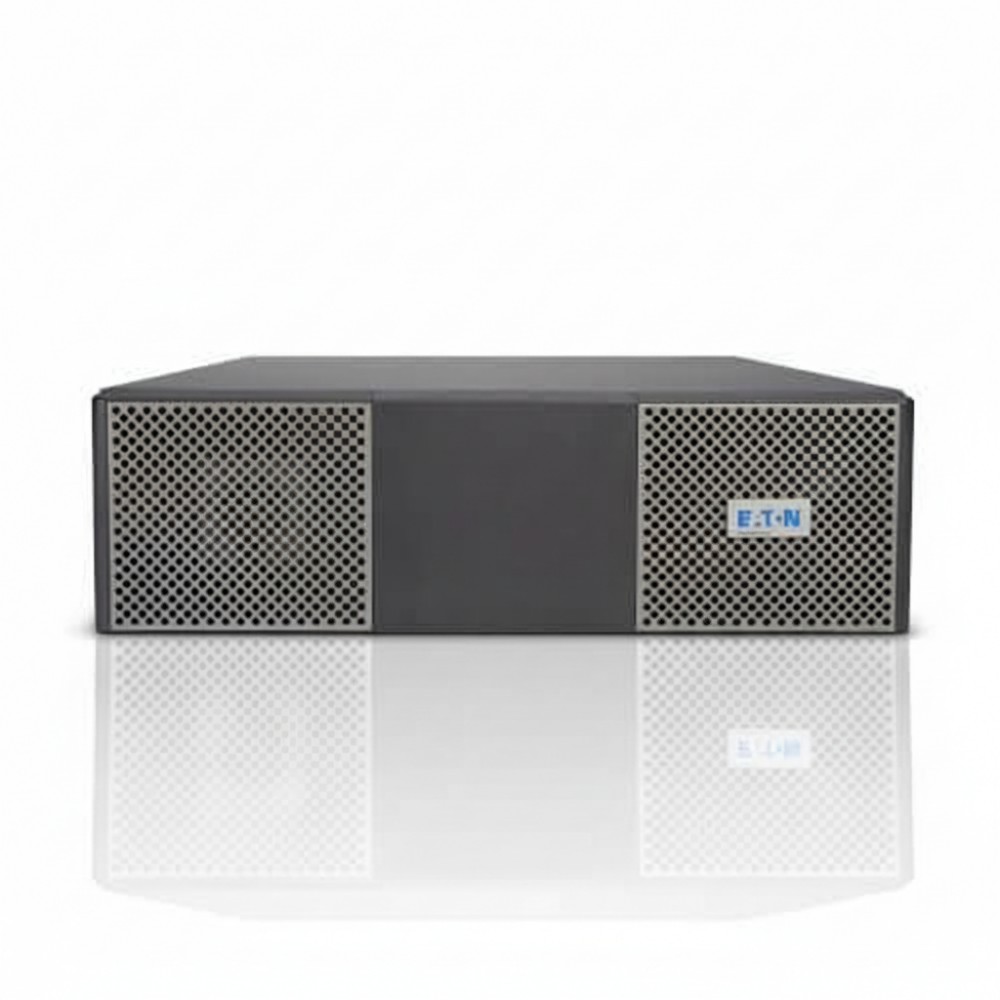

Eaton 9PXPPDM2 3U PowerPass Distribution Module Rack Mountable

Eaton 9PXPPDM2 3U PowerPass Distribution Module Rack Mountable

Overview

The Eaton 9PXPPDM2 is a 3U rackmountable PowerPass Distribution Module designed to facilitate seamless power distribution and maintenance for Eaton 9PX UPS systems. This module allows for the conversion of 208V high-voltage input to 120V low-voltage output, providing a reliable power path for connected equipment. It features hardwired input and output connections, ensuring secure and efficient power delivery. The 9PXPPDM2 is compatible with Eaton 9PX5K, 9PX6K, 9PX6K-L, and 9PX3K3UN UPS models, offering flexibility in various IT environments. Equipped with resettable 30A circuit breakers, the module protects against overload conditions, enhancing the safety and longevity of connected equipment. Its front-panel maintenance bypass switch enables safe servicing or replacement of the UPS system without interrupting power to the connected load, ensuring zero-downtime maintenance.The 9PXPPDM2 can be mounted in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). Additionally, it can be adapted for tower installation using the included joining bracket and hardware, providing versatile installation options to suit different setups.

Key Features

• Voltage Conversion: Converts 208V high-voltage input to 120V low-voltage output.

• Hardwired Connections: Features secure hardwired input and output for connecting equipment.

• Overload Protection: Equipped with resettable 30A circuit breakers to protect against overload conditions.

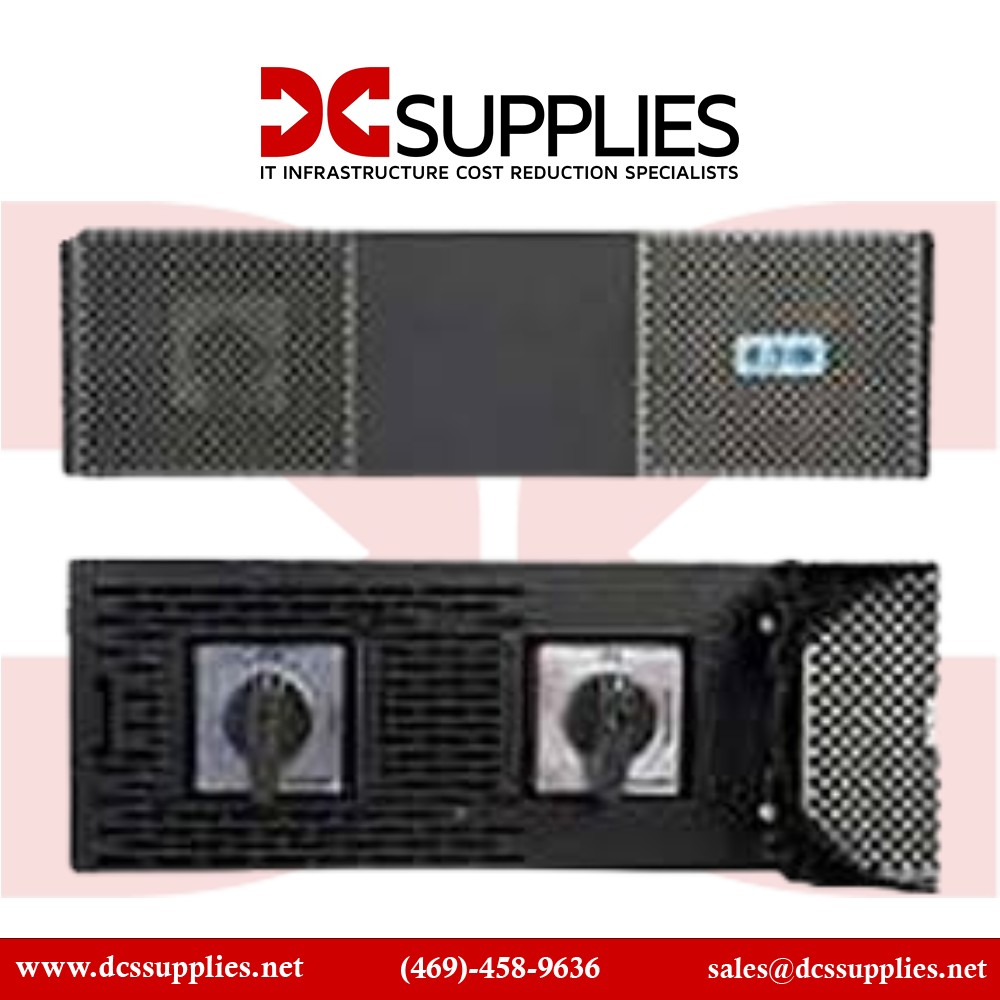

• Maintenance Bypass Switch: Allows for safe servicing or replacement of the UPS system without interrupting power to the connected load.

• Versatile Installation: Mountable in 3U of space in an EIA-standard 19-inch rack or adaptable for tower installation.

• Compatibility: Designed for use with Eaton 9PX5K, 9PX6K, 9PX6K-L, and 9PX3K3UN UPS models.
