Detailed Specifications

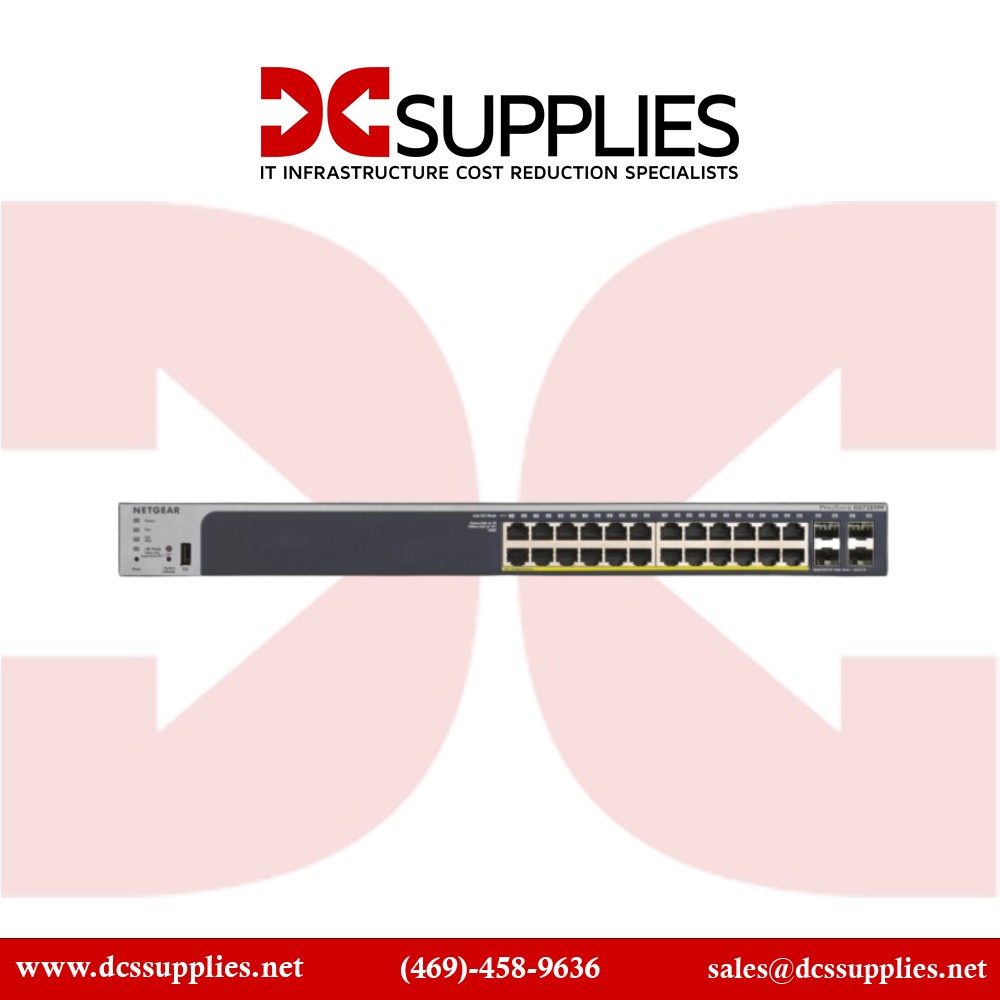

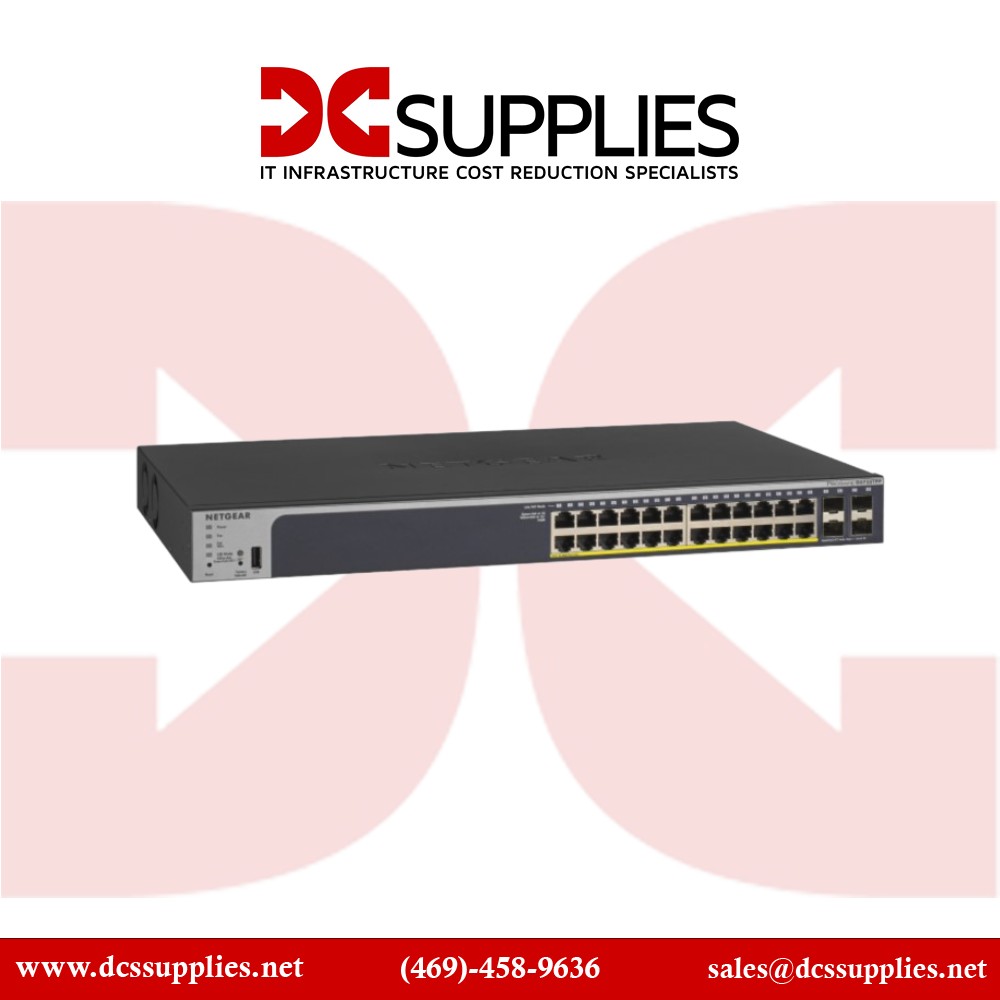

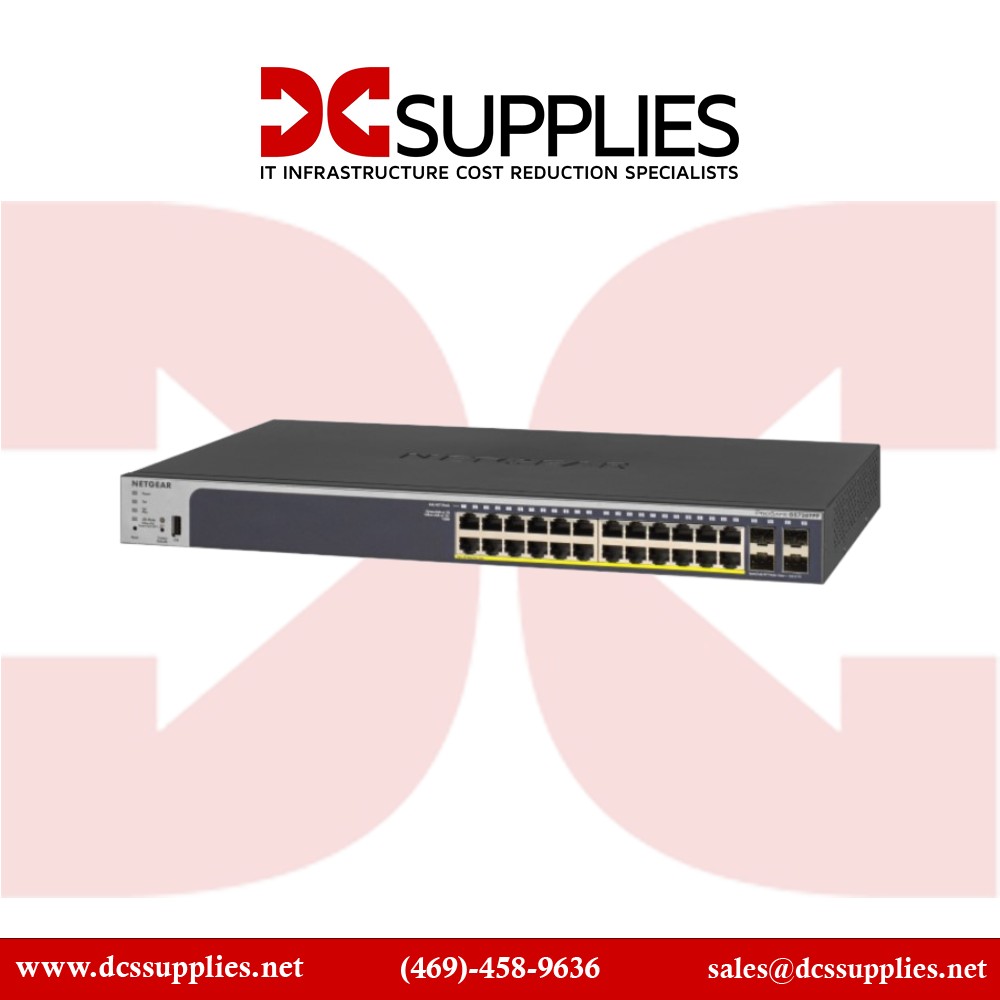

Netgear ProSafe GS728TP Ethernet Switch - 24 Ports - Manageable - 2
All ports PoE+ with up to 760W PoE budget - Select your new network engine!
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains.
The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA.
| General Information |
|---|
| Product Type: |
Ethernet Switch |
| Manufacturer: |
Netgear, Inc |
| Manufacturer Part Number: |
GS728TP-200NAS |
| Brand Name: |
Netgear |
| Manufacturer Website Address: |
http://www.netgear.com |
| Product Model: |
GS728TP |
| Product Name: |
ProSafe GS728TP Ethernet Switch |
| Product Line: |
ProSafe |
| Power Description |
|---|
| Power Source: |
Power Supply |
| Redundant Power Supply Supported: |
No |
| I/O Expansions |
|---|
| Shared SFP Slot: |
No |
| Number of SFP Slots: |
4 |
| Number of Total Expansion Slots: |
4 |
| Expansion Slot Type: |
SFP (mini-GBIC) |
| Network & Communication |
|---|
| Layer Supported: |
2 |
| Interfaces/Ports |
|---|
| Port/Expansion Slot Details: |
24 x Gigabit Ethernet Network |
| Uplink Port: |
Yes |
| Modular: |
Yes |
| Stack Port: |
No |
| Total Number of Network Ports: |
24 |
| Port/Expansion Slot Details: |
4 x Gigabit Ethernet Expansion Slot |
| Media & Performance |
|---|
| Media Type Supported: |
Optical Fiber |
| Network Technology: |
10/100/1000Base-TX |
| Ethernet Technology: |
Gigabit Ethernet |
| Media Type Supported: |
Twisted Pair |
| Network Technology: |
1000Base-X |

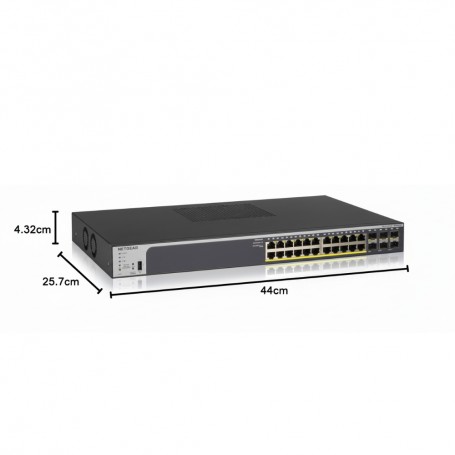

| Physical Characteristics |
|---|
| Form Factor: |
Rack-mountable |
| Height: |
1.7" |
| Weight (Approximate): |
8.22 lb |
| Depth: |
10.1" |
| Width: |
17.3" |
| Warranty |
|---|
| Limited Warranty: |
Lifetime |
| Miscellaneous |
|---|
| Package Contents: |
- ProSafe GS728TP Ethernet Switch
- Power cord
- Rack-mounting kit
- Resource CD with links to online documentation
- Installation guides
- Web-management user manual
- Smart Control Center (SCC) software and user guide
|
| Management & Protocols |
|---|
| Manageable: |
Yes |
| Basic |
|---|
| Media Type Supported: |
Optical Fiber |
| Brand Name: |
Netgear |
| Product Family: |
ProSafe |
| Stack Port: |
No |
| Total Number of Network Ports: |
24 |
| Network Technology: |
10/100/1000Base-TX |
| Number of Total Expansion Slots: |
4 |
| Expansion Slot Type: |
SFP (mini-GBIC) |
| Power Source: |
Power Supply |
| Port/Expansion Slot Details: |
Gigabit Ethernet |
| Network Technology: |
1000Base-X |
| Redundant Power Supply Supported: |
No |
| Product Type: |
Ethernet Switch |
| Manageable: |
Yes |
| Layer Supported: |
2 |
| Ethernet Technology: |
Gigabit Ethernet |
| Form Factor: |
Rack-mountable |
| Media Type Supported: |
Twisted Pair |
