Detailed Specifications

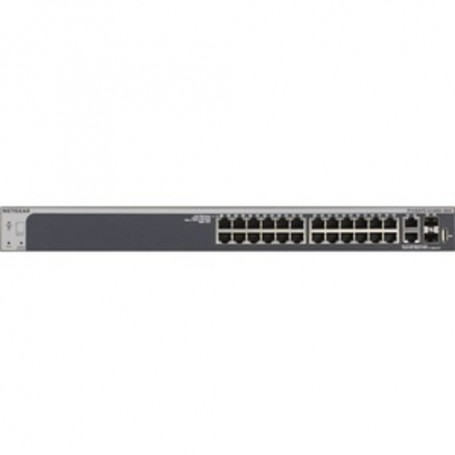

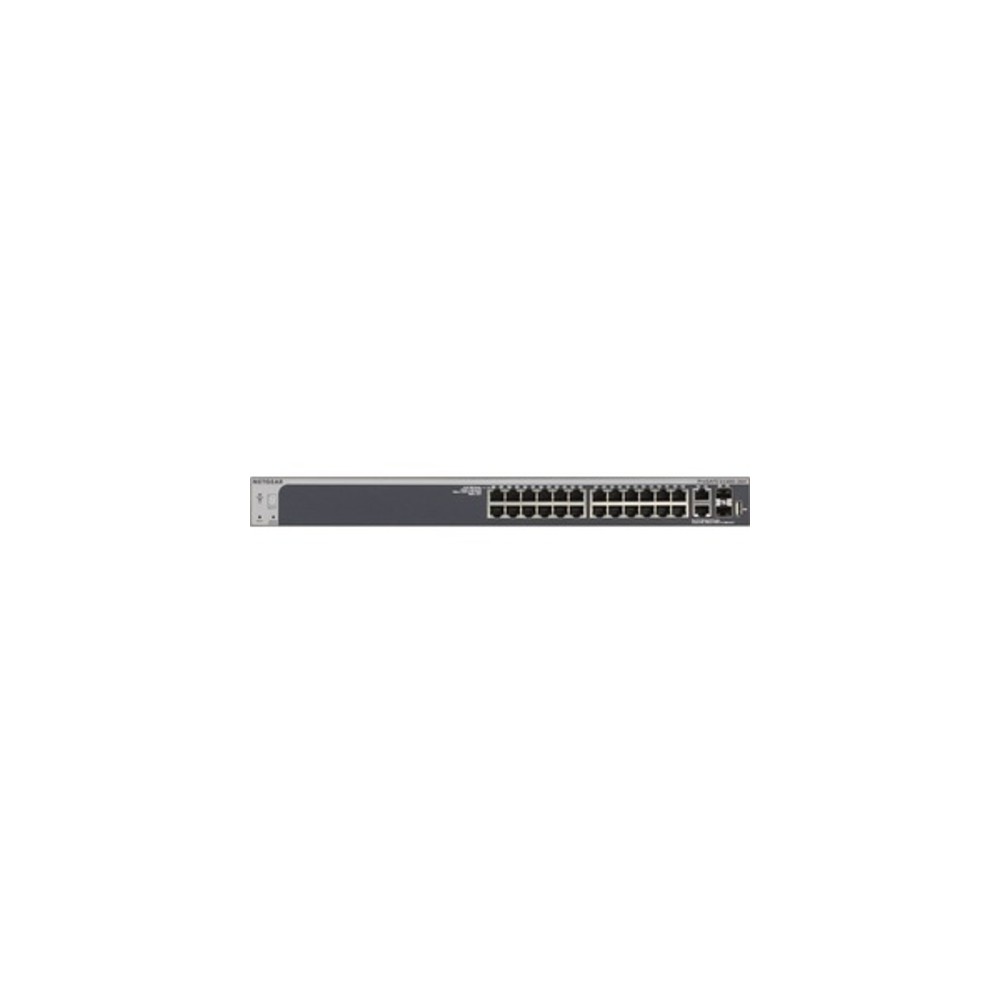

Netgear - GS728TX-100NES - Netgear 28-Port Gigabit Stackable Smart Switch - 24 Ports - Manageable - 3 Layer Supported
Overview :
Easily expand the reach of your network with the S3300-28X 28-Port Gigabit Smart Switch from NETGEAR GS728TX-100NES. Equipped with features like an 8K Mac address table, support for up to 256 VLANs, 480 shared ACL entries, 32 static routes, and 1,024 multicast groups, this gives you the tools to effectively future-proof your network. Additionally, IPv6 compatibility makes upgrading to this networking standard simple and easy.
Once configured, this switch allows for the implementation of both VLAN and VoIP applications as well as video and IP surveillance. Access control can be setup using the included ACL Wizard while the Smart Control Center assists with deployment, monitoring, and firmware upgrades.
Key Features :
- 24 x Gigabit Ethernet Ports
- 2 x 10G SFP+ Fiber Ports
- 2 x 10GBase-T Copper Ports
- 128 Gbps Bandwidth
- 8K Maximum Mac Address Entries
- 512 Multicast Groups
- Up to 9K Jumbo Frame Support
- Supports Up to 256 VLANs
- 40 dBA Acoustic Noise
- 278,559 MTBF Hours
Specifications :
| Inputs/Outputs |
24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10Gb Ethernet (RJ45)
2 x 10Gb SFP+ |
| Layer Services Supported |
Layer 3 Support |
| Supported Protocols |
Auto-VoIP
IGMP Snooping
IPv6
Link Aggregation |
| Queuing |
Deficit Weighted Round Robin (DWRR), Strict Priority |
| Transmission Method |
Store-and-Forward |
| Jumbo Frames Support |
9,000 Bytes |
| MAC Address Table Size |
16K |
| Multicast Groups |
512 |
Security
| Security Features |
DHCP Snooping
Storm Control |
| Access Control List |
100 |
| Static Routes |
32 |
Standards
| Supported IEEE Standards |
802.1ab, 802.1p, 802.1qat, 802.1qav, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3an, 802.3i, 802.3q, 802.3u, 802.3x, 802.3z |
Performance
| Latency |
4 to 11 µs |
| Switching Bandwidth |
128 Gb/s |
| Priority Queues |
8 |
Electrical
| Power Draw |
28.18 W (Active) |
