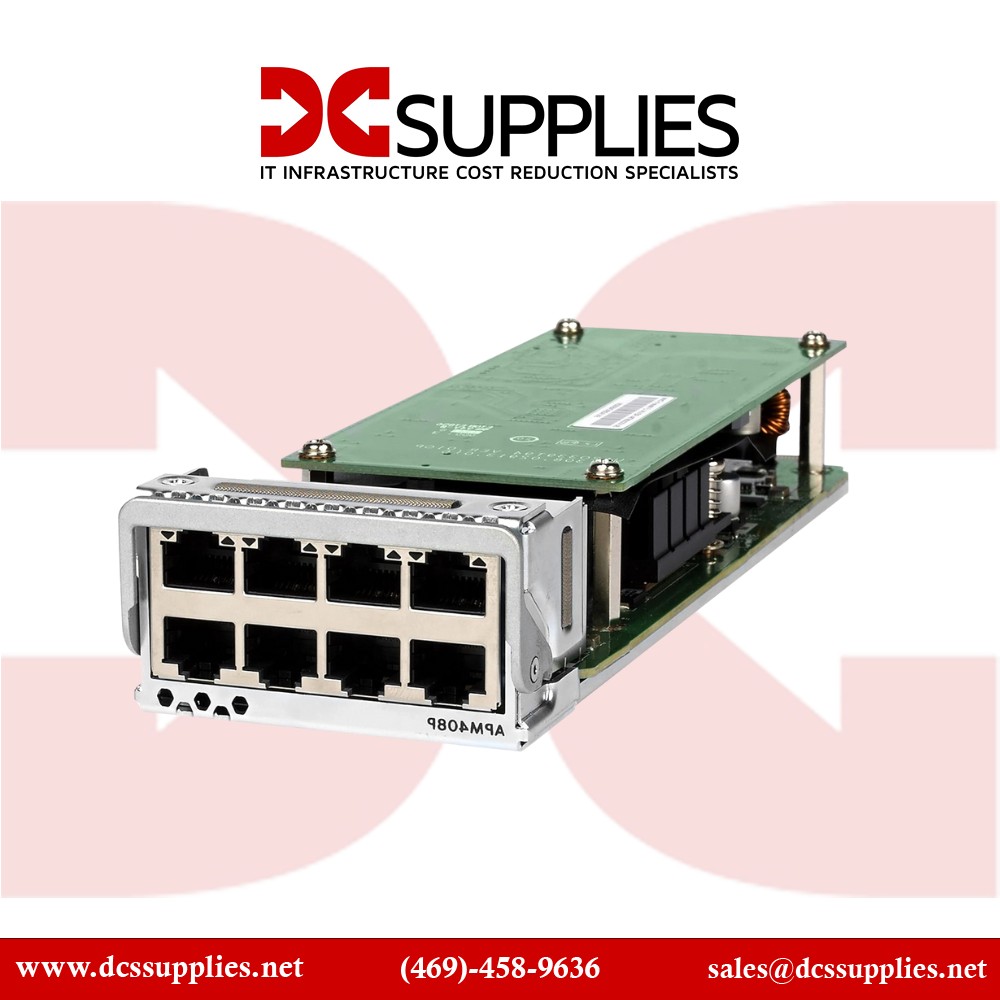

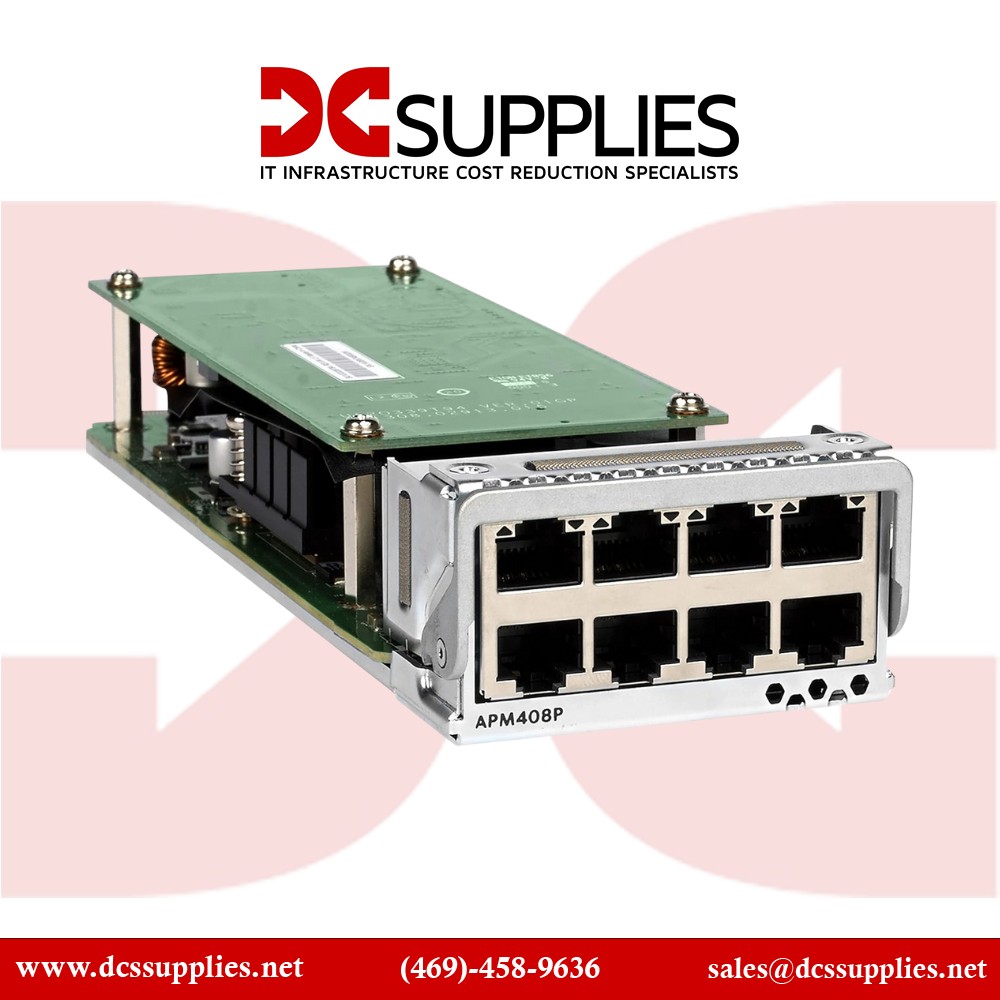

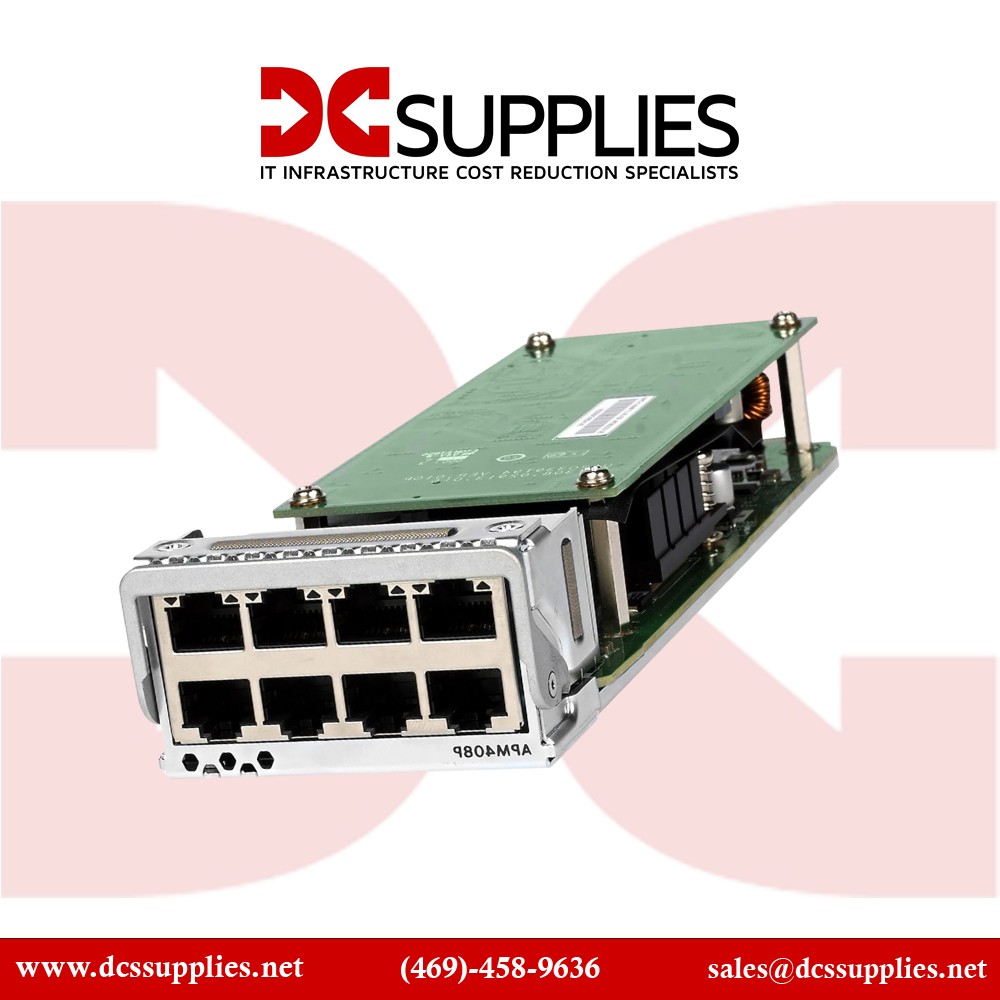

NETGEAR APM408P-10000S 8 x 100M/1G/2.5G/5G/10GBASE-T PoE+ Port Card for M4300-96X View larger

Netgear APM408P-10000S 8-Port 10G Port Card for M4300-96X Expansion Module

New

8-port 10GBASE-T PoE+ port card
×




  • New

Detailed Specifications

NETGEAR APM408P-10000S – 8-Port 10G PoE Port Card

Overview :

APM408P-10000S is an 8-port 10GBASE-T PoE+ port card for field engineers deploying the NETGEAR M4300-96X modular switch; it delivers multi-gig copper connectivity and PoE power for edge devices. The card provides auto-sensing 100M/1G/2.5G/5G/10G links on eight RJ-45 ports and implements IEEE 802.3at/af power protocols. Install it in M4300 chassis slots intended for PoE to supply powered devices at the network edge, AV-over-IP, or server uplinks. Managed and monitored via M4300 firmware (CLI/Web/SNMP) as part of the M4300 platform.

Key Features :

  • Eight 10GBASE-T multi-gig RJ-45 ports (100M–10G)

  • PoE+ (IEEE 802.3at/af) usable when in slots 1–6

  • Hot-swappable module for M4300-96X modular chassis

  • Module power draw 38W; fits Cat6/Cat6a for 10G links

Specifications :

FieldValue
Brand Netgear
Part Number APM408P-10000S
Product Type Expansion Module / Port Card
Number of Ports 8
Port Type / Connector RJ-45, 1/2.5/5/10GBASE-T
Ethernet Speeds Supported 100 Mb/s, 1 Gb/s, 2.5 Gb/s, 5 Gb/s, 10 Gb/s
PoE Standard IEEE 802.3at (PoE+)
Max PoE Power per Port 30 W
Card Power Consumption ~38 W (no PoE load)
Hot-Swappable Yes
PoE Slot Limitation PoE available only when installed in chassis slots 1 through 6
Management Interfaces Inherit chassis management (CLI, SNMP, web GUI)
Weight ~430 g
