Detailed Specifications

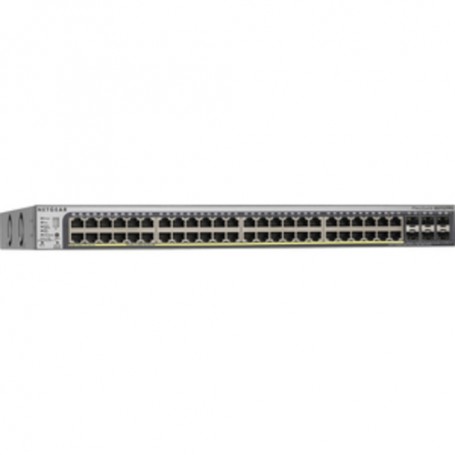

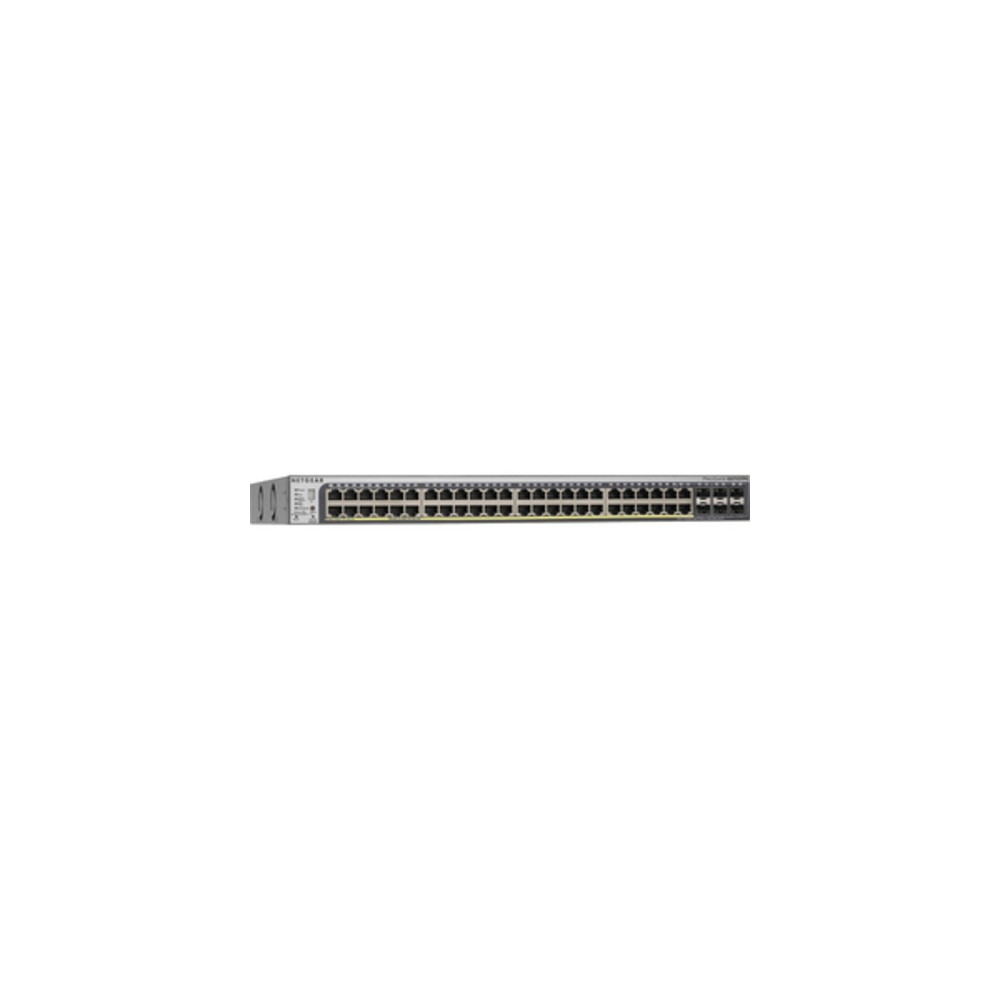

Netgear ProSafe GS752TPS Gigabit Stackable Smart Switch - 46 Ports - Manageable - 2 Layer Supported
Enhanced Scalability and Network Convergence for Growing BusinessesThe ProSafe Gigabit Stackable Smart Switch family is unique in delivering the scalability, reliability, and performance growing small and medium-sized businesses need in an affordable and easy-to-manage package. The NETGEAR's Second Generation of these Stackable Smart Switches consists of 4 models in 28/52-port configuration with or without PoE option. They come with more port density and a total of 6 SFP ports for fiber connectivity. Among them, 2 are shared, and the other 4 are dedicated for either stacking or uplinks. This new generation of Stackable Smart Switches offers more flexibility and scalability that will make it easier and non-interruptive for growing businesses to expand their network capacity.
| Interfaces/Ports |
|---|
| Stack Port: |
Yes |
| Token Ring Port: |
No |
| Number of PoE (RJ-45) Ports: |
40 |
| Modular: |
No |
| Uplink Port: |
Yes |
| LRE Port: |
No |
| Total Number of Network Ports: |
46 |
| Management Port: |
No |
| Number of PoE+ (RJ-45) Ports: |
8 |
| USB: |
No |
| Bypass: |
No |
| Power Description |
|---|
| Input Voltage: |
110 V AC |
| PoE (RJ-45) Port: |
Yes |
| Power Source: |
Power Supply |
| Input Voltage: |
220 V AC |
| Warranty |
|---|
| Limited Warranty: |
Lifetime |
| General Information |
|---|
| Manufacturer Part Number: |
GS752TPSB-100NAS |
| Manufacturer Website Address: |
http://www.netgear.com |
| Product Model: |
GS752TPS |
| Product Line: |
ProSafe |
| Manufacturer: |
Netgear, Inc |
| Product Type: |
Ethernet Switch |
| Product Name: |
ProSafe GS752TPS Gigabit Stackable Smart Switch |
| Brand Name: |
Netgear |
| Miscellaneous |
|---|
| Certifications & Standards: |
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3az
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3af
- IEEE 802.3at
- CE mark, commercial
- FCC Part 15 Class A
- VCCI Class A
- EN 55022 (CISPR 22)
- EN 55024 (CISPR 24)
- C-Tick
- CCC
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
WEEE |
| Package Contents: |
- ProSafe GS752TPS Gigabit Stackable Smart Switch
- 1 x 2.5 G SFP Direct Attach Cable for Stacking
- Rubber Footpads
- Power Cord
- Rack-Mount Kit
- Resource CD Installation Guide
- Warranty/Support Information Card
|
| Environmental Certification: |
RoHS |
| Memory |
|---|
| Flash Memory: |
32 MB |
| Memory Technology: |
DDR SDRAM |
| Standard Memory: |
128 MB |
| Management & Protocols |
|---|
| Management: |
- Web Based Management
- SNMP v1, v2c, v3
- RMON
- DHCP
- VLAN
|
| Manageable: |
Yes |
| Physical Characteristics |
|---|
| Height: |
1.7" |
| Weight (Approximate): |
12.08 lb |
| Form Factor: |
Desktop |
| Depth: |
12.2" |
| Width: |
17.3" |
| Form Factor: |
Rack-mountable |
| Network & Communication |
|---|
| Layer Supported: |
2 |
| Media & Performance |
|---|
| Media Type Supported: |
Twisted Pair |
| Twisted Pair Cable Standard: |
Category 5 |
| Ethernet Technology: |
Gigabit Ethernet |
| Network Technology: |
10/100/1000Base-T |
| I/O Expansions |
|---|
| Shared SFP Slot: |
Yes |
| Number of SFP Slots: |
6 |
| Expansion Slot Type: |
SFP |
| Number of Total Expansion Slots: |
6 |
| Basic |
|---|
| Product Family: |
ProSafe |
| Stack Port: |
Yes |
| Product Type: |
Ethernet Switch |
| Form Factor: |
Rack-mountable |
|
Desktop |
| Network Technology: |
10/100/1000Base-T |
| Manageable: |
Yes |
| Brand Name: |
Netgear |
| Ethernet Technology: |
Gigabit Ethernet |
| PoE (RJ-45) Port: |
Yes |
| Total Number of Network Ports: |
46 |
| Media Type Supported: |
Twisted Pair |
| Layer Supported: |
2 |
| Number of Total Expansion Slots: |
6 |
| Power Source: |
Power Supply |
| Expansion Slot Type: |
SFP |
| Reliability |
|---|
| MTBF: |
206539 Hour |
