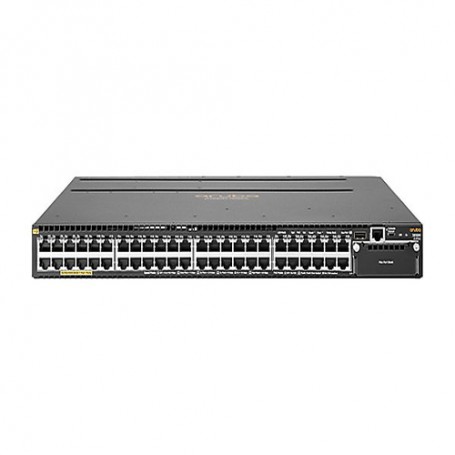

The Aruba JL429A 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, this advanced Layer 3 switch delivers a better application experience with low latency, virtualization with resilient stacking technology, JL429A and line rate 40GbE for plenty of back haul capacity. Full PoE+ provisioning available on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor. Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, Tunneled Node, robust QoS and policy-based routing are included with no software licensing. With support for OpenFlow, the Aruba JL429A 3810 is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Applications. The 3810 is easy to deploy and manage with advanced security and network management tools like Aruba JL429A ClearPass Policy Manager and Aruba JL429A AirWave. With support from Aruba JL429A Central, you can quickly set up remote branch sites with little or no IT support.
Benefits JL429A:
Advanced Layer 3 switch series with backplane stacking, low latency and resiliency
Security and network management tools with ClearPass Policy Manager, AirWave and Central support
HPE Smart Rate for high-speed multi-gigabit capacity and PoE+ power
Modular 10GbE and 40GbE uplinks for wireless aggregation
Optimized for innovative SDN applications with OpenFlow support
Technical Specifications JL429A:
Main Features JL429A
Switch
L3
managed
48 x 10/100/1000 (PoE+)
rack-mountable
PoE+
DC power
Capacity JL429A
IPv4 routing table entries
10000
IPv6 routing table entries
5000
Dimensions & Weight
17.4 in
17 in
1.7 in
13.62 lbs
Environmental Parameters
32 °F
113 °F
15 - 95% (non-condensing)
-40 °F
158 °F
15 - 90% (non-condensing)
Environmental Standards
Yes
Flash Memory JL429A
1 GB
Header JL429A
PC
English
United States
Aruba
1
Aruba
3810M 48G PoE+ 4SFP+ 1050W
Aruba
Interface Provided
1
Management
Serial (console)
48
PoE+
1000Base-T
RJ-45
Management
Micro-USB
Type B
Miscellaneous
Included
80 PLUS Silver, CAN/CSA C22.2 No. 60950, CISPR 22 Class A, CSA 22.2 No. 60950-1, EN 60825, EN 60950, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2:2006+A1:2009+A2:2009, EN 62479:2010, EN55022, EN55022:2010, EN55024:2010, EN61000-3-3:2008, FCC Class A certified, IEC 60825, IEC 60825-1:2007, IEC 60950, IEC 60950-1:2005 Second Edition, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, Laser Class 1, UL 60950, UL 60950-1, VCCI Class A
Access Control List (ACL) support, ARP support, Class of Service (CoS), Device Link Detection Protocol (DLDP) support, Dynamic VLAN Support (GVRP), Internet Control Message Protocol (ICMP), Management Information Base (MIB), Multiple VLAN Registration Protocol (MVRP), OpenFlow support, Per-VLAN Spanning Tree (PVST), Quality of Service (QoS), sFlow v5, Spanning Tree Protocol (STP) support, Type of Service (ToS), Uni-Directional Link Detection (UDLD)
