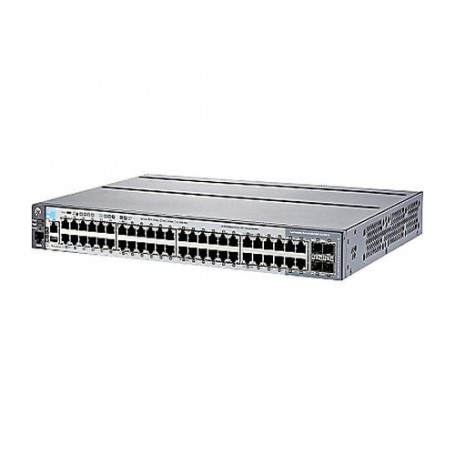

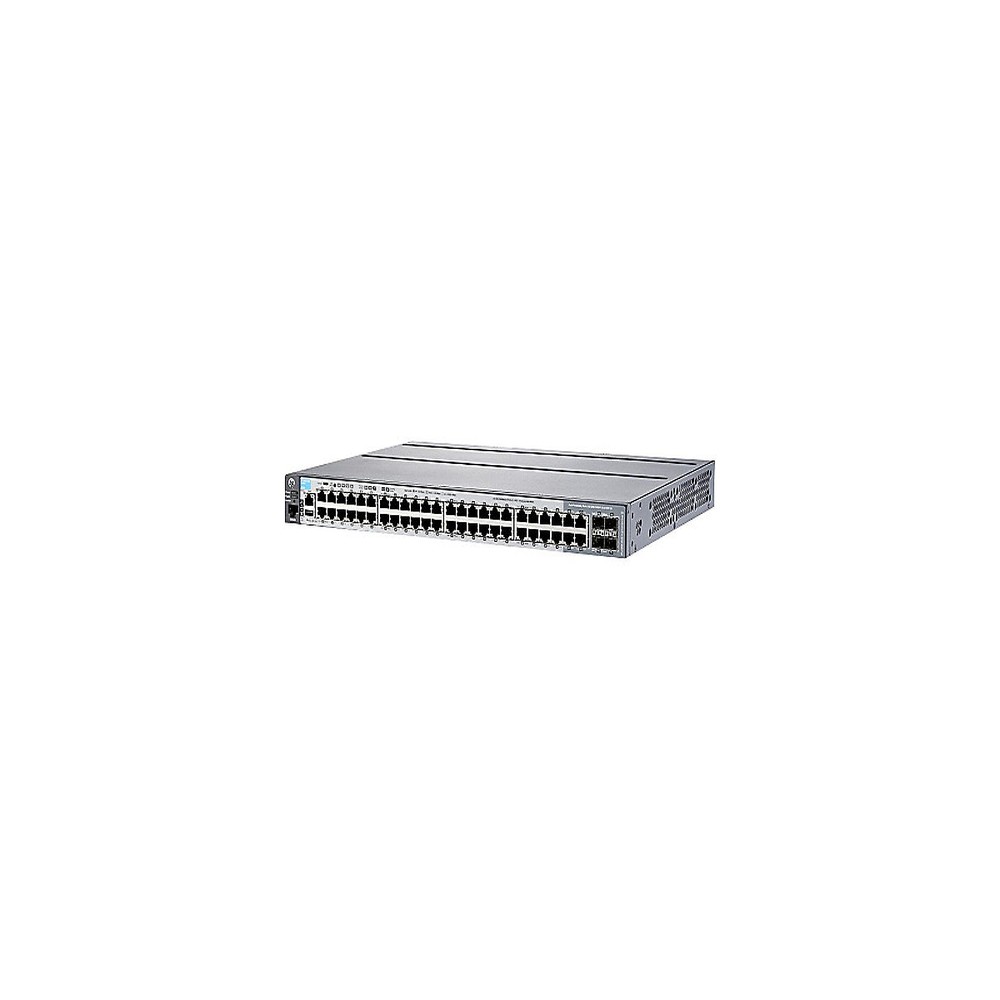

HPE Aruba 2920-48G - switch - 48 ports - managed - rack-mountable View larger

HPE Aruba J9728A 2920-48G non-PoE 48 ports Managed Rack Mountable

J9728A

Refurbished

In Stock

HPE Aruba J9728A 2920-48G non-PoE 48 ports Managed Rack Mountable

×




HP, HP Aruba, HPE Switch, HP Switching, HP networking swtich, Aruba, J9728A, HP J9728A, HPE J9728A, HP Aruba J9728A, HPE Aruba 2920-48G - switch - 48, 2920 J9728A, 48G J9728A, NON POE J9728A, 48 Ports J9728A, Managed J9728A, Rack J9728A, Mountable J9728A, Hpe 48Ports J9728A, Hpe POE J9728A, Hpe 2920 J9728A, HPE 48G J9728A, Hpe Managed J9728A, Hpe Rack Mountable J9728A, J9728A access, J9728A review, J9728A manual

$360.00

Detailed Specifications

HPE Aruba J9728A 2920-48G non-PoE 48 ports Managed Rack Mountable

Overview:

The Aruba J9728A 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB, and branch office networks. These Layer 3 switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba J9728A AirWave and cloud-based Aruba Central. J9728A 2920 supports modular stacking, 10GbE, RIP and Access OSPF routing, Tunneled node, PoE+, ACLs, sFlow, robust QoS, and IPv6. It is ready for the software-defined network with REST APIs and OpenFlow support. The Aruba J9728A 2920 is the end of the sale.
The HPE 2920 Switch Series consists of five switches: the HPE 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HPE 2920-48G and 2920-48G-PoE+ and 2920-48G 740W PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity. In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking. Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the HPE 2920 Switch Series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks.
Quality of Service (QoS)
Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues

Connectivity
Flexible 10 Gb/s Ethernet connectivity: up to four optional 10-Gigabit ports (SFP+ and/or 10GBASE-T)

Performance
Energy-efficient design: High-efficiency power supplies: 80 PLUS Silver Certified power supply increases power savings. Energy-efficient Ethernet (EEE) support: reduces power consumption in accordance with IEEE 802.3az.

Software-defined networking
OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths

Convergence
• IP multicast snooping and data-driven IGMP: automatically prevent flooding of IP multicast traffic

Resiliency and high availability
IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w

Management
• SNMPv1, v2, and v3: provides complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption

Main Features J9728A

  • Switch J9728A
  • managed
  • 44 x 10/100/1000 + 4 x combo Gigabit SFP
  • rack-mountable

J9728A Technical Specifications

  • Environmental Parameters J9728A

  • 32 °F J9728A
  • 131 °F
  • 15 - 95% (non-condensing)
  • Header J9728A

  • PC J9728A
  • English
  • United States
  • Aruba
  • 1
  • Aruba
  • 2920-48G
  • Aruba J9728A
  • Interface Provided J9728A

  • Ethernet 10Base-T/100Base-TX/1000Base-T
  • 48
  • RJ-45 J9728A
  • 1
  • Management (RS-232)
  • RJ-45
  • 4
  • SFP (mini-GBIC)
  • Management (mini-USB)
  • Type B
  • Miscellaneous J9728A

  • C-Tick, CAN/CSA C22.2 No. 60950-1-07, CISPR 24, EN 60825-1, EN55022 Class A, EN55024, FCC Part 15 B, GOST, ICES-003 Class A, IEC 60825-1, IEC 60950-1 Second Edition, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, VCCI Class A
  • RADIUS
  • Networking J9728A

  • Switch J9728A
  • Wired
  • CLI, RMON 1, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP
  • IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • 48 J9728A
  • Class of Service (CoS), DoS attack prevention, Full duplex mode, Half duplex mode, IPv6 support
  • RIP, Static IP routing
  • 16000 entries
  • Stackable
  • Network hubs and switches
  • PoE+
  • Layer 3
  • Yes
  • Rack-mountable J9728A
  • Gigabit Ethernet
  • Power Device J9728A

  • 50/60 Hz
  • AC 120/230 V
  • Internal power supply
  • Processor J9728A

  • 1
  • ARM
  • 625 MHz
  • Slot Provided J9728A

  • Expansion slot
  • 2
  • 2
  • Stacking Module slot
  • 1
  • 1
  • Dimensions & Weight J9728A

  • 17.4 in
  • 13.2 in
  • 1.7 in
  • 11.95 lbs
  • Service & Support J9728A

  • Limited lifetime warranty
  • Flash Memory J9728A

  • 1 GB
  • Performance J9728A

  • Switching capacity
  • 176 Gbps
  • Throughput
  • 130.9 Mpps
  • Ports J9728A

  • 44
  • 10/100/1000 J9728A
  • Ports (2nd) J9728A

  • 4
  • Combo Gigabit SFP
  •  J9728A RAM

  • 512 MB
  • SDRAM
