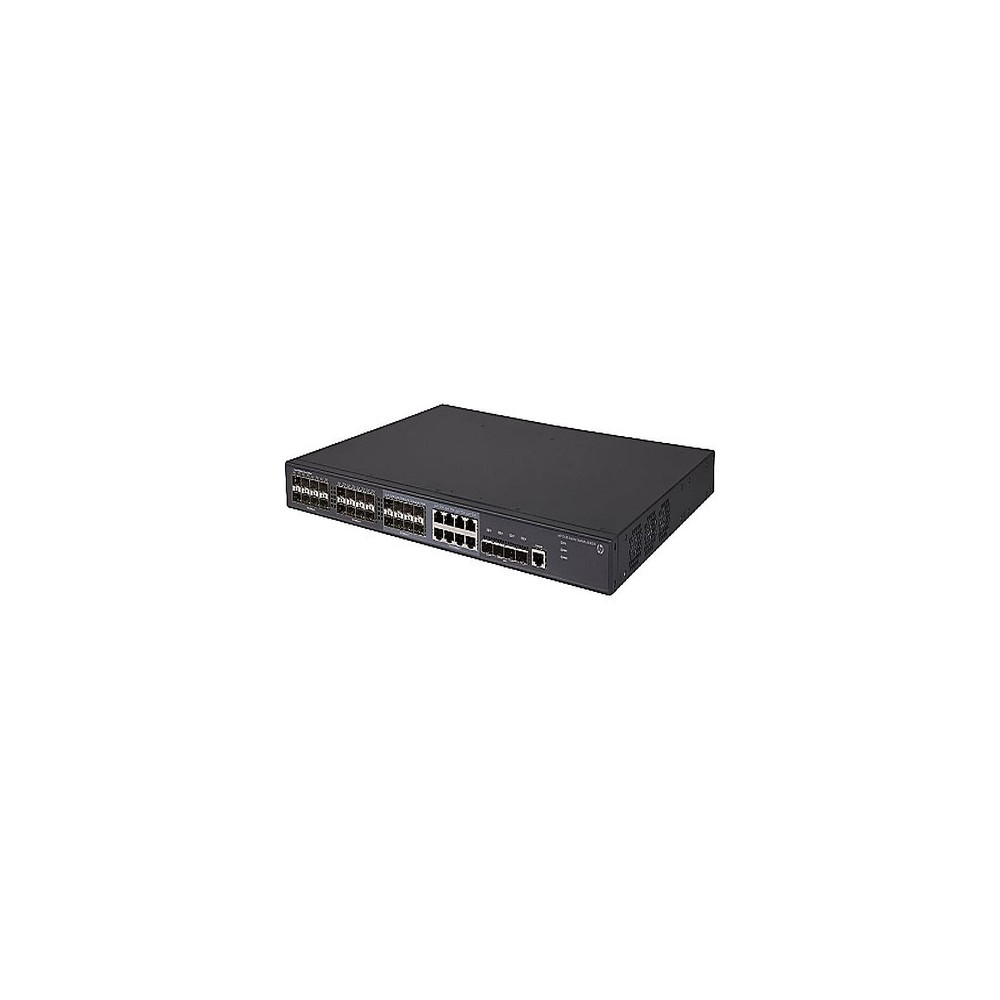

HPE 5130-24G-SFP-4SFP+ EI - switch - 24 ports - managed - rack-mountable View larger

HPE JG933A 24G-SFP-4SFP EI - switch - 24 ports - managed - rack-mountable

JG933A

New

In Stock

HPE JG933A 24G-SFP-4SFP EI - switch - 24 ports - managed - rack-mountable

×




HP, HPE 5130-24G, HPE 5130-24G switch, HPE 5130-24ports switch, HPE JG933A, HP JG933A, JG933A, HPE Aruba 5130-24G, JG933A access, JG933A datasheetJG933A manual, JG933A review, HPE JG933A 24G, JG933A 24G-SFP

$4,452.00

Detailed Specifications

HPE JG933A 5130-24G-SFP-4SFP+ EI - switch - 24 ports - managed - rack-mountable

The HPE JG933A 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise class QoS and security, Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. The 5130 EI Switch Series can be managed with HPE JG933A Intelligent Management Center (IMC) for a single view of your entire network.

HPE JG933A 5130-24G-SFP-4SFP+ EI - switch - 24 ports - managed - rack-mountable

The HPE JG933A FlexNetwork 5130 EI Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) interfaces.

Unique JG933A Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers.

High availability, JG933A simplified management, and comprehensive security control policies are among the key features that distinguish this series.

Technical Specifications JG933A

Main Features

  • Switch
  • L3
  • managed
  • 24 x Gigabit SFP + 8 x shared 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
  • rack-mountable
  • Environmental Parameters

  • 10 - 90% (non-condensing)
  • 5 - 95% (non-condensing)
  • 113 °F
  • 158 °F
  • 32 °F
  • -40 °F
  • Header

  • HPE
  • PC
  • Aruba Instant AP
  • 5130-24G-SFP-4SFP+ EI
  • 1
  • HPE
  • Interface Provided

  • Management
  • 1
  • Serial (console)
  • RJ-45
  • 8
  • 1000Base-T
  • SFP
  • 24
  • 1000Base-X
  • SFP+
  • 4
  • Gigabit / 10Gbit LAN
  • Miscellaneous

  • HWTACACS, RADIUS, Secure Shell v.2 (SSH2), TACACS+
  • Gray
  • ANATEL, ANSI C63.4-2009, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, EMC, EN 300 386 V1.6.1, EN 300386, EN 60825-1, EN 60950-1, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2008, EN 61000-4-11:2004, EN 61000-4-29, EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2009, EN55022:2010 Class A, EN55024, FCC CFR47 Part 15, FCC Class A certified, FDA, IEC 60950-1, IEC 61000-4-3:2006, NOM, RoHS, UL 60950-1, VCCI V-3 Class A ITE, VCCI V-4, WEEE
  • SSL
  • 1
  • 52.79 year(s)
  • Networking

  • Layer 3
  • IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), Device Link Detection Protocol (DLDP) support, DHCP protection, DHCP relay, DHCP support, Dynamic ARP protection, Endpoint Admission Defense (EAD), Full duplex mode, Generic Attribute Registration Protocol (GARP), Half duplex mode, IGMP snooping, Intelligent Resilient Framework Technology (IRF), IPv6 support, Jumbo Frames support, LLDP support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Spanning Tree Plus (PVST+), Port isolation, Port Security, Quality of Service (QoS), Rapid Ring Protection Protocol (RRPP) support, Rapid Spanning Tree Protocol (RSTP) support, sFlow, STP Root Guard, Strict Priority Queuing (SPQ), Tagged VLAN, VLAN support, Weighted Round Robin (WRR) queuing
  • Rack-mountable
  • 9216 bytes
  • 16384 entries
  • Yes
  • 24
  • CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3
  • Static IPv4 routing, Static IPv6 routing
  • Stackable
  • Network hubs and switches
  • Gigabit Ethernet
  • Switch
  • Power Device

  • 0
  • 2
  • 60 Watt
  • Internal power supply
  • Service

  • 3 years
  • Phone consulting
  • Technical support
  • Lifetime
  • Replacement
  • Limited warranty
  • Service & Support Details

  • Next business day
  • Dimensions & Weight

  • 14.2 in
  • 1.7 in
  • 17.64 lbs
  • 17.3 in
  • Service & Support

  • Limited lifetime warranty
  • Capacity

  • IPv4 routing table entries
  • 512
  • IPv6 routing table entries
  • 256
  • Flash Memory

  • 128 MB
  • Performance

  • Routing/switching capacity
  • 128 Gbps
  • Throughput
  • 96 Mpps
  • Ports

  • 24
  • Gigabit SFP
  • Ports (2nd)

  • 8
  • Shared 10/100/1000
  • Ports (3rd)

  • 4
  • 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
  • RAM

  • 1 GB
  • SDRAM
