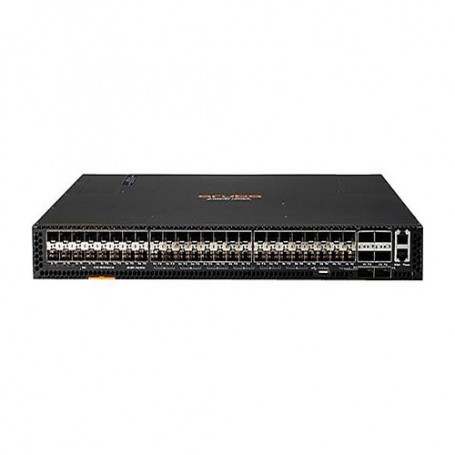

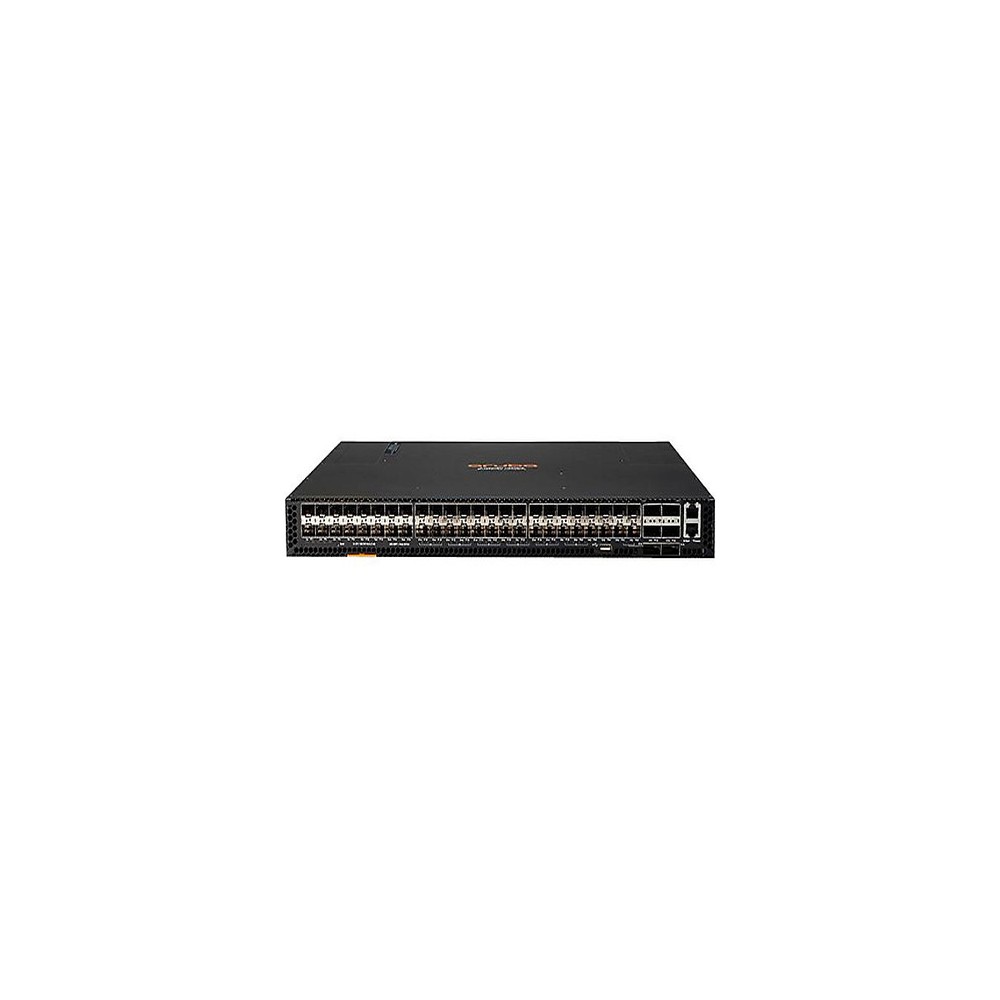

HPE Aruba 8320 - switch - 48 ports - managed - rack-mountable - with 2 x Aruba View larger

HPE JL479A Aruba 8320 - switch - 48 ports - managed - rack-mountable

JL479A

New

In Stock

HPE JL479A Aruba 8320 - switch - 48 ports - managed - rack-mountable

×




HP, HPE Aruba, HP Aruba, HPE Switch, HP Switching, HP networking swtich, HPE Switching, JL479A, HP JL479A, HPE JL479A, HPE Aruba 8320, HPE Aruba 8320 48G, HPE Aruba 8320 48 ports switch, JL479A access, JL479A review, JL479A manual, JL479A datasheet, HPE JL479A Aruba, JL479A Aruba 8320

$20,590.00

Detailed Specifications

HPE JL479A Aruba 8320 - switch - 48 ports - managed - rack-mountable

Overview JL479A:

The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba JL479A 8320 Switch Series, a campus core and aggregation switch, is a game-changing solution that offers an innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba JL479A 8320 is based on Aruba JL479AOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in Aruba JL479AOS-CX are its micro-services style modular architecture, REST APIs, Python scripting capabilities and the Aruba JL479A Network Analytics Engine. The Aruba JL479A 8320 Switch Series provides line rate 10GbE/40GbE in a compact 1U form factor and together with the modular Aruba JL479A 8400 Switch, rounds out the Aruba JL479A Mobile First switching portfolio with an enterprise core and aggregation solution.

What's new JL479A

  • High-performance Aruba campus core and aggregation switch with 2.5 Tbps switching capacity.
  • ArubaOS-CX automates using REST APIs and Python scripts.
  • Monitor and troubleshoot with Aruba Network Analytics Engine.
  • Compact 1U switch with 48 ports of 10GbE and 6 ports of 40GbE.
  • Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.

Features JL479A

Game-changing Business Agility JL479A

The Aruba JL479A 8320 Switch Series is a campus core and aggregation switch solution with an innovative and powerful approach to dealing with the new applications, security and scalability demands of the mobile, cloud and IoT era.

Fully programmable with ArubaOS-CX, it brings automation and visibility and helps troubleshoot via simple scripting.

Aruba JL479A Network Analytics Engine provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple python agents and REST APIs.

Offers high-speed fully distributed architecture with 2.5 Tbps switching capacity for always on networking.

Provides robust security and QoS with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, and VRF.

Modern Software System Simplifies and Automates JL479A

The Aruba JL479A 8320 Switch Series is based on the new ArubaOS-CX, a modern software system for the core that automates and simplifies many critical and complex network tasks.

The built-in time series database enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security and performance bottlenecks.

It includes stability, independent monitoring and restart of individual software modules, and enhanced software process serviceability functions. And it allows individual software modules to be upgraded for higher availability.

High Performance JL479A

The Aruba JL479A 8320 Switch Series includes a high-speed, fully distributed architecture and provides up to 2.5 Tbps switching capacity to meet the demands and bandwidth-intensive applications today and in the future.

The compact 1U switch delivers line rate 10GbE/40GbE connectivity and very low latency for support of full Internet routes.

Main Features JL479A

  • Switch
  • L3
  • managed
  • 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+
  • rack-mountable
  • with 2 x Aruba X371 400W AC Power Supply
  • 5 x Aruba X721 Front-to-Back Fan
  • Aruba X472 2-post Rack Kit

Technical Specifications JL479A

  • Capacity

  • Virtual interfaces (VLANs) per port for 802.1q
  • 4096
  • Dimensions & Weight

  • 17.4 in
  • 19.9 in
  • 1.7 in
  • 20.72 lbs
  • Environmental Parameters

  • 32 °F
  • 104 °F
  • 5 - 95% (non-condensing)
  • -40 °F
  • 158 °F
  • 5 - 95% (non-condensing)
  • Header

  • English
  • United States
  • Aruba
  • 1
  • Aruba
  • 8320
  • 2 x Aruba X371 400W AC Power Supply, 5 x Aruba X721 Front-to-Back Fan, Aruba X472 2-post Rack Kit
  • Aruba
  • Interface Provided

  • 1
  • Serial
  • RJ-45
  • 48
  • 10Gbit LAN
  • SFP+
  • 6
  • 40Gbit LAN
  • QSFP+
  • Console (micro-USB)
  • Miscellaneous

  • Included
  • AS/NZS, CISPR 24, CISPR 32 Class A, CISPR 32:2015 Class A, CNS 13438, CSA 22.2 No. 60950-1, Directive 2014/35/EU, EN 50581:2012, EN 55032:2015, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN55024:2010, FCC CFR47 Part 15 A, ICES-003 issue 5, IEC 60825-1:2007 Class 1, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, RoHS, UL 60950-1, WEEE
  • RADIUS, Secure Shell v.2 (SSH2), TACACS+
  • 1
  • FIPS 140-2
  • Yes
  • Black
  • Networking

  • Switch
  • RMON, SFTP, SNMP, SNMP 2c, SNMP 3, TFTP
  • IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
  • 48
  • Access Control List (ACL) support, Bridge protocol data unit (BPDU), IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), Loopback, Multi-Chassis Link Aggregation (MLAG), Multiple Spanning Tree Protocol (MSTP) support, Packet storm protection, Protocol Independent Multicast (PIM), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Redundant hot swappable fans, sFlow, Spanning Tree Protocol (STP) support, Strict Priority (SP), Uni-Directional Link Detection (UDLD), VPN support
  • ECMP, GRE, IGMP, IGMPv2, IGMPv3, OSPF, Static IPv6 routing, VRRP
  • Network hubs and switches
  • Layer 3
  • Yes
  • Rack-mountable
  • 9KB
  • 10 Gigabit Ethernet
  • Performance

  • Forwarding performance
  • 1.905 Mpps
  • Switching capacity
  • 2.5 Tbps
  • Ports

  • 48
  • 10 Gigabit SFP+
  • Ports (2nd)

  • 6
  • 40 Gigabit QSFP+
  • Power Device

  • 50/60 Hz
  • 400 Watt
  • 2
  • 2
  • AC 120/230 V
  • Yes
  • 1+1
  • Internal power supply
  • Hot-plug
  • Service

  • Limited warranty
  • 5 years
  • Service & Support

  • 5 years warranty
