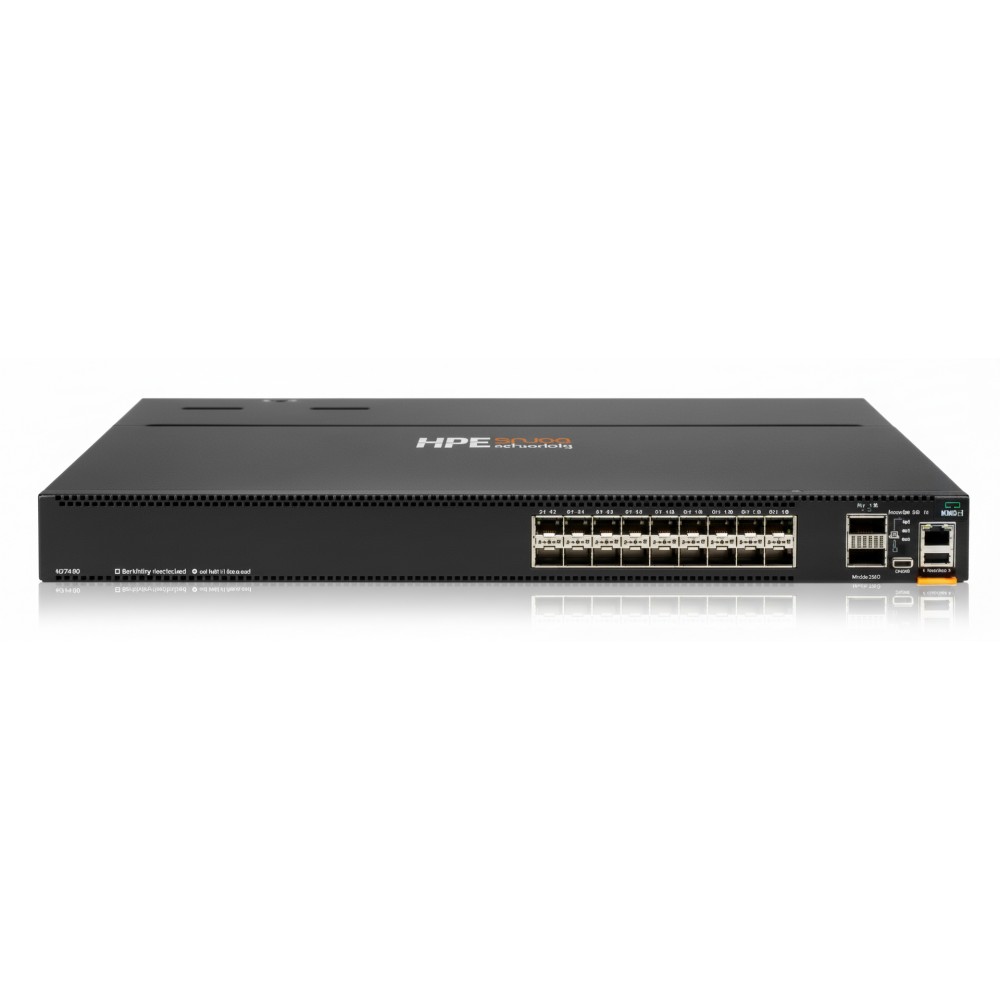

HPE Aruba JL702C CX 8360-16Y2C 16 ports Ethernet Switch

New

HPE Aruba JL702C CX 8360-16Y2C Ethernet Switch 16-Port...

×




  • New

Detailed Specifications

HPE JL702C

Aruba JL702C CX 8360‑16Y2C v2 Managed Switch – 16×25G SFP28 + 2×100G QSFP28, Layer 3

The HPE Aruba JL702C CX 8360‑16Y2C v2 is a compact yet powerful Layer 3 switch, offering 25GbE edge connectivity with 100GbE uplinks. Designed for enterprise campus cores, virtualized data centers, and spine-leaf deployments, it combines robust performance, advanced security, and programmable intelligence in a 1U rack form factor.

Features

Equipped with a mix of high-speed SFP28 and QSFP28 ports, the JL702C supports 1/10/25GbE client links and 40/100GbE uplinks. ArubaOS-CX’s modular, microservices architecture delivers full programmability, real-time telemetry via NAE, and seamless integrations via RESTful APIs and Python. VSX ensures control-plane redundancy with synchronized states across devices.

Advanced Options

Built for mission-critical environments, it features dual hot-pluggable power supplies and front-to-back airflow optimized fans. MACsec support bolsters security on critical links, while deep buffers and QoS capabilities optimize performance under loads.

Product Key Features

  •  16 × 1/10/25 GbE (SFP/SFP+/SFP28) + 2 × 40/100 GbE QSFP+/QSFP28 ports

  •  MACsec encryption capability on select SFP28 ports

  •  ArubaOS‑CX with embedded Network Analytics Engine (NAE), REST API, and Python scripting

  •  Virtual Switching Extension (VSX) for redundancy

  •  Dual hot‑swappable PSUs and 3 front‑to‑back fans

  •  High-performance: 4.8 Tbps switching, 2,678 Mpps forwarding

Reliability & Performance

Delivering 4.8 Tbps of non-blocking switching capacity and 2,678 Mpps throughput, the JL702C easily handles demanding workloads. Its modular hardware (dual PSUs, fans) supports continuous operation and quick serviceability. ArubaOS-CX's resilient software design and analytics tools ensure high uptime, visibility, and simplified operations .

Key Features :

  • 16 × SFP28 (25GbE client) + 2 × QSFP28 (40/100GbE uplink) ports

  • MACsec encryption on supported ports

  • ArubaOS‑CX with NAE, REST API, Python

  • VSX redundancy for dual control planes

  • Dual hot-swappable AC PSUs & 3 front-to-back fans

  • Layer 3 routing: BGP, OSPF, IS‑IS, VRF; VXLAN/EVPN-ready

  • Deep buffering, QoS, ECMP, multicast support

  • 1U, 19″ rack-mountable form factor

SpecificationDetails
Model Number JL702C
Product Type Layer 3 Managed Ethernet Switch
Client Ports 16 × 1/10/25 GbE (SFP/SFP+/SFP28)
Uplink Ports 2 × 40/100 GbE (QSFP+/QSFP28)
Switching Capacity 4.8 Tbps
Forwarding Rate 2,678 Mpps
MACsec Support Select SFP28 ports
Operating System ArubaOS‑CX
Management CLI, Web GUI, REST API, Python, SNMP, CLI console
Routing Protocols BGP, OSPF, IS‑IS, VRF, VXLAN, EVPN, ECMP
Redundancy VSX with dual control planes, dual PSUs, 3 fans
Cooling Front-to-back airflow
Rack Mount Yes, 1U
Dimensions (H×W×D) 1.7″ × 17.4″ × 16.0″ (44 × 442 × 406 mm)
Weight ~17 lb (7.7 kg)
Power Consumption (max) ~325 W
Input Power 100–240 VAC, 47–63 Hz
Operating Temp/Humidity 0–45 °C; non-condensing humidity
Compliance TAA, RoHS, CE, FCC
