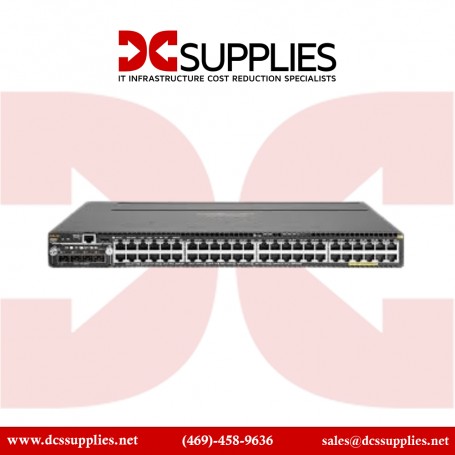

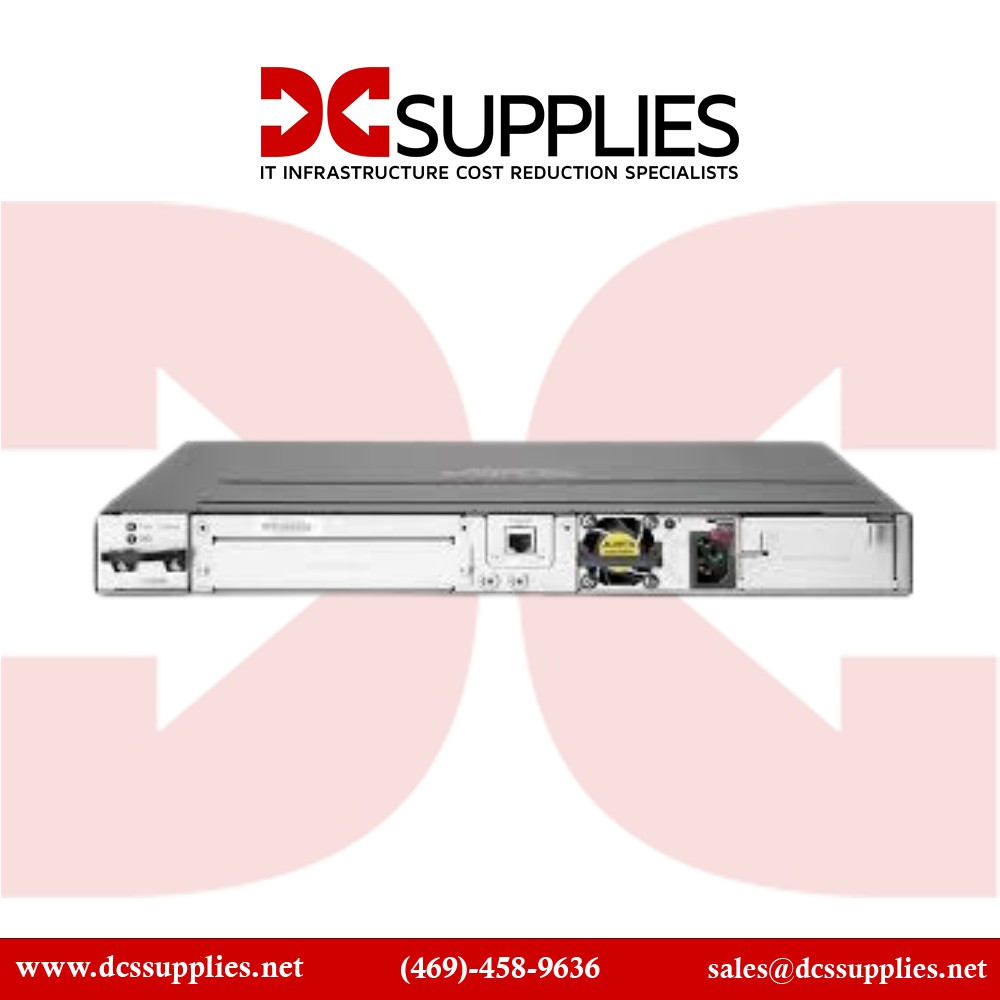

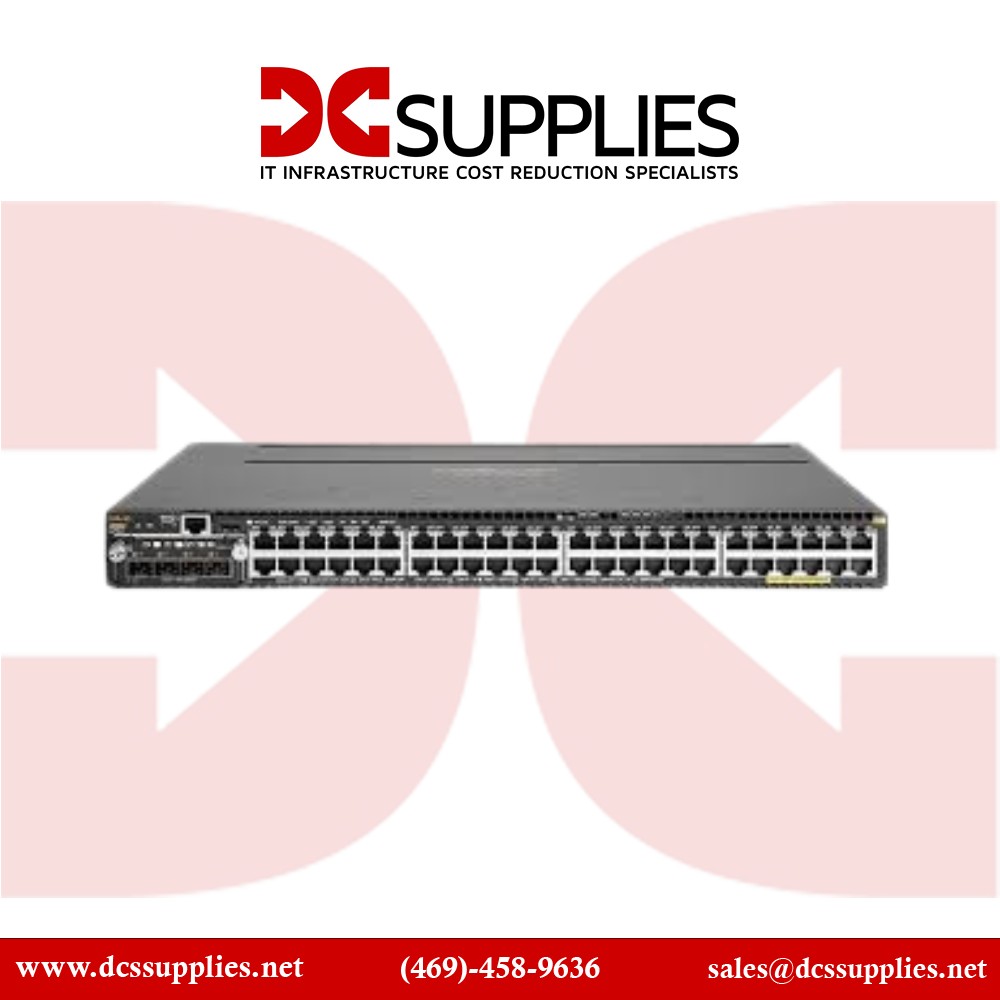

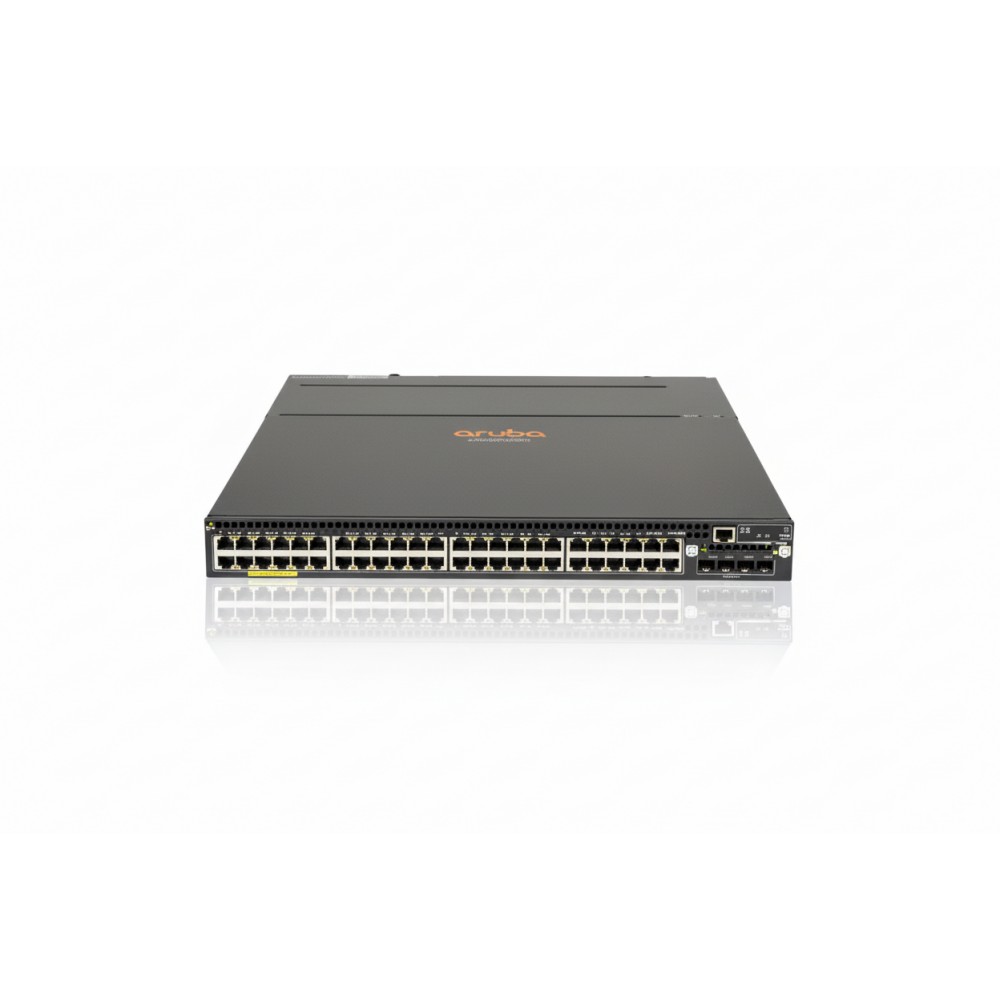

HPE Aruba JL429A 48-Port PoE 1050W Managed Ethernet Switch

New

In Stock

HPE Aruba JL429A is a 48-port PoE+ managed switch with 1050W power, offering scalable connectivity
×




$3,088.00

  • New

Detailed Specifications

HPE JL429A

Aruba 3810M 48‑Port PoE Switch 1050 W Managed Ethernet

The HPE Aruba JL429A is an enterprise-grade, rack‑mountable Layer 3 switch designed for dense PoE+ deployments such as wireless APs, IP cameras, and VoIP devices. With 48 high‑power ports and multi-gigabit uplinks, it's perfect for IT teams managing medium to large campus, branch, or enterprise networks requiring both power and high throughput.

Features :

Built on Aruba’s 3810M platform, the JL429A delivers full PoE+ across all 48 RJ‑45 ports, powered by a 1,050 W supply—ensuring enough current to support wireless APs, IP phones, security cameras, and other power-intensive edge devices. Four SFP+ 10 GbE uplinks plus stacking capabilities provide flexible expansion and aggregation, supporting SDN, virtualization, and high-speed backhaul for demanding environments.

Advanced Options :

Layer 3 routing with OSPF, BGP, VRRP, IPv6, and MA Csec on PoE ports enables secure, resilient connectivity—ideal for modern enterprise networks with zero-trust and encryption requirements . Integration with Aruba Clear Pass, Air Wave, and Aruba Central allows centralized policy, monitoring, and orchestration—plus programmable network automation via RESTful APIs and Open Flow support.

Product Key Features

  • 48 × 10/100/1000 Mbps PoE+ RJ‑45 ports with full power support

  • 4 × 10 GbE SFP+ uplink ports plus modular stacking slot

  • Robust 320 Gbps switching capacity and 190.5 Mpps forwarding rate

  • 1,050 W redundant, hot‑swappable AC power supply

  • Advanced Layer 3 routing: OSPF, BGP, VRRP, IPv6, MACsec on PoE ports

  • Integrates with Aruba Clear Pass, Air Wave, Aruba Central, SDN/REST APIs

Reliability & Performance :

Designed for 24×7 operation, the JL429A features redundant, hot-swappable power and fan modules to ensure maximum uptime. With a robust 320 Gbps switching capacity and low-latency architecture (≤ 2.8 µs for gigabit ports), it supports performance-sensitive applications like VoIP, video streaming, and rapid Wi‑Fi data bursts. It’s built to fit into existing data center racks and cooling environments as a standard 1U form factor, while hardware encryption (MACsec) and resilient stacking safeguard both security and scalability.

Key Features :

  • 48 × Gigabit PoE+ Ethernet ports

  • 4 × 10 GbE SFP+ uplinks + stacking slot

  • 320 Gbps switching capacity, 190.5 Mpps forwarding

  • Fully redundant hot-swappable 1,050 W PSU

  • Layer 3 routing and IPv6-ready

  • Aruba ClearPass, Air Wave, Aruba Central compatibility

  • MAC sec encryption, SDN/REST API programmable

Specifications :

SpecificationDetails
Model Number JL429A
Series Aruba 3810M
Type Layer 3 Managed Ethernet Switch
Ports 48 × 1 GbE RJ‑45 PoE+ (802.3af/at)
Uplink Ports 4 × 10 GbE SFP+, 1 stacking slot
PoE Power Budget 1050 W
Switching Capacity 320 Gbps
Packet Forwarding Rate 190.5 Mpps
Routing Protocols OSPF, BGP, RIP, VRRP, IPv6, static
MAC Address Table 64 K
Processor & Memory P2020 dual‑core 1.2 GHz, 4 GB DDR3, 1 GB SD
Dimensions (WxDxH) 44.25 × 43.13 × 4.39 cm (17.4 × 17 × 1.7 in), 1U
Weight ~7.23 kg (15.9 lb)
Power Supply 1050 W AC, hot‑swap 100–240 V
Fans Hot‑swappable fan tray
Management Interfaces CLI, Web, SNMP v1/2c/3, Telnet, SSH, OOB
Network Management Integration Aruba Central, ClearPass, AirWave
Security Features MACsec on PoE ports, ACLs, SSL, 802.1X
Environmental 0–45 °C, 15–95 % RH
Certifications FCC Class A, UL/IEC safety standards
