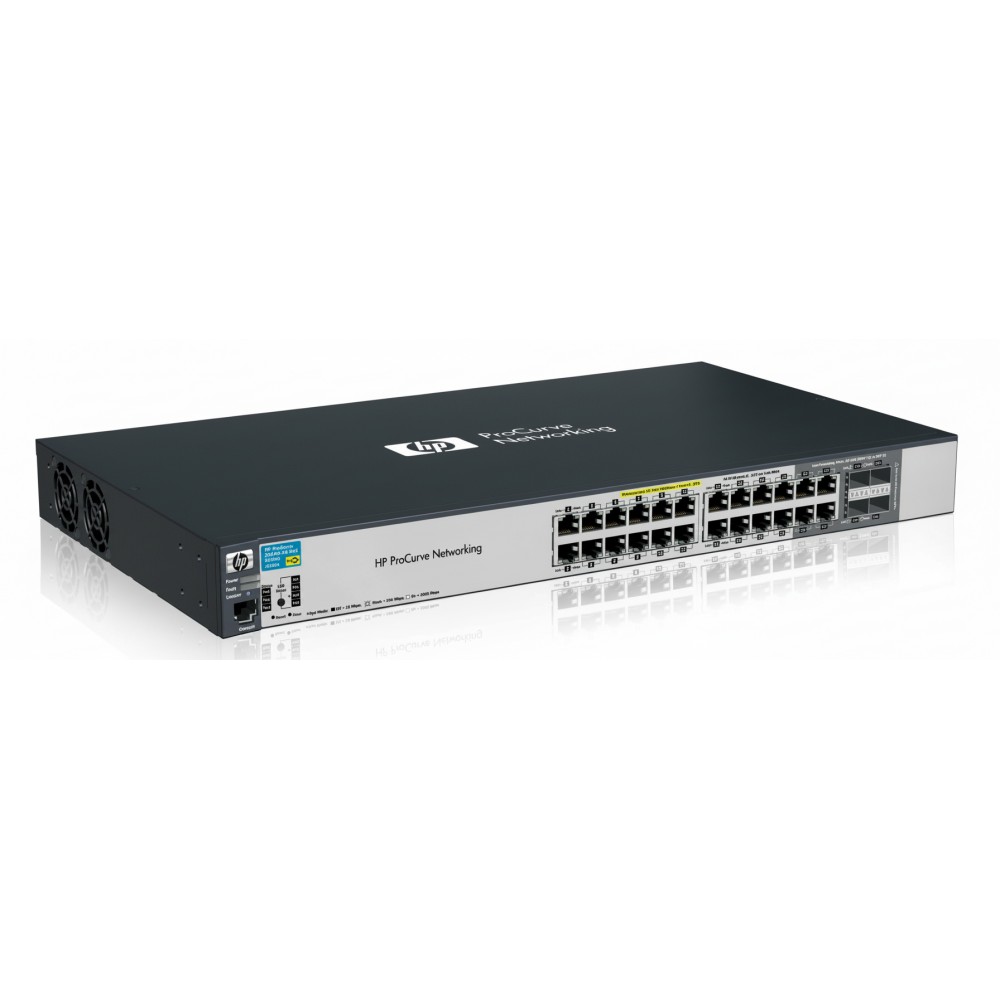

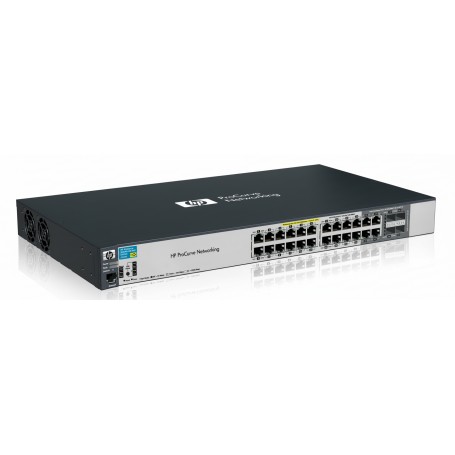

HP J9299A Procurve 2520G-24 port PoE Ethernet Switch View larger

HP J9299A ProCurve 2520G-24-PoE 24 Port Gigabit PoE Ethernet Switch

New

24‑Port Gigabit PoE Switch with 4 SFP Slots
×




  • New

Detailed Specifications

HP J9299A – 24‑Port Gigabit PoE Switch

Overview :

The HP J9299A is a fully‑managed Layer‑2 switch designed for network engineers deploying high‑density access connectivity with PoE support in SMB or enterprise branch environments. It provides 20 RJ‑45 autosensing 10/100/1000 Mbps PoE ports plus 4 dual‑personality ports that can operate as either RJ‑45 10/100/1000 PoE or SFP fibre slots, enabling mixed copper/fibre uplinks. It is suited for wiring‑closet or edge racks, supporting IP phones, wireless access points or camera feeds while maintaining full gigabit access throughput. The switch fits standard 19‑inch equipment racks and integrates with HP/Aruba network management tools, offering CLI, SNMPv2/v3 and GUI interfaces for configuration and monitoring.

Key Features :

  • Supports 20 gigabit PoE RJ‑45 ports + 4 dual‑personality ports

  • PoE budget rated at approximately 195 W total output

  • Managed via SNMPv2/v3, CLI and web GUI

  • Dual‑flash image and virtual stacking up to 16 units

  • Rack‑mountable 1U form‑factor, standard 19‑inch width

Specifications :

SpecificationDetail
Brand HP
Part Number J9299A
Product Type 24‑Port Gigabit Power‑over‑Ethernet Switch
Number of RJ‑45 Ports 20 autosensing 10/100/1000 Mb/s PoE ports
Dual‑Personality Ports 4 ports; each either RJ‑45 10/100/1000 PoE or 1 Gb SFP slot
Switching Capacity 48 Gbps switching capacity (24‑port full gig) {verified}
PoE Power Budget 195 Watts maximum (as listed for J9299A)
Dimensions (W×D×H) 17.44 in × 9.69 in × 1.75 in
Weight 7.21 lbs (≈3.27 kg)
Processor/Memory Freescale PowerPC 8313 @ 266 MHz; 32 MB flash; 128 MB DDR2 SDRAM
Operating Temp 0 °C to 45 °C (32 °F to 113 °F)
Mounting EIA‑standard 19‑inch rack (1U) or wall mount capable
Management Interfaces RJ‑45 console port; SNMP v2c/v3; Web GUI; CLI
Warranty Lifetime warranty (for duration of ownership in most regions)
