Ruckus ICX7150-48PF-4X10GR-RMT3 48-Port Managed Switch View larger
Previous Next

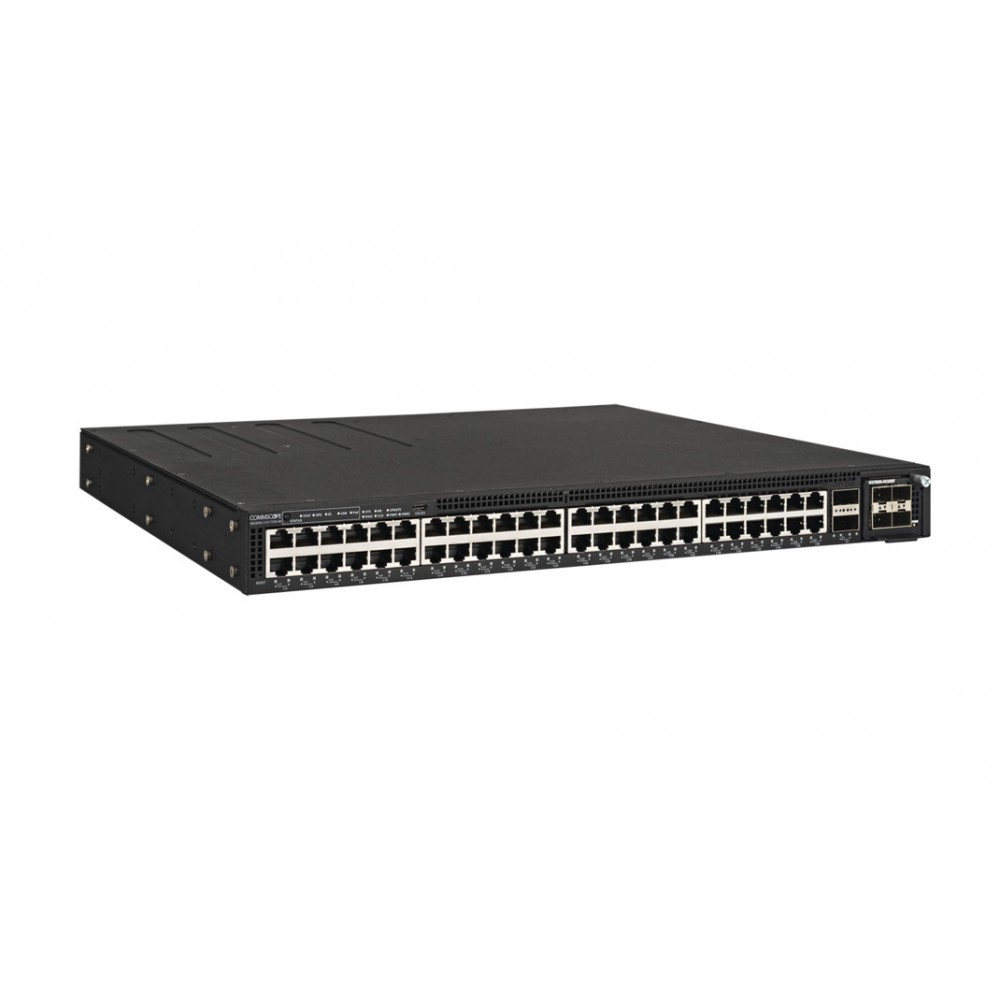

Ruckus ICX7150-48PF-4X10GR-RMT3 48-Port Managed Rack-Mountable Switch

New

Reliable, High-Performance Access Switching with PoE+ and 10G Uplinks
×




  • New

Detailed Specifications

Ruckus ICX7150-48PF-4X10GR-RMT3

48-Port Managed Rack-Mountable Switch with PoE+ Support

The Ruckus ICX7150-48PF-4X10GR-RMT3 is a rack-mountable, enterprise-class managed switch that provides 48 Gigabit Ethernet PoE+ ports and 4 x 10GbE SFP+ uplinks. Designed to power and connect next-generation Wi-Fi 6 access points, VoIP devices, cameras, and IoT endpoints, it combines scalability, performance, and reliability in a compact 1U form factor.

Expanded Overview :

The ICX7150-48PF-4X10GR-RMT3 belongs to the ICX 7150 family of switches, engineered for affordable enterprise networking. Its 48 PoE+ ports provide ample power delivery for edge devices, while the four 10G SFP+ uplinks enable smooth backbone integration and eliminate bottlenecks.

Designed for education, campus, branch, and enterprise environments, the switch supports advanced Layer 2/3 features including VLANs, static routing, and policy-based routing. With stacking support for up to 12 switches, IT administrators can scale networks efficiently while managing them as a single logical unit.

Its robust PoE budget supports demanding devices like Wi-Fi 6 APs, security cameras, and video conferencing systems. Flexible deployment is assured with redundant-capable power supplies and an industry-standard 1U rack-mount design for wiring closets or server rooms.

Product Highlights

  • 48 x Gigabit Ethernet RJ-45 ports with PoE+ (802.3af/at)
  • 4 x 10GbE SFP+ uplink ports for high-speed aggregation
  • Ample PoE budget for access points, IP phones, cameras, and IoT devices
  • Stackable design – up to 12 switches in one stack
  • Advanced L2/L3 enterprise switching – VLANs, static routing, PBR
  • 1U rack-mountable form factor
  • Energy-efficient, reliable, and scalable design
  • Managed via Web GUI, CLI, SNMP, Ruckus SmartZone, or ZoneDirector

Reliability & Performance :

The Ruckus ICX7150-48PF delivers non-blocking switching performance with a fabric capacity of approximately 176 Gbps, ensuring seamless data delivery even in high-demand environments. Advanced traffic management and QoS features optimize latency-sensitive applications like voice and video, while hot-swappable uplinks and optional redundant power supply support further enhance availability. Fully interoperable with Ruckus management systems, it integrates into Campus Fabric architectures, enabling simplified end-to-end wired and wireless management.

Key Features :

  • 48 x 10/100/1000 Mbps Ethernet ports with PoE+ support
  • 4 x 10GbE SFP+ uplinks for core/aggregation connectivity
  • PoE budget supports Wi-Fi 6 APs, VoIP, cameras, IoT devices
  • Stacking support – up to 12 switches for simplified management
  • L2/L3 enterprise-ready switching (VLANs, routing, RIP, OSPF-lite)
  • Carrier-grade QoS and security features
  • 1U rack-mountable; redundant capable PSU design
  • Integrated Campus Fabric support for unified management

Technical Specifications :

SpecificationDetails
Model Ruckus ICX7150-48PF-4X10GR-RMT3
Form Factor Rack-mountable (1U)
Ports 48 x 10/100/1000 Mbps Gigabit Ethernet RJ-45 PoE+
PoE Standard IEEE 802.3af/at (PoE+)
Uplink Ports 4 x 10GbE SFP+
Switching Capacity ~176 Gbps
Stacking Support Up to 12 switches in a stack
Layer Support Layer 2 / Layer 3 (static routing, RIP, OSPF-lite)
Power Supply Redundant-capable PSU
Management Web GUI, CLI, SNMP, Ruckus SmartZone, ZoneDirector
Applications Campus, enterprise edge, K-12, branch networks
