Detailed Specifications

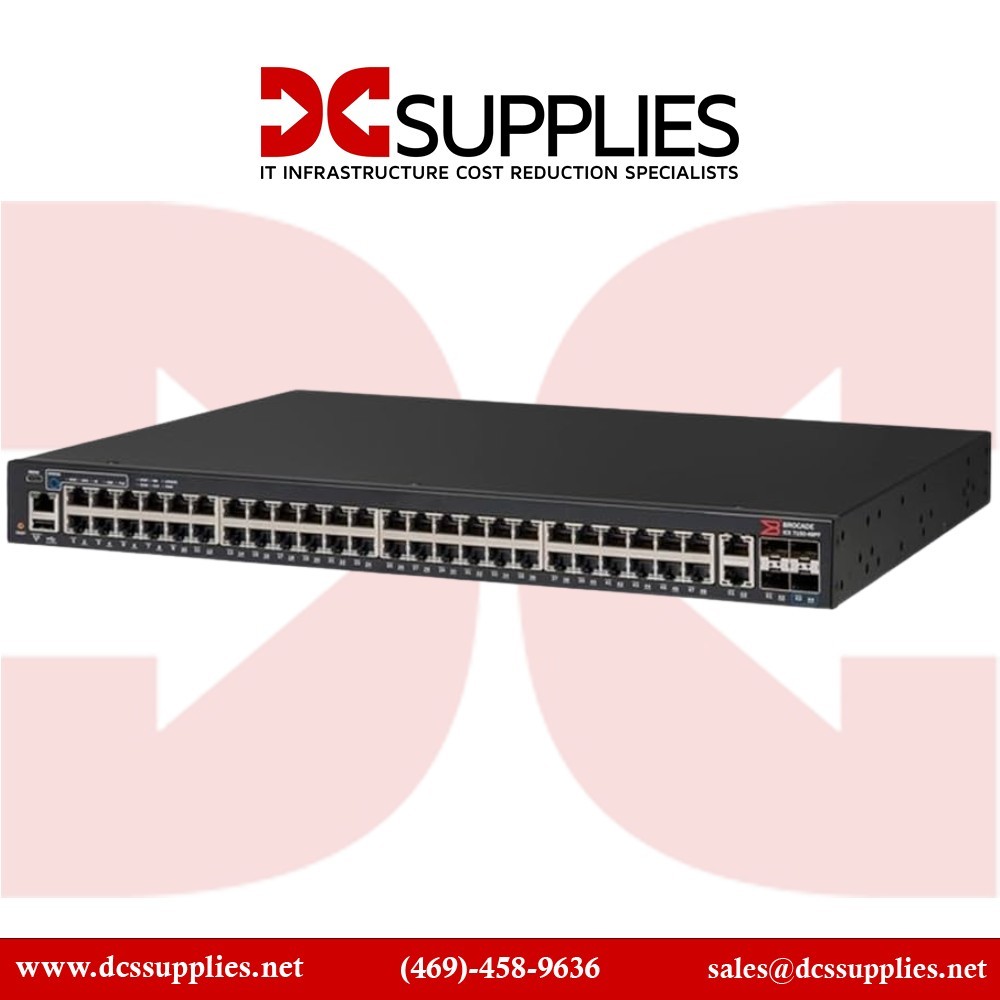

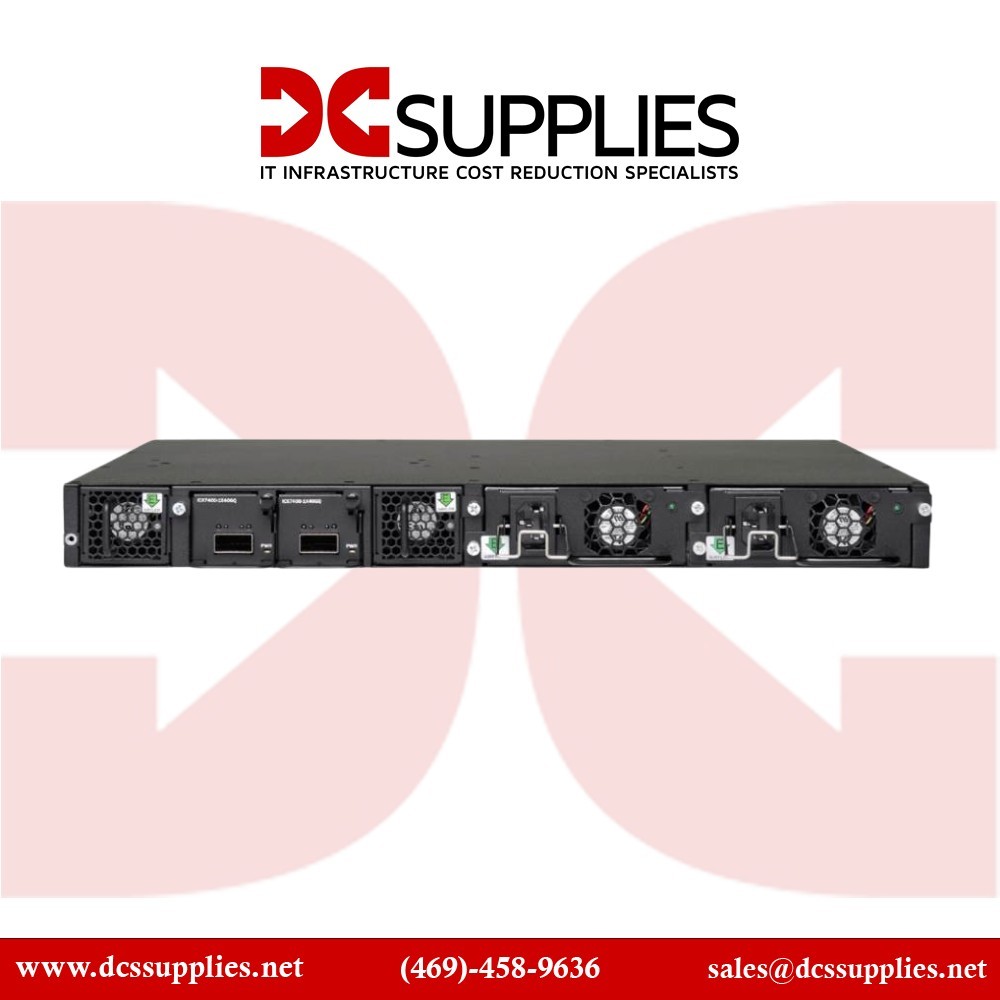

Ruckus ICX7150-48PF-4X10GR-RMT3 – 48-Port PoE+ Managed Switch with 4x10G Uplinks
Overview :
The Ruckus ICX7150-48PF-4X10GR-RMT3 is a high-performance, enterprise-class managed switch designed for demanding access layer deployments. It features 48 Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) support, delivering up to 740W of power across all ports. This makes it ideal for powering devices such as IP phones, wireless access points, and surveillance cameras. The switch also includes four 10 Gigabit SFP+ uplink ports, providing high-speed connectivity for backbone or aggregation links. With Layer 3 capabilities including OSPF, VRRP, PIM, and PBR, it offers advanced routing and redundancy features. The ICX7150-48PF-4X10GR-RMT3 is stackable, allowing for scalable network expansion, and comes with three years of remote support, ensuring reliable operation and maintenance. Its compact 1U form factor and fanless design make it suitable for deployment in noise-sensitive environments.
Key Features :
48 x 10/100/1000 Mbps PoE+ ports
4 x 10GbE SFP+ uplink/stacking ports
740W total PoE power budget
Layer 3 features: OSPF, VRRP, PIM, PBR

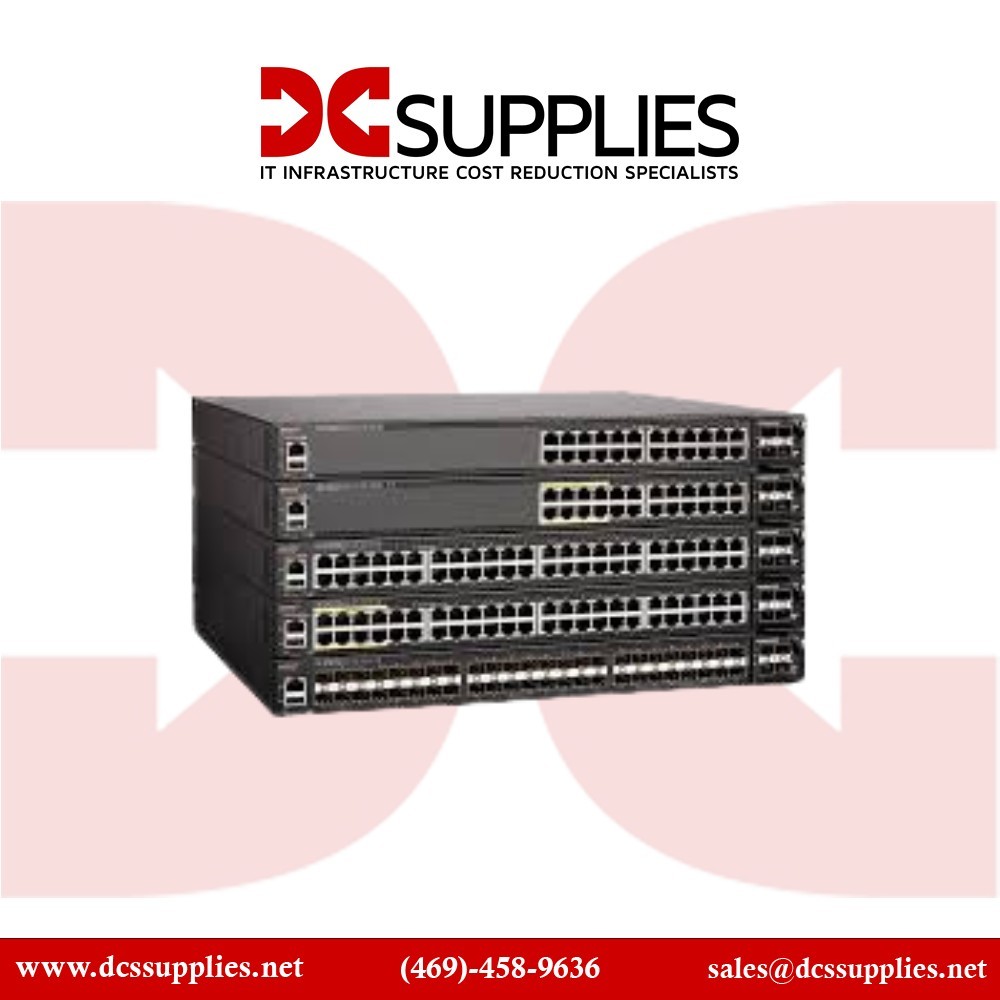

Stackable for scalable network expansion
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | ICX7150-48PF-4X10GR-RMT3 |
| Product Type | Managed Switch |
| Ports | 48 x 10/100/1000 Mbps PoE+ |
| Uplink Ports | 2 x 1GbE RJ45, 4 x 10GbE SFP+ |
| PoE Power Budget | 740W |
| Layer 3 Features | OSPF, VRRP, PIM, PBR |
| Stacking | Yes, supports stacking |
| Form Factor | 1U Rack-Mountable |
| Cooling | Fanless design |
| Operating Temperature | 0°C to 45°C |
| Dimensions (H x W x D) | 1.73 x 17.3 x 10.5 inches |
| Weight | 7.7 lbs |
| Remote Support | 3 years |
