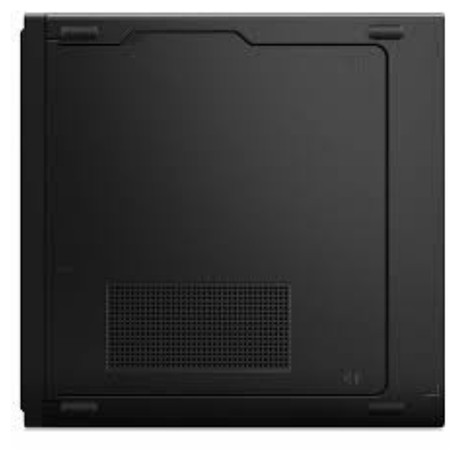

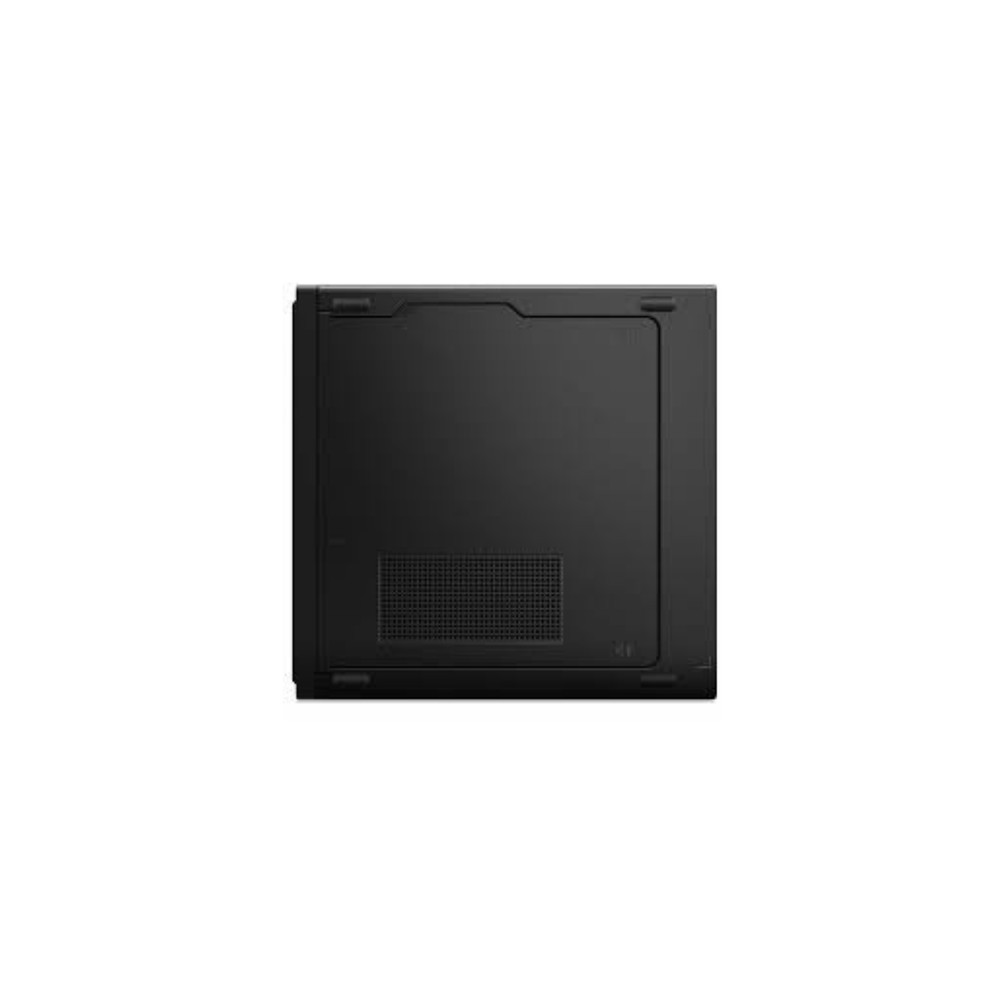

Lenovo 13AC0028US ThinkCentre M90q Gen 6 Desktop Computer View larger

Lenovo 13AC0028US ThinkCentre M90q Gen 6 Desktop Computer

13AC0028US

New

1L Tiny AI Desktop Core Ultra 9 285 32GB 1TB vPro

×




Detailed Specifications

Lenovo 13AC0028US ThinkCentre M90q Gen 6 Desktop Computer

Overview

The Lenovo 13AC0028US is the high-capacity, flagship configuration of the ThinkCentre M90q Gen 6 series. This 1-liter "Tiny" AI PC is built for elite enterprise performance, featuring the top-tier Intel Core Ultra 9 285 (Series 2) processor. With a 24-core architecture and a 5.6GHz max turbo frequency, it is designed to handle the most demanding commercial workloads. The integrated Intel AI Boost NPU provides a dedicated engine for local AI acceleration, delivering up to 36 TOPS of aggregate AI performance to optimize everything from system security to real-time collaboration tools.

This model is fully equipped for high-end multitasking with 32GB of DDR5-5600 memory and a substantial 1TB PCIe Gen 4 NVMe SSD with TCG Opal 2.0 encryption. Built on the Intel Q870 chipset, the 13AC0028US supports the full Intel vPro Enterprise suite, ensuring the hardware-level security, stability, and remote out-of-band management required for mission-critical deployments. Its ultra-compact chassis is MIL-STD-810H tested and includes a vertical stand for a flexible, space-saving desktop footprint.

Connectivity and expansion are class-leading, featuring a 20Gbps USB-C port on the front and support for up to four simultaneous displays. The system's internal design remains highly modular for a USFF PC, offering a low-profile PCIe 4.0 x8 slot and three M.2 SSD slots in total. With high-speed Wi-Fi 6E, Bluetooth 5.3, and a 230W power supply to support the powerful Ultra 9 processor, the 13AC0028US is a no-compromise desktop replacement for advanced professional environments.

Key Features

  • Top-of-the-line Intel Core Ultra 9 285 (24 cores) with AI Boost NPU

  • 32GB DDR5-5600 RAM and 1TB PCIe 4.0 Opal-encrypted NVMe SSD

  • Intel vPro Enterprise for maximum hardware security and manageability

  • Space-saving 1L "Tiny" design with MIL-SPEC durability and included vertical stand

  • Comprehensive I/O with USB-C 3.2 Gen 2x2 (20Gbps) and Wi-Fi 6E support

Specifications

FeatureDetails
BrandLenovo
Part Number13AC0028US
Product TypeTiny Desktop (1L)
ProcessorIntel Core Ultra 9 285 (24C / 24T, up to 5.6GHz)
AI NPUIntel AI Boost (13 TOPS NPU / 36 TOPS Overall)
GraphicsIntegrated Intel Graphics
Memory32GB (1x 32GB) DDR5-5600 SO-DIMM (Max 64GB)
Storage1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
ChipsetIntel Q870
NetworkingWi-Fi 6E AX211, Bluetooth 5.3, Gigabit Ethernet
Front Ports1x USB-C (20Gbps), 1x USB 3.2 Gen 2 (Always On), 1x USB 3.2 Gen 2
Rear Ports1x HDMI 2.1 TMDS, 2x DisplayPort 1.4, 3x USB 3.2 Gen 2
Expansion Slots1x PCIe 4.0 x8 (Low-Profile), 2x M.2 (Available for SSD)
Power Supply230W External Power Adapter (89% Efficiency)
Operating SystemWindows 11 Pro
