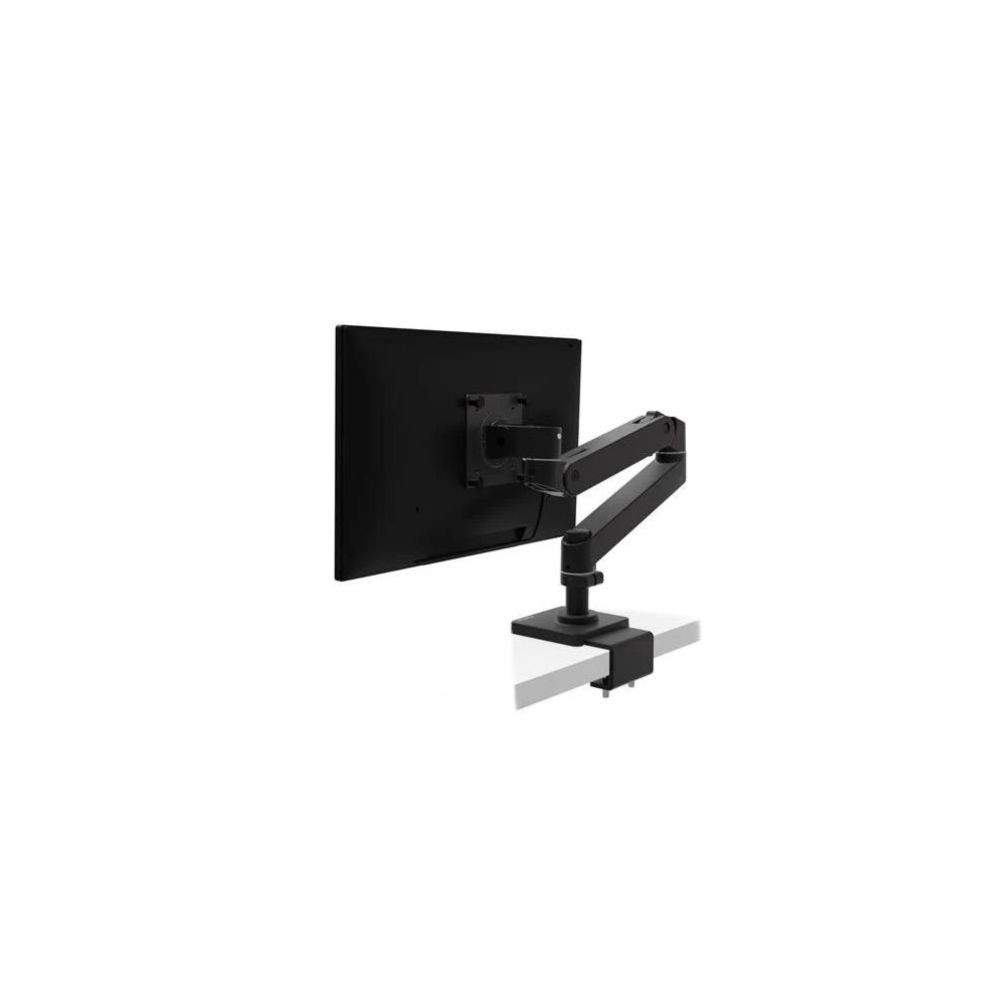

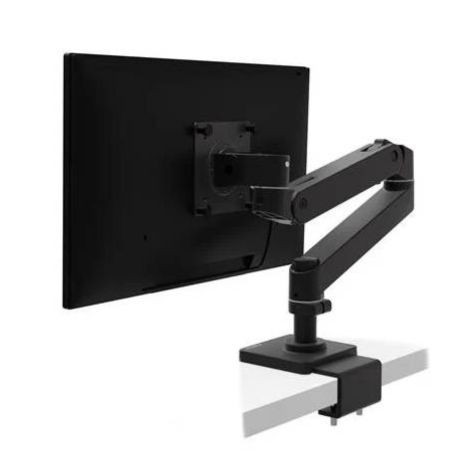

The Ergotron LX Pro Desk Monitor Arm (45-712-292) is an adjustable desk-mounted monitor support designed to improve viewing comfort while freeing up valuable desktop space. Its articulated arm allows users to raise, lower, tilt, pan, and rotate a compatible display to suit their workstation.
Finished in matte black, this LX Pro model features a low-profile C-clamp, integrated cable management, and Ergotron's Constant Force movement technology. Its modular design and straightforward mounting system make it suitable for office and home-office environments.
Key Features
- Single-monitor support: Holds one compatible display weighing 1.8–10 kg (4–22 lb).
- Ergonomic adjustment: Provides up to 33 cm (13 inches) of lift for flexible screen positioning.
- Low-profile C-clamp: Attaches to a compatible desk edge without requiring a grommet mounting hole.
- Flexible screen movement: Supports tilt, pan, and 360-degree monitor rotation.
- Integrated cable management: Helps route cables neatly along the arm to reduce clutter and prevent snags during movement.
Monitor Compatibility and Adjustment
The LX Pro Desk Monitor Arm is designed for one monitor with a recommended screen size of up to 34 inches and a supported weight range of 1.8–10 kg (4–22 lb). Screen size is a guideline; compatibility also depends on display weight, depth, dimensions, and mounting pattern.
The arm provides up to 33 cm (13 inches) of lift and extends up to approximately 64 cm (25 inches). Its adjustment capabilities allow the display to be moved closer to the user, repositioned horizontally, tilted, or rotated between landscape and portrait orientations.
Desk Mounting and Installation
This version uses a low-profile C-clamp designed for desk edges approximately 12–40 mm (0.47–1.57 inches) thick. The area beneath the desk must provide sufficient clearance for the clamp and mounting hardware.
Before installation, check the desk's thickness, construction, edge shape, and underside clearance. The mounting surface must be suitable for supporting the arm and display securely.
VESA Compatibility
The monitor pivot supports VESA MIS-D mounting patterns of 75 × 75 mm and 100 × 100 mm. Verify the mounting-hole pattern on the monitor before ordering. Displays with greater depth may affect the arm's supported weight capacity.
Movement Control and Cable Management
Ergotron's Constant Force technology enables smooth positioning when the arm is correctly adjusted for the installed display. A tension-level indicator provides a visual reference during adjustment, helping users set the arm's counterbalance appropriately.
An integrated rotation stop can restrict side-to-side movement at the extension joint to help prevent the arm from contacting nearby walls or partitions. Cable-routing features help keep monitor connections organized as the display moves.
Typical Applications
- Office and home-office workstations
- Single-monitor desktop setups
- Professional productivity environments
- Workstations requiring adjustable screen positioning
- Desks where preserving usable surface space is important
DC Supplies Product Note
Before ordering, confirm that the monitor weighs between 1.8 and 10 kg (4–22 lb), uses a supported VESA pattern, and fits the intended desk configuration. Check that the desk edge is 12–40 mm thick and that sufficient clearance is available underneath for the C-clamp. Allow adequate cable slack throughout the arm's movement range.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 45-712-292 |
|---|
| Product Type | Single-monitor desk arm |
|---|
| Product Series | LX Pro |
|---|
| Model | LX Pro Desk Monitor Arm, Low-Profile C-Clamp |
|---|
| Colour / Finish | Matte black |
|---|
| Monitor Capacity | 1 monitor |
|---|
| Recommended Screen Size | Up to 34 inches |
|---|
| Weight Capacity | 1.8–10 kg (4–22 lb) |
|---|
| Lift | Up to 33 cm (13 inches) |
|---|
| Maximum Extension | Approximately 64 cm (25 inches) |
|---|
| Tilt Range | 70° backward and 15° forward |
|---|
| Overall Arm Panning | 360°; movement at the base can be restricted using the integrated rotation stop |
|---|
| Monitor Pivot Pan | 180° |
|---|
| Monitor Rotation | 360° |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Mounting Type | Low-profile C-clamp |
|---|
| Compatible Desk Thickness | 12–40 mm (0.47–1.57 inches) |
|---|
| Cable Management | Integrated cable routing |
|---|
| Movement Technology | Constant Force |
|---|
| Construction | Aluminum construction |
|---|
| Warranty | 10 years |
|---|
Frequently Asked Questions
1. Which monitors are compatible with the Ergotron 45-712-292?
The arm supports one compatible monitor weighing 1.8–10 kg (4–22 lb), with a recommended screen size of up to 34 inches. The display must also use a supported VESA mounting pattern.
2. What type of desk mount does this model use?
This model uses a low-profile C-clamp that attaches to a compatible desk edge approximately 12–40 mm thick. It does not require a grommet hole.
3. Can the monitor be rotated into portrait orientation?
Yes. The monitor pivot supports 360-degree rotation, allowing compatible displays to be positioned in landscape or portrait orientation.
4. Which VESA mounting patterns are supported?
The arm supports VESA MIS-D patterns of 75 × 75 mm and 100 × 100 mm.
5. Does this monitor arm include cable management?
Yes. Integrated cable-routing features help organize monitor cables along the arm and reduce interference during repositioning.
6. What warranty applies to this model?
Ergotron specifies a 10-year warranty for the LX Pro Desk Monitor Arm, subject to the manufacturer's applicable warranty terms.
