Ergotron 45-708-293 – LX Pro Desk Monitor Arm, Grommet Mount, Dark Grey
Overview
The Ergotron 45-708-293 LX Pro Desk Monitor Arm is a single-monitor desktop mounting solution with a grommet mount and dark grey finish. It uses Constant Force technology for smooth monitor positioning and provides ergonomic height, tilt, pan and rotation adjustment for professional workstations.
Technical Information

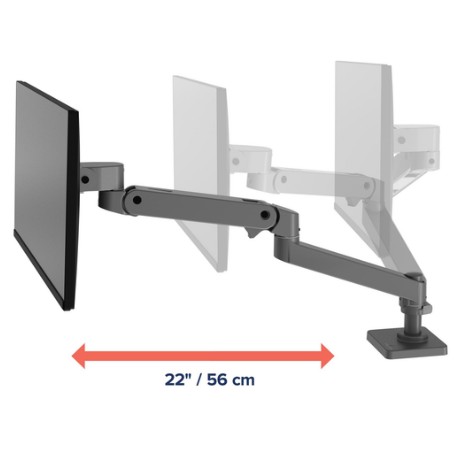

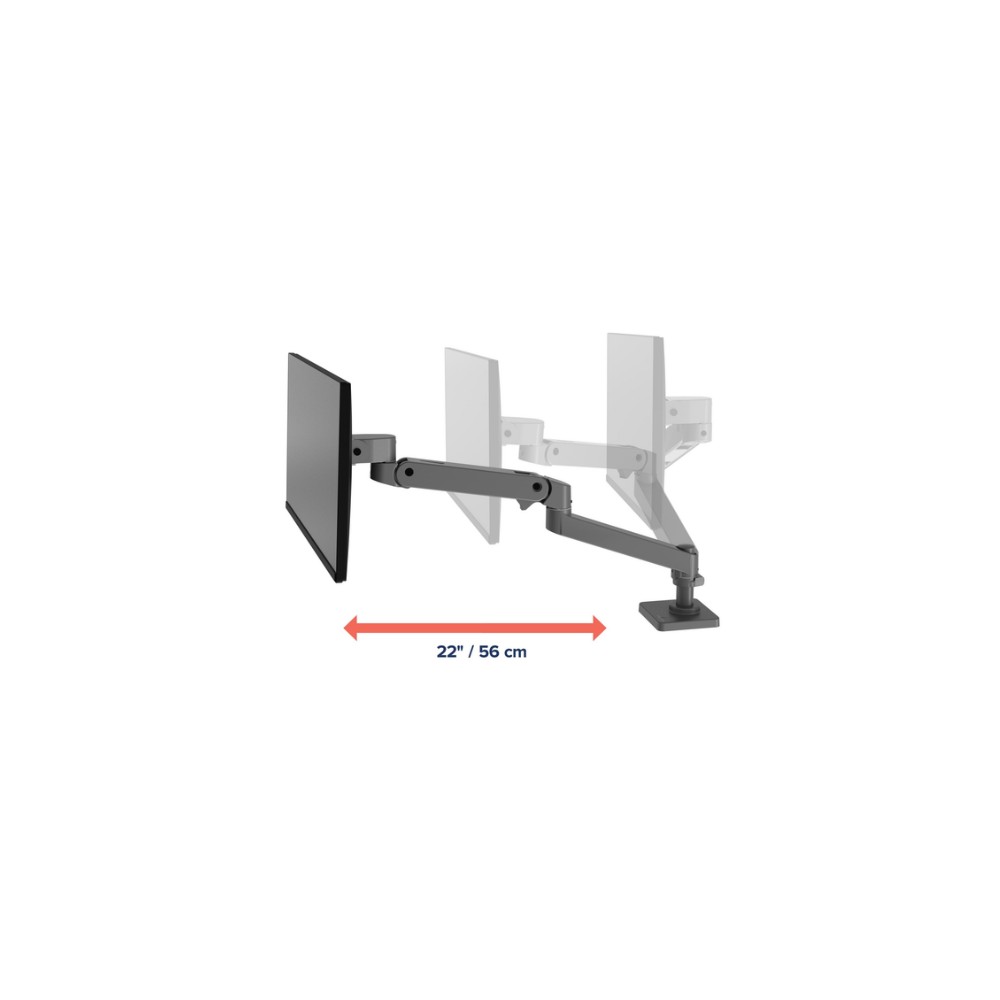

The LX Pro supports displays weighing 4–22 lb (1.8–10 kg) and is specified for typical displays up to 34 inches. The arm provides 13 inches of vertical lift and up to 25 inches of extension. The monitor pivot provides 180° pan and 360° rotation, while the arm's multiple pivot points provide broad side-to-side positioning. An integrated rotation stop can restrict movement at the base/extension point to 180°.
Compatibility
The 45-708-293 supports VESA FDMI MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm. The grommet mount accommodates desk holes from 0.4 to 2 inches (10–50 mm) in diameter and up to 2.4 inches (60 mm) deep. It is designed for one monitor and can also be configured for compatible accessories such as Ergotron's laptop tray.
Key Features
- Supports one display weighing 4–22 lb (1.8–10 kg)
- Provides 13 inches of lift and up to 25 inches of extension
- Dark grey LX Pro arm with grommet desktop mounting
- Supports VESA MIS-D 75 x 75 mm and 100 x 100 mm mounting patterns
- Constant Force technology with integrated cable management and rotation stop
Applications
The 45-708-293 is designed for professional offices, commercial workstations, flexible desks, hot-desking environments and other applications requiring ergonomic single-monitor positioning. Its grommet mounting configuration provides a secure desktop installation while maintaining a wide range of monitor adjustment.
DC Supplies Product Note
DC Supplies recommends verifying the exact manufacturer part number before ordering. The 45-708-293 is specifically the dark grey LX Pro Desk Monitor Arm with Grommet Mount. It should not be confused with 45-708-292 in matte black or 45-708-290 in white.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 45-708-293 |
|---|
| Product | LX Pro Desk Monitor Arm, Grommet Mount |
|---|
| Product Type | Single-monitor desk mount arm |
|---|
| Series | LX Pro |
|---|
| Color | Dark Grey |
|---|
| Display Support | 1 monitor |
|---|
| Typical Maximum Screen Size | Up to 34 in |
|---|
| Weight Capacity | 4–22 lb (1.8–10 kg) |
|---|
| Lift | 13 in (33 cm) |
|---|
| Maximum Extension | 25 in (64 cm) |
|---|
| Tilt | 85° total; 70° backward / 15° forward |
|---|
| Monitor Pan | 180° |
|---|
| Base/Extension Pan | 360°; can be restricted to 180° with rotation stop |
|---|
| Rotation | 360° |
|---|
| VESA Compatibility | FDMI MIS-D, 75 x 75 mm and 100 x 100 mm |
|---|
| Grommet Hole Diameter | 0.4–2 in (10–50 mm) |
|---|
| Maximum Grommet Depth | 2.4 in (60 mm) |
|---|
| Construction | Aluminum |
|---|
| Product Weight | 7.2 lb |
|---|
| Shipping Weight | 10.2 lb |
|---|
| Shipping Dimensions | 16.5 x 14 x 6.6 in (42 x 35.5 x 17 cm) |
|---|
| Warranty | 10 years |
|---|
FAQs
What is the Ergotron 45-708-293?
The 45-708-293 is the Ergotron LX Pro Desk Monitor Arm with Grommet Mount in Dark Grey, designed for a single monitor.
What is the maximum display weight?
The published display capacity is 4–22 lb (1.8–10 kg).
What monitor size is supported?
Ergotron specifies a typical maximum screen size of 34 inches, provided the display remains within the arm's published weight and mounting requirements.
Which VESA patterns are supported?
The arm supports VESA FDMI MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm.
How much height adjustment is available?
The LX Pro provides 13 inches (33 cm) of vertical lift.
How far can the arm extend?
The published maximum extension is 25 inches (64 cm).
What desk mounting method does this model use?
The 45-708-293 uses a grommet mount. The desk mounting hole must be 0.4–2 inches (10–50 mm) in diameter and up to 2.4 inches (60 mm) deep.
Can the monitor rotate?
Yes. The monitor supports 360° rotation and 180° pan. The arm provides 360° movement through its pivot points, with a built-in rotation stop available to restrict movement at the base/extension point to 180°.
Does the arm provide cable management?
Yes. The LX Pro incorporates integrated cable management to help route monitor cables along the arm.
Can the arm be used with a laptop?
Ergotron identifies the LX Pro as configurable for a laptop when used with the compatible Laptop Tray accessory, part number 50-193-200.
What warranty does Ergotron provide?
Ergotron specifies a 10-year warranty for the LX Pro Desk Monitor Arm.
