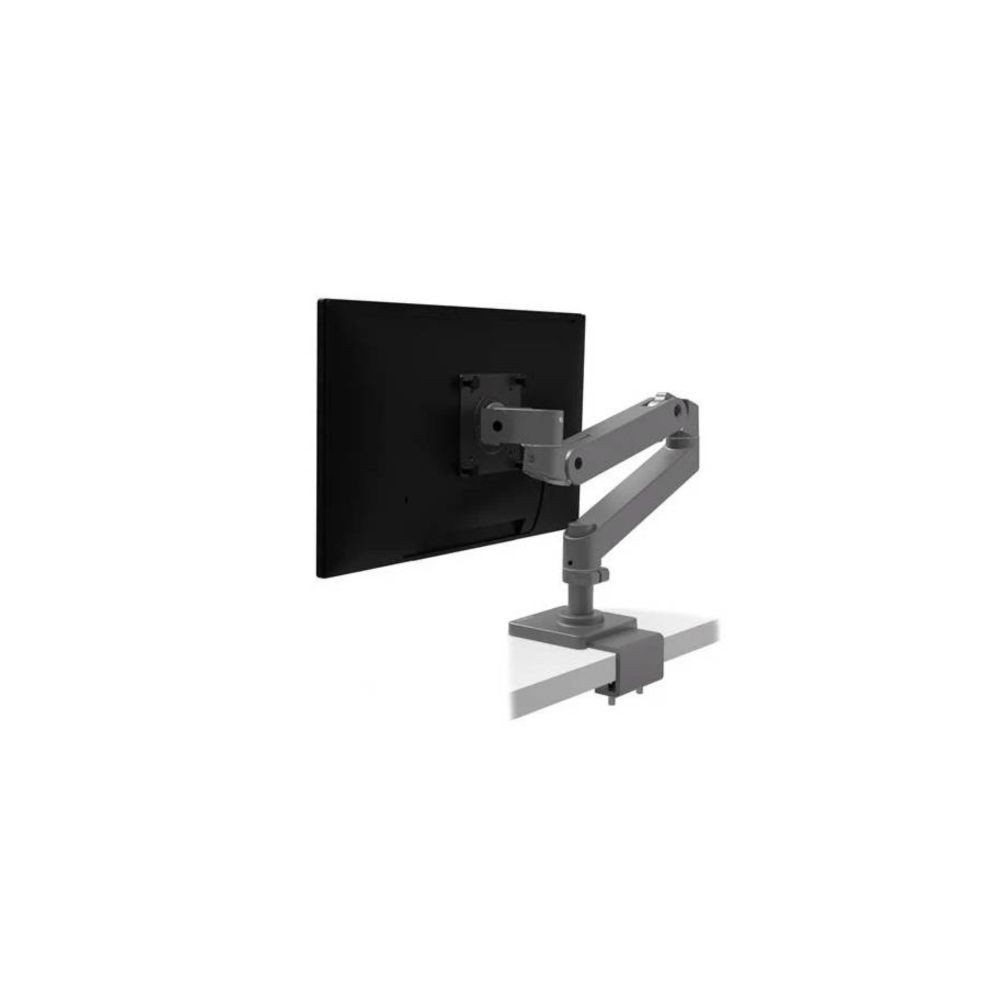

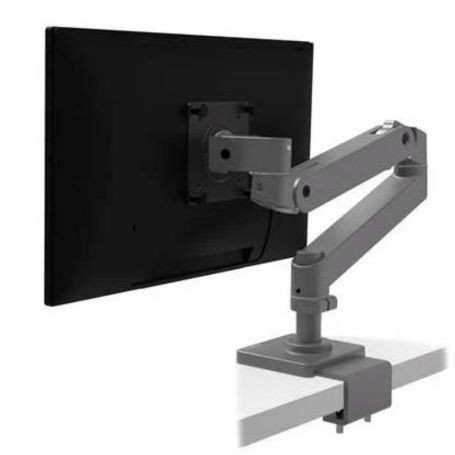

The Ergotron LX Pro Desk Monitor Arm, MPN 45-712-293, is a desk-mounted monitor support designed to improve screen positioning and free up valuable desktop space. Its low-profile C-clamp attaches to a compatible desk edge, while the adjustable arm allows users to raise, lower, tilt, pan, and rotate a supported display.
Part of Ergotron's LX Pro range, this monitor arm combines aluminum construction, integrated cable management, and a dark grey finish for a clean, organized workstation. Its adjustable design is suitable for a variety of office and home-office environments.
Key Features
- Ergonomic screen positioning: Adjust monitor height and viewing angle to suit your workstation and preferred posture.
- Broad monitor compatibility: Supports compatible displays weighing 1.8–10 kg (4–22 lb), with screen sizes up to approximately 34 inches.
- Low-profile C-clamp mounting: Attaches to a compatible desk edge without requiring a grommet mounting hole.
- Flexible movement: Offers lift, tilt, pan, and monitor rotation for adaptable screen positioning.
- Integrated cable management: Helps keep monitor cables organized along the arm assembly.
Monitor Compatibility and Adjustment
The LX Pro Desk Monitor Arm supports one compatible monitor weighing between 1.8 and 10 kg (4–22 lb). The recommended screen size is up to approximately 34 inches, although actual compatibility also depends on display weight, dimensions, and mounting configuration.
The arm provides up to 33 cm (13 inches) of lift and a maximum extension of approximately 64 cm (25 inches). Its movement capabilities include a 70-degree backward and 15-degree forward tilt range, adjustable horizontal positioning, and 360-degree screen rotation.
Mounting and VESA Compatibility
This model uses a low-profile C-clamp designed for desk surfaces approximately 12–40 mm (0.47–1.57 inches) thick. The desk must also provide adequate clearance beneath the mounting area and a suitable surface for secure attachment.
The monitor pivot supports VESA MIS-D mounting patterns of 75 × 75 mm and 100 × 100 mm. Check the monitor's mounting pattern and weight before installation. Displays deeper than approximately 9 cm (3.6 inches) may affect the supported weight capacity.
Space-Saving Workstation Design
By lifting the monitor off the desktop, the LX Pro helps create additional room for documents, keyboards, and other workstation equipment. Its adjustable arm makes it easier to reposition the display when switching tasks or sharing a workspace.
The integrated rotation stop can limit movement at the base and extension joint to help prevent the monitor arm from swinging into a nearby wall or obstacle. A tension-level indicator also helps users set the arm's counterbalance for the installed display.
Typical Applications
- Office and home-office workstations
- Professional desktop computer setups
- Administrative and productivity work areas
- Workspaces requiring adjustable monitor positioning
- Desks where freeing up surface space is a priority
DC Supplies Product Note
Before ordering, confirm that the monitor weighs between 1.8 and 10 kg (4–22 lb), uses a supported VESA mounting pattern, and fits within the desk mount's clearance requirements. The C-clamp is intended for compatible desk edges 12–40 mm thick. Verify the desk's construction and mounting suitability before installation.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 45-712-293 |
|---|
| Product Type | Single-monitor desk arm |
|---|
| Product Series | LX Pro |
|---|
| Model | LX Pro Desk Monitor Arm, Low-Profile C-Clamp |
|---|
| Colour | Dark grey |
|---|
| Supported Displays | 1 monitor |
|---|
| Recommended Screen Size | Up to approximately 34 inches |
|---|
| Weight Capacity | 1.8–10 kg (4–22 lb) |
|---|
| Lift | Up to 33 cm (13 inches) |
|---|
| Maximum Extension | Approximately 64 cm (25 inches) |
|---|
| Tilt Range | 70° backward and 15° forward |
|---|
| Pan | 360° overall arm movement; monitor pivot movement is limited by its joint design |
|---|
| Monitor Rotation | 360° |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Mounting Type | Low-profile C-clamp |
|---|
| Compatible Desk Thickness | 12–40 mm (0.47–1.57 inches) |
|---|
| Cable Management | Integrated cable routing |
|---|
| Construction | Aluminum construction |
|---|
| Warranty | 10 years |
|---|
Frequently Asked Questions
1. Which monitors are compatible with the Ergotron 45-712-293?
It supports one monitor weighing 1.8–10 kg (4–22 lb), with a recommended screen size of up to approximately 34 inches. The display must also use a supported VESA mounting pattern.
2. What type of desk mount does this model use?
This model uses a low-profile C-clamp that attaches to a compatible desk edge. It is designed for desk surfaces approximately 12–40 mm thick and does not require a grommet hole.
3. Can the monitor be rotated between landscape and portrait orientations?
Yes. The monitor pivot supports 360-degree rotation, allowing compatible displays to be repositioned between landscape and portrait orientations.
4. Which VESA mounting patterns are supported?
The arm supports VESA MIS-D patterns of 75 × 75 mm and 100 × 100 mm.
5. Does the monitor arm help reduce desktop clutter?
Yes. It raises the monitor above the desk surface and includes cable management features to help organize monitor cables.
6. What warranty does Ergotron provide?
Ergotron lists a 10-year warranty for this LX Pro monitor arm, subject to the manufacturer's applicable warranty terms.
