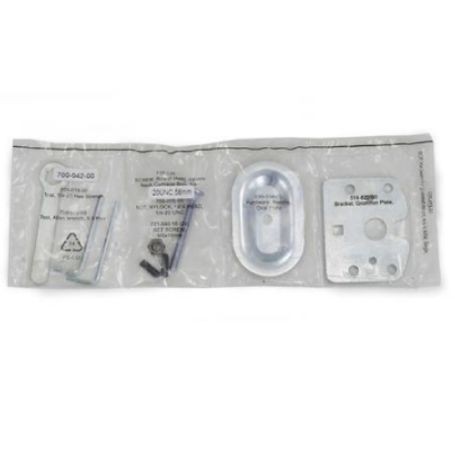

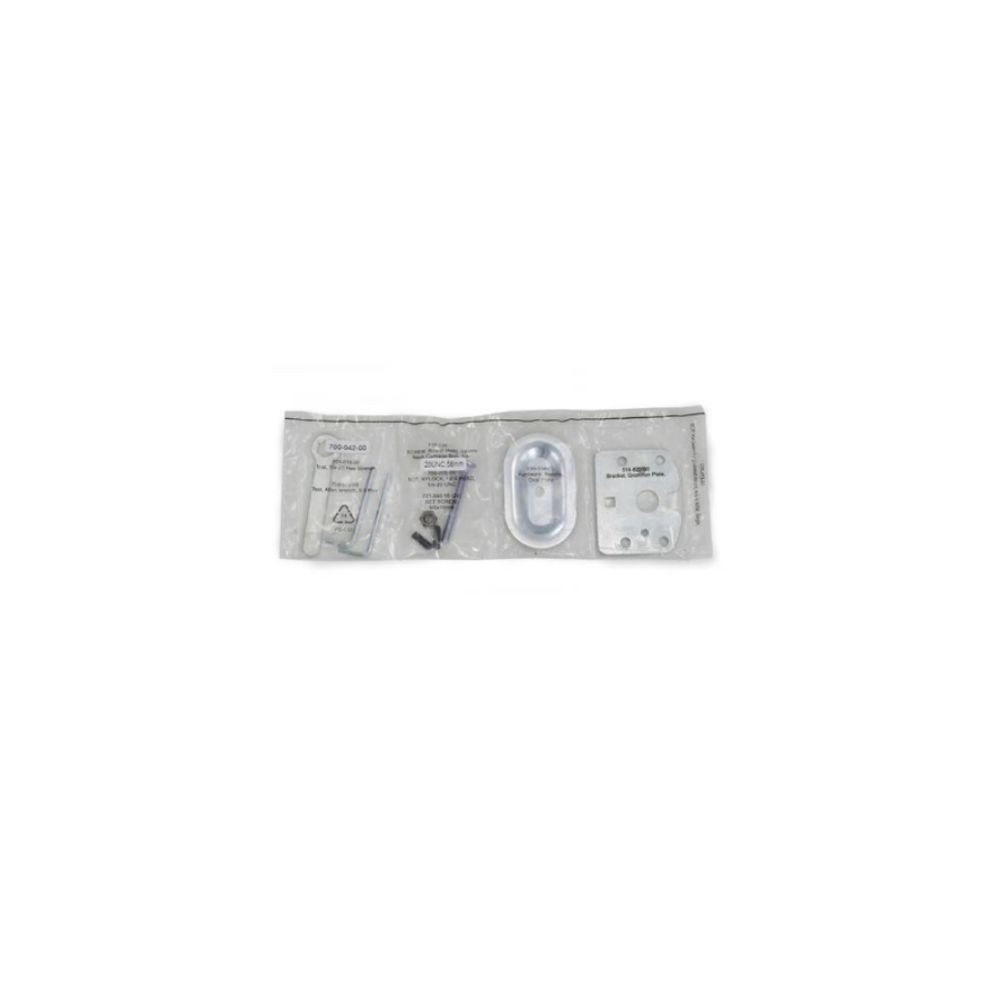

The Ergotron 98-110 MXV Grommet Mount is a dedicated mounting accessory for compatible Ergotron MXV single monitor arms. It provides an alternative to a desk-edge clamp by securing the arm through a suitable hole in the worksurface, allowing the monitor to be positioned in a convenient location on the desk.
Designed for practical workstation installation, this grommet mount includes anti-rotation screws that help prevent the mounting base from slipping. The compact assembly is suitable for compatible desks that meet the specified hole-size and thickness requirements.
Key Features
- Designed for MXV single arms: Provides a through-desk mounting option for compatible Ergotron MXV single monitor arms.
- Flexible desk positioning: Allows installation at a suitable worksurface location rather than requiring an edge-mounted clamp.
- Anti-rotation screws: Help prevent the mounting base from slipping when correctly installed.
- Compact construction: Weighs approximately 0.7 lb (0.3 kg), making it a compact addition to a compatible workstation.
- Manufacturer warranty: Listed with a 10-year warranty, subject to applicable terms and conditions.
Product Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-110 |
|---|
| Product Name | MXV Grommet Mount for Single Arm |
|---|
| Product Type | Monitor arm mounting accessory |
|---|
| Compatible Product | Compatible Ergotron MXV single monitor arm |
|---|
| Mounting Method | Through-worksurface grommet mount |
|---|
| Required Worksurface Hole Width | 5/16–1.25 inches (0.8–3.1 cm) |
|---|
| Maximum Worksurface Thickness | 1.3 inches (3.2 cm) |
|---|
| Anti-Rotation Provision | Two anti-rotation surface holes and screws |
|---|
| Product Weight | 0.7 lb (0.3 kg) |
|---|
| Shipping Dimensions | 6.7 × 6.3 × 2 inches (17 × 16 × 5 cm) |
|---|
| UPC | 698833062724 |
|---|
| Warranty | 10 years, subject to applicable warranty terms |
|---|
Installation and Compatibility
The Ergotron 98-110 is intended for compatible MXV single monitor arm configurations. Before installation, verify the monitor arm model and confirm that the worksurface has a hole between 5/16 and 1.25 inches (0.8–3.1 cm) wide. The desk must not exceed the specified maximum thickness of 1.3 inches (3.2 cm).
The mounting location must also accommodate the anti-rotation provisions. Follow the manufacturer's installation instructions to ensure the mount is properly secured.
This product is a grommet mounting accessory, not a complete monitor arm. The monitor arm and display are not included unless explicitly stated by the seller.
DC Supplies Product Note
DC Supplies recommends confirming the exact MXV arm model and measuring the desk mounting hole before ordering. The Ergotron 98-110 is designed for compatible single-arm configurations; compatibility with other monitor arms should be verified separately.
Frequently Asked Questions
1. What is the Ergotron 98-110 used for?
It is a grommet mounting accessory that allows a compatible Ergotron MXV single monitor arm to be secured through a suitable hole in a desk or worksurface.
2. Which monitor arm is compatible with this mount?
The 98-110 is designed for the compatible Ergotron MXV single monitor arm. Confirm the exact arm model before purchasing.
3. What size desk hole is required?
The worksurface hole must be 5/16–1.25 inches (0.8–3.1 cm) wide, and the desk must be no thicker than 1.3 inches (3.2 cm).
4. How does the mount help prevent slipping?
The design includes anti-rotation screws that help prevent the mounting base from slipping when installed correctly.
5. Is the monitor arm included?
No. The 98-110 is the grommet mount accessory. The compatible monitor arm and display are separate products unless the seller specifies otherwise.
6. What warranty is provided?
The product is listed with a 10-year warranty, subject to the manufacturer's applicable terms and conditions.
