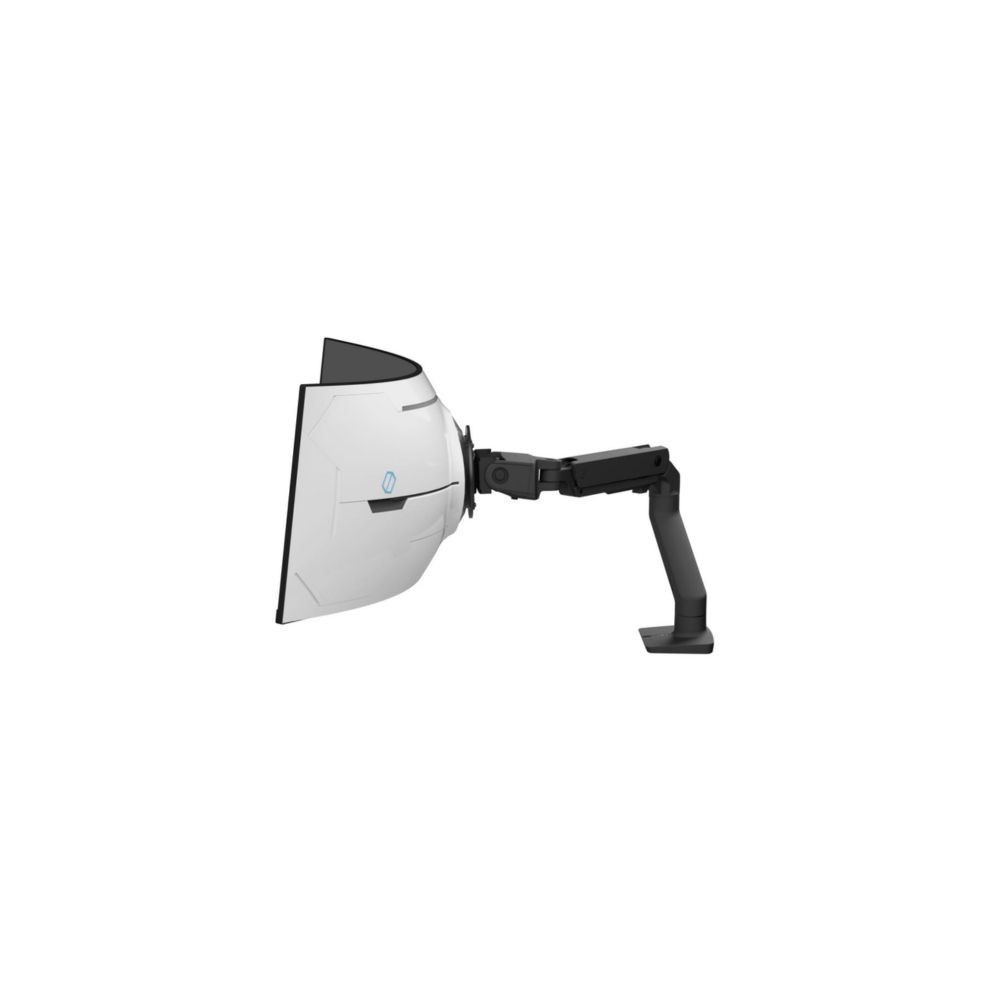

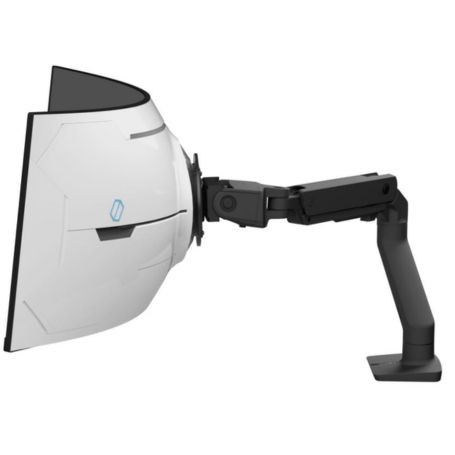

The Ergotron 45-693-224 HX Desk Monitor Arm with VHD Pivot is a matte-black heavy-duty desk-mounted monitor arm designed for ultra-wide, deeply curved displays. It supports screens up to 57 inches and is specifically rated for 1000R curved displays measuring 9.1–13.8 inches (23.1–35.1 cm) deep and weighing 28.7–37.5 lb (13–17 kg).
Overview
The HX arm combines Ergotron's HX monitor-arm platform with a Very Heavy-Duty (VHD) tilt pivot for large, heavy curved displays. Its adjustment range includes 11.5 inches of lift, 180° monitor pan, 180° base-arm pan, and ±10° monitor rotation.
Designed for Large Curved Displays
The 45-693-224 is intended for ultra-wide 1000R curved monitors with greater screen depth and higher weight than conventional monitor arms are designed to handle. Ergotron specifies a display depth range of 9.1–13.8 inches and a supported weight range of 28.7–37.5 lb.
VHD Pivot Adjustment
The Very Heavy-Duty tilt pivot provides +20° / -5° tilt adjustment for positioning compatible heavy displays. The monitor can also pan through 180° and rotate ±10°, while the base arm provides 180° of pan movement.
Desk Mounting
The arm supports both a standard two-piece desk clamp and a grommet mounting configuration. The included extension provides up to 25 inches (60 cm) of extension for positioning the display over the workspace.
Key Features
- Supports ultra-wide displays up to 57 inches.
- Rated for 1000R curved displays weighing 28.7–37.5 lb (13–17 kg).
- Very Heavy-Duty (VHD) tilt pivot provides +20° / -5° tilt.
- Provides 11.5 inches (29.2 cm) of vertical lift and up to 25 inches (60 cm) of extension.
- Includes both desk-clamp and grommet mounting options.
VESA Compatibility
The arm uses the VESA MIS-D mounting interface. The display's actual weight, depth, curvature, and mounting pattern should be checked before installation to confirm suitability.
Applications
The 45-693-224 is suited to desk-mounted workstations using large ultra-wide curved displays, particularly 1000R screens with substantial depth and weight requirements. It can help replace a large factory monitor stand while providing adjustable positioning above the desktop.
DC Supplies Product Note
For heavy ultra-wide displays, check both the monitor's weight and chassis depth against Ergotron's specified 13–17 kg and 23.1–35.1 cm ranges before selecting this VHD-pivot configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-693-224 |
| Product Type | HX Desk Monitor Arm with VHD Pivot |
| Color | Matte Black |
| Typical LCD Size | Up to 57 inches |
| Display Type | Ultra-wide 1000R curved display |
| Supported Display Depth | 9.1–13.8 inches (23.1–35.1 cm) |
| Weight Capacity | 28.7–37.5 lb (13–17 kg) |
| Lift | 11.5 inches (29.2 cm) |
| Tilt | +20° / -5° |
| Monitor Pan | 180° |
| Base Arm Pan | 180° |
| Monitor Rotation | ±10° |
| VESA | MIS-D |
| Extension | Up to 25 inches (60 cm) |
| Desk Mounting | Desk clamp and grommet mount |
| Product Weight | 8.1 kg |
| Warranty | 10 years |
| GTIN | 00698833091939 |
Package Contents
The package includes the HX arm, Very Heavy-Duty tilt pivot, extension, desk clamp, grommet mount, and mounting hardware.
Frequently Asked Questions
What size monitor does the Ergotron 45-693-224 support?
It supports displays up to 57 inches, with the size specification referring to the screen's diagonal measurement.
How much weight can the 45-693-224 support?
It supports 28.7–37.5 lb (13–17 kg) for the specified ultra-wide 1000R curved display configuration.
How deep can the supported display be?
Ergotron specifies a display depth of 9.1–13.8 inches (23.1–35.1 cm) for the supported heavy ultra-wide configuration.
What tilt adjustment does the VHD pivot provide?
The Very Heavy-Duty pivot provides +20° upward and -5° downward tilt adjustment.
Does the arm support grommet mounting?
Yes. The 45-693-224 includes both a standard two-piece desk clamp and a grommet mounting option.
What warranty is provided?
Ergotron specifies a 10-year warranty for the 45-693-224.
