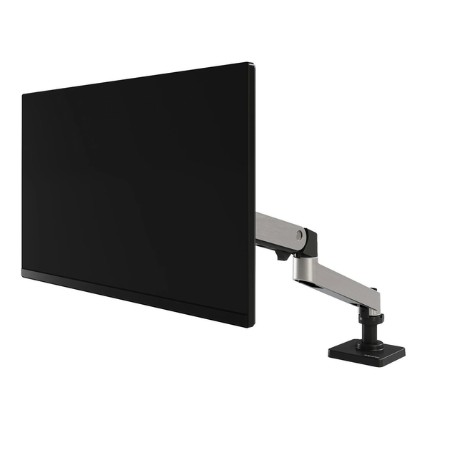

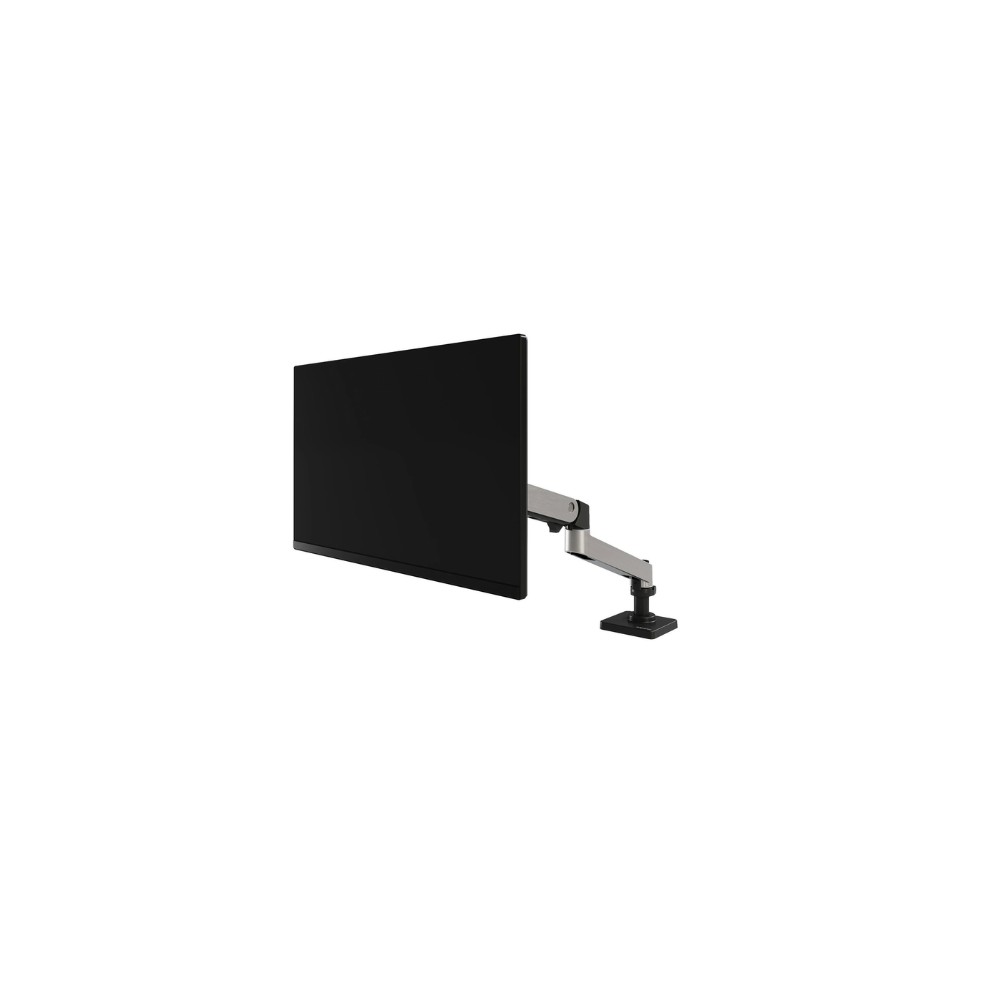

Ergotron 45-708-026 – LX Pro Grommet Mount Monitor Arm
Overview
The Ergotron 45-708-026 is an LX Pro single-monitor desk arm with a polished aluminum finish and grommet mounting configuration. It supports one display up to 34 inches and 22 lb (10 kg), providing height adjustment and broad positioning for workstation, office, control-room, and other desk-based display deployments.
Technical Information
The arm provides 13 inches (33 cm) of lift, 85° tilt, 360° pan, and 360° display rotation. Its VESA FDMI MIS-D interface supports 75 x 75 mm and 100 x 100 mm mounting patterns. The LX Pro design incorporates cable management and an integrated rotation stop that can restrict movement at the base/extension point when required.
Compatibility
The 45-708-026 is designed for one VESA-compatible monitor or display weighing between 4 and 22 lb (1.8–10 kg), with a maximum supported screen size of 34 inches. The grommet mount attaches through a desk surface opening with a 10–50 mm diameter and up to 60 mm depth. Displays deeper than 3.6 inches (9 cm) may affect the stated weight capacity.
Key Features
- Supports one display up to 34 inches and 22 lb (10 kg)
- 13-inch (33 cm) height adjustment with 85° tilt
- 360° pan and 360° display rotation
- Grommet mounting for desk installations with 10–50 mm mounting holes
- VESA FDMI MIS-D support for 75 x 75 mm and 100 x 100 mm patterns
Applications
The arm is suited to workstation and office desks where a single display needs flexible height, tilt, pan, and rotation adjustment. Its grommet mounting configuration is also applicable to fixed desk installations where the display arm is secured through the work surface.
DC Supplies Product Note
Verify the monitor's VESA pattern, installed weight, display depth, and desk grommet dimensions before deployment. The 45-708-026 is the polished aluminum grommet-mount configuration of the LX Pro desk arm family.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-708-026 |
| Product Type | Single Monitor Desk Arm |
| Product Series | LX Pro |
| Finish | Polished Aluminum |
| Displays Supported | 1 |
| Maximum Screen Size | 34 inches |
| Load Capacity | 4–22 lb (1.8–10 kg) |
| Lift | 13 inches (33 cm) |
| Tilt | 85° |
| Pan | 360° |
| Rotation | 360° |
| VESA Mounting | FDMI MIS-D, 75 x 75 mm and 100 x 100 mm |
| Mounting Type | Grommet Mount |
| Grommet Hole Diameter | 10–50 mm |
| Grommet Mount Depth | Up to 60 mm |
| Maximum Extension | 25 inches (64 cm) |
| Cable Management | Integrated |
| Rotation Stop | Integrated |
| Product Weight | 7.2 lb |
| Warranty | 10 years |
FAQs
How many monitors does the Ergotron 45-708-026 support?
The 45-708-026 is configured for one monitor or display.
What monitor weight can the 45-708-026 support?
The specified load range is 4–22 lb (1.8–10 kg).
What VESA patterns are supported?
The arm supports VESA FDMI MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm.
What type of desk mounting does this model use?
The 45-708-026 uses a grommet mount that installs through a suitable opening in the desk surface.
What is the maximum supported display size?
The specified maximum screen size is 34 inches, subject to the display remaining within the arm's weight and dimensional limits.
