Ergotron 98-130-224 – LX Arm, Extension and Collar Kit, Matte Black

Overview

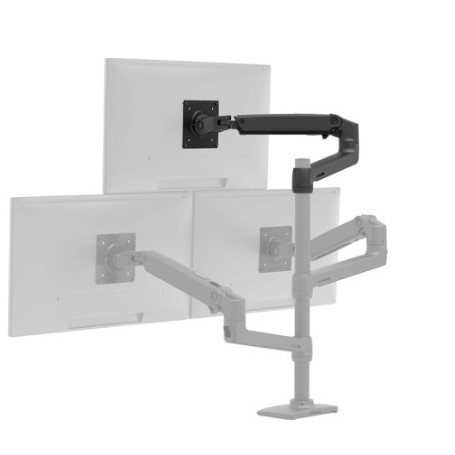

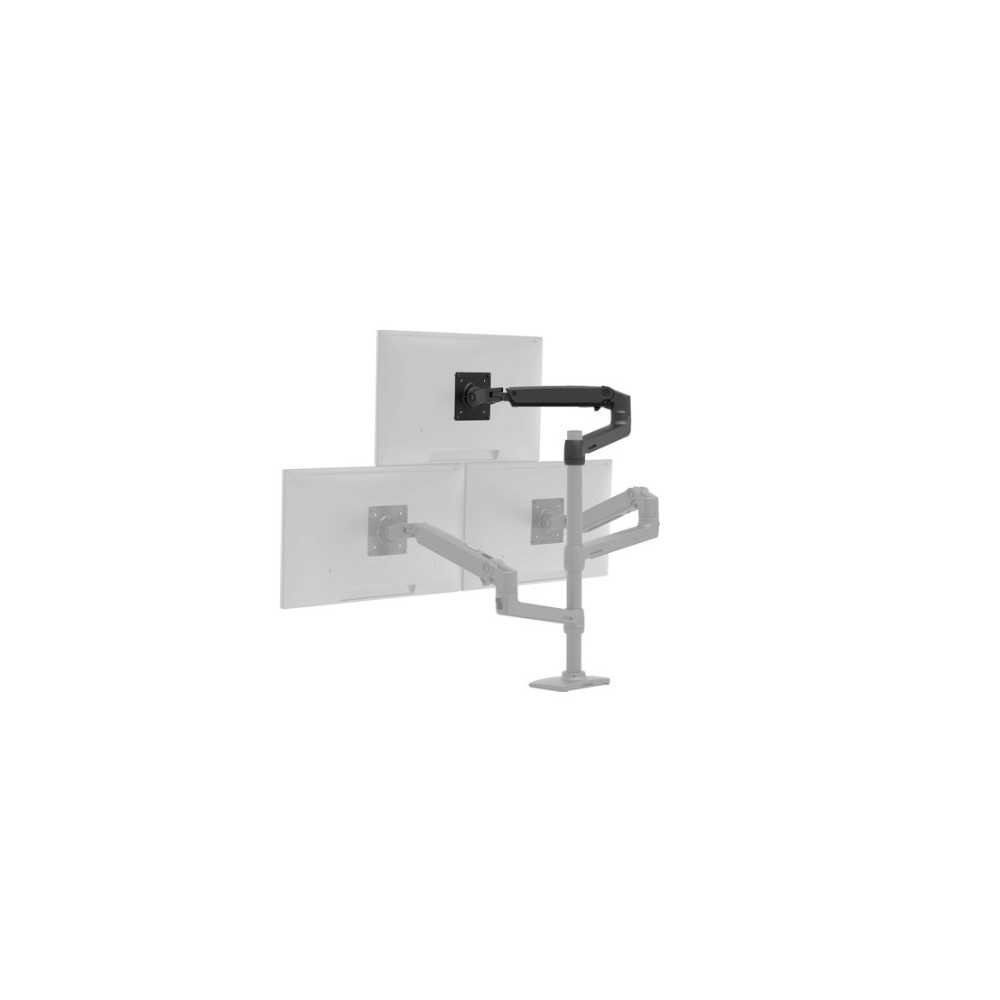

The Ergotron 98-130-224 LX Arm, Extension and Collar Kit is an accessory for expanding compatible LX monitor mounting systems. The matte black kit adds an additional LX monitor arm and associated extension and collar hardware to an existing LX tall-pole configuration, enabling three- or four-monitor installations when used with the appropriate base system.

Technical Information

The 98-130-224 provides up to 13 inches (33 cm) of height adjustment, 360° pan and 360° rotation, with a 75° tilt range. The arm supports displays weighing 7–25 lb (3.2–11.3 kg) and uses VESA MIS-D mounting patterns. Integrated cable management routes display cables beneath the arm.

Compatibility

The kit is designed to work with compatible Ergotron LX arms and tall-pole configurations. Ergotron specifically identifies the 98-130-224 as the accessory required to add a third monitor to the LX Dual Stacking Arm, Tall Pole, and two kits can be used to add a third and fourth arm for a four-display configuration. Additional arms can reduce the allowable capacity per monitor depending on the parent LX configuration.

Key Features

• Matte black LX Arm, Extension and Collar Kit
• Adds an additional monitor arm to compatible LX systems
• Supports displays from 7–25 lb (3.2–11.3 kg)
• Provides 13-inch (33 cm) height adjustment with 360° pan and rotation
• Supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns

Applications

The 98-130-224 is suited to professional workstations, control and monitoring desks, financial workstations, call centers, industrial workspaces and other multi-display environments. It is particularly useful when expanding an Ergotron LX tall-pole dual-monitor configuration to three or four displays.

DC Supplies Product Note

The 98-130-224 is an expansion accessory, not a complete standalone desk monitor mount. The kit is intended for use with compatible LX mounting systems and should be selected according to the capacity limitations of the parent mount and the weight of the installed displays.

Specifications

FAQs

What is the Ergotron 98-130-224?

The 98-130-224 is an LX Arm, Extension and Collar Kit in matte black for expanding compatible Ergotron LX monitor mounting systems.

What does the kit add?

The kit adds an LX monitor arm together with an extension, pole collar, cap and attachment hardware.

How many monitors can it help support?

One 98-130-224 kit adds an additional monitor arm. Ergotron specifies it for adding a third monitor to the LX Dual Stacking Arm, Tall Pole. Two kits can be used to create a four-monitor configuration when supported by the parent system.

What is the weight capacity?

The arm supports displays weighing 7–25 lb (3.2–11.3 kg). In multi-monitor configurations, the maximum allowable capacity can be reduced according to the parent LX mount configuration.

What display size is supported?

The compatible accessory specification supports displays up to 40 inches, subject to the stated weight and mounting requirements.

Which VESA patterns are supported?

The arm supports VESA MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm.

How much height adjustment is available?

The LX arm provides up to 13 inches (33 cm) of height adjustment.

Can the monitor rotate?

Yes. The arm provides 360° rotation as well as 360° pan adjustment.

Is an existing LX mount required?

Yes. The 98-130-224 is an expansion accessory and is designed to attach to a compatible LX arm or tall-pole mounting system rather than function as a complete standalone desk mount.

What color is this part number?

Part number 98-130-224 is the matte black version. Ergotron also lists 98-130-216 as the white version of the LX Arm, Extension and Collar Kit.

What warranty is provided?

The 98-130-224 is listed with a 10-year warranty.
