Overview

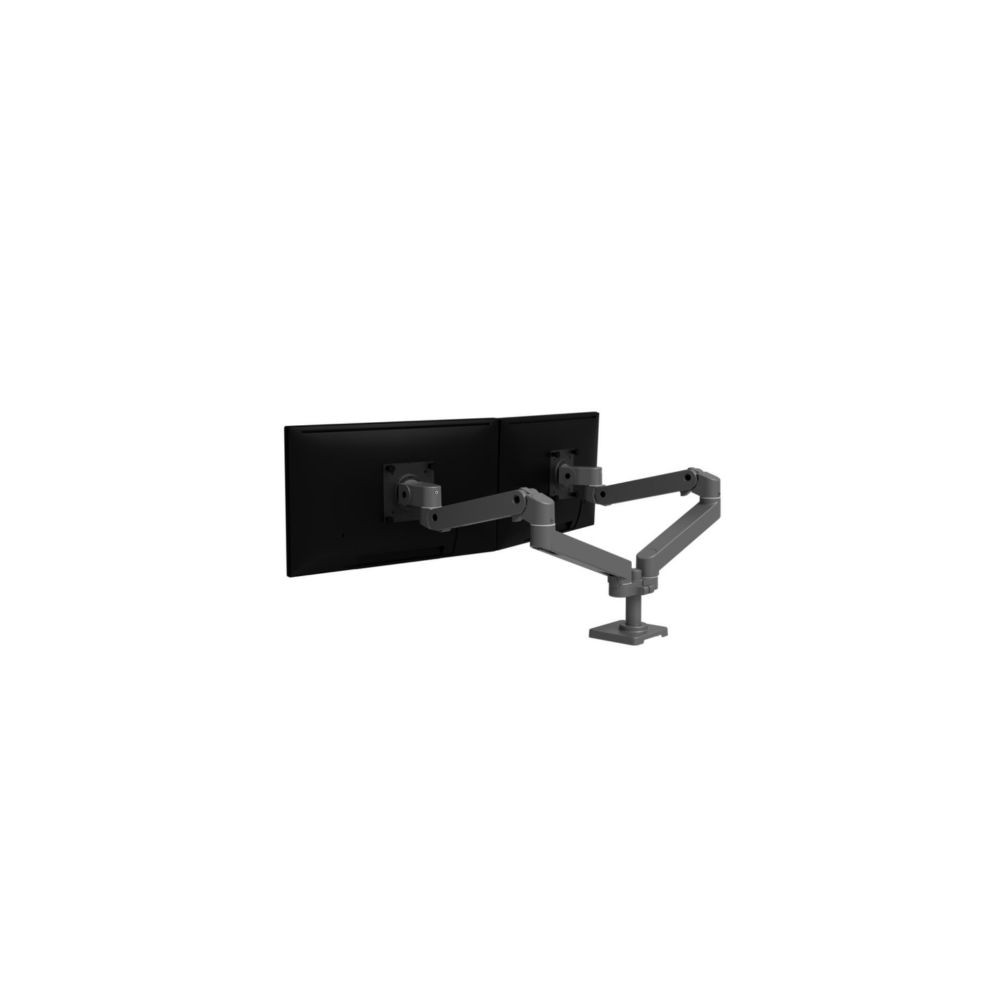

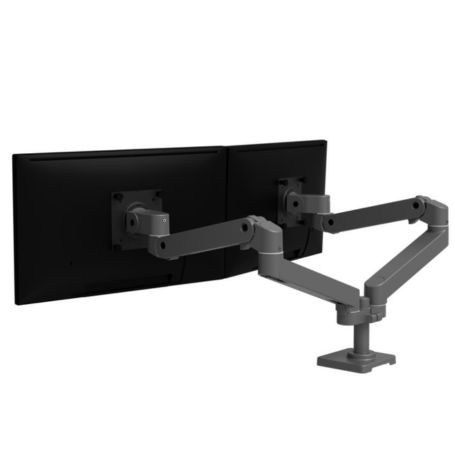

The Ergotron LX Pro Dual Side-by-Side Monitor Arm, part number 45-686-293, is a dark grey desk-mounted arm designed to support two monitors in a side-by-side configuration. The LX Pro design provides independent positioning of both displays and uses Constant Force lift-and-pivot technology for monitor adjustment. The configuration uses a compact two-piece desk clamp and a 5.3-inch (13.5 cm) pole.
Monitor Support and Adjustment
The arm supports two displays up to 27 inches, with an individual monitor capacity of 4–20 lb (1.8–9 kg) and a total capacity of 40 lb (18.1 kg). Each display can be adjusted through 13 inches (33 cm) of lift, 85 degrees of tilt, 180 degrees of monitor pan, and 360 degrees of rotation.
Mounting and Compatibility
The two-piece desk clamp is designed for surfaces from 0.4 to 2.4 inches (10 to 60 mm) thick. The monitor pivots use the MIS-D VESA mounting pattern, supporting 75 x 75 mm and 100 x 100 mm mounting holes. The arms provide up to 25 inches (64 cm) of extension.
Key Features
- Dual-monitor side-by-side configuration
- Supports up to 20 lb (9 kg) per monitor and 40 lb (18.1 kg) total
- 13 inches (33 cm) of lift adjustment
- 85-degree tilt, 180-degree monitor pan, and 360-degree rotation
- Integrated rotation stop and cable-management design
Applications
The 45-686-293 is intended for desk-based workstations requiring two independently adjustable displays in a side-by-side arrangement. The mounting configuration is suitable for desks with compatible surface thickness and VESA mounting points.
DC Supplies Product Note
When selecting displays for this arm, check both the weight of each monitor and the combined load. Each display must remain within the 4–20 lb (1.8–9 kg) range, while the total supported monitor weight cannot exceed 40 lb (18.1 kg).
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 45-686-293 |
|---|
| Product Type | Dual-monitor desk arm |
|---|
| Series | LX Pro |
|---|
| Configuration | Dual Side-by-Side |
|---|
| Color | Dark Grey |
|---|
| Displays Supported | 2 |
|---|
| Typical Display Size | Up to 27 inches |
|---|
| Individual Monitor Capacity | 4–20 lb (1.8–9 kg) |
|---|
| Total Weight Capacity | 40 lb (18.1 kg) |
|---|
| Lift | 13 in (33 cm) |
|---|
| Tilt | 85° (+70° / -15°) |
|---|
| Monitor Pan | 180° |
|---|
| Base Arm Pan | 360° (180° with rotation stop engaged) |
|---|
| Monitor Rotation | 360° |
|---|
| VESA Compatibility | MIS-D, 100/75, C; 100 x 100 mm and 75 x 75 mm |
|---|
| Extension | Up to 25 in (64 cm) |
|---|
| Pole Height | 5.3 in (13.5 cm) |
|---|
| Desk Surface Thickness | 0.4–2.4 in (10–60 mm) |
|---|
| Product Weight | 13.9 lb (6.3 kg) |
|---|
| Warranty | 10 years |
|---|
| UPC | 698833091700 |
|---|
Frequently Asked Questions
How many monitors does the Ergotron 45-686-293 support?
The LX Pro Dual Side-by-Side configuration supports two monitors.
What is the maximum weight for each monitor?
Each monitor can weigh up to 20 lb (9 kg), with a total monitor capacity of 40 lb (18.1 kg).
What VESA mounting patterns are supported?
The monitor pivots support 75 x 75 mm and 100 x 100 mm VESA mounting patterns.
What desk thickness can the clamp accommodate?
The two-piece desk clamp is designed for surfaces from 0.4 to 2.4 inches (10 to 60 mm) thick.
Can the monitors be positioned independently?
Yes. The dual side-by-side configuration uses separate monitor arms and pivots, allowing the two displays to be adjusted independently.
What is included with the 45-686-293?
The documented configuration includes two arms, two extensions, two monitor pivots, a two-piece desk clamp, a 5.3-inch (13.5 cm) pole, and attachment hardware. A grommet mount base is sold separately.
