Overview

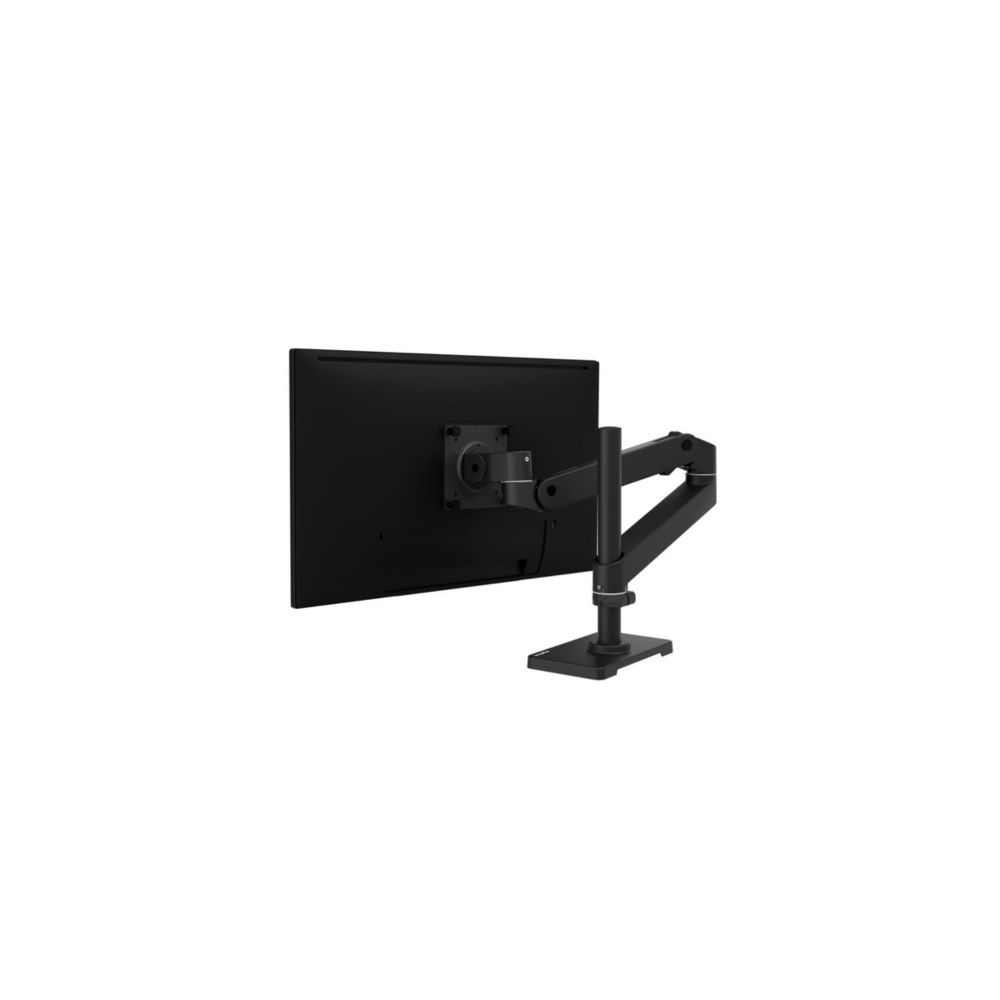

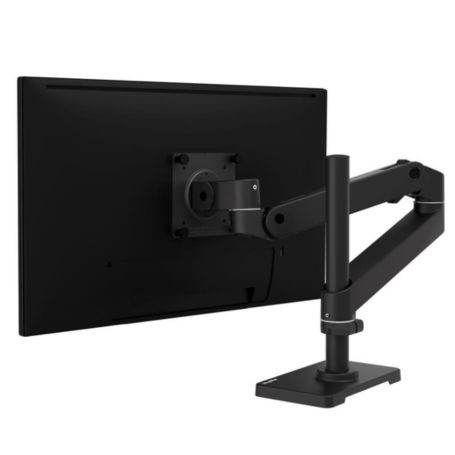

The Ergotron LX Pro Desk Monitor Arm, Tall Pole, part number 45-695-292, is a black desk-mounted monitor arm for a single display. Its taller pole provides additional vertical positioning range while the Constant Force technology enables smooth monitor adjustment.
Monitor Support and Adjustment
The arm supports displays up to 34 inches and accommodates monitors weighing from 4 to 22 lb (1.8 to 10 kg). It provides 13 inches (33 cm) of height adjustment, 85 degrees of tilt, 360 degrees of monitor pan, and 360 degrees of rotation. Screen size may exceed the nominal 34-inch recommendation when the display remains within the specified weight capacity and other mounting requirements.
Desk Mounting
The standard configuration uses a two-piece desk clamp for surfaces from 0.4 to 2.4 inches (10 to 60 mm) thick. The tall-pole version includes an approximately 12-inch (30 cm) pole, providing the additional vertical reach associated with this model.
VESA Compatibility
The monitor pivot uses the MIS-D VESA mounting pattern, supporting 75 x 75 mm and 100 x 100 mm mounting hole patterns.
Key Features
- Single-monitor LX Pro desk arm with tall pole
- Supports displays up to 34 inches and 22 lb (10 kg)
- 13 inches (33 cm) of lift adjustment
- 85-degree tilt with 360-degree pan and rotation
- Two-piece desk clamp for surfaces 10–60 mm thick
Applications
The 45-695-292 is designed for single-monitor workstations where additional pole height is useful for monitor positioning. The arm can also be configured for a laptop by adding Ergotron's compatible Laptop Tray 50-193-200.
DC Supplies Product Note
The 45-695-292 is the tall-pole version of the LX Pro desk arm. Its 12-inch pole is useful where greater vertical positioning is required, while the desk clamp requires a compatible mounting surface between 10 and 60 mm thick.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 45-695-292 |
|---|
| Product Type | Single-monitor desk arm |
|---|
| Series | LX Pro |
|---|
| Configuration | Tall Pole |
|---|
| Color | Black / Matte Black |
|---|
| Supported Display Size | Up to 34 inches |
|---|
| Weight Capacity | 4–22 lb (1.8–10 kg) |
|---|
| Lift | 13 in (33 cm) |
|---|
| Tilt | 85° (+70° / -15°) |
|---|
| Monitor Pan | 360° |
|---|
| Monitor Rotation | 360° |
|---|
| Extension | Up to 25 in (64 cm) |
|---|
| VESA Compatibility | MIS-D, 100/75, C; 100 x 100 mm and 75 x 75 mm |
|---|
| Pole Height | 11.8 in (30 cm) |
|---|
| Desk Clamp | Two-piece clamp |
|---|
| Desk Surface Thickness | 0.4–2.4 in (10–60 mm) |
|---|
| Product Weight | 11.3 lb (5.1 kg) |
|---|
| Warranty | 10 years |
|---|
| UPC/GTIN | 00698833092134 |
|---|
Frequently Asked Questions
How many monitors does the Ergotron 45-695-292 support?
The 45-695-292 is a single-monitor arm and is designed to support one display.
What is the maximum monitor weight?
The arm supports displays weighing from 4 to 22 lb (1.8 to 10 kg).
What VESA patterns are supported?
The monitor pivot supports 75 x 75 mm and 100 x 100 mm VESA mounting patterns.
What desk thickness is required for the clamp?
The included two-piece desk clamp is designed for desk surfaces from 10 to 60 mm (0.4 to 2.4 inches) thick.
What is the advantage of the tall-pole version?
The approximately 12-inch (30 cm) pole provides additional vertical positioning capability compared with the standard LX Pro desk-arm configuration.
Can the arm support a laptop?
Yes. Ergotron documents the 45-695-292 as configurable for a laptop when used with the separately ordered 50-193-200 Laptop Tray.
