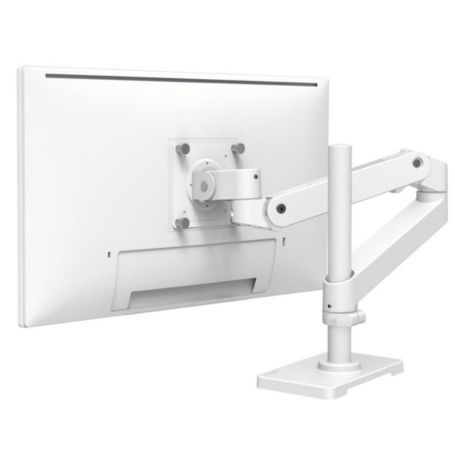

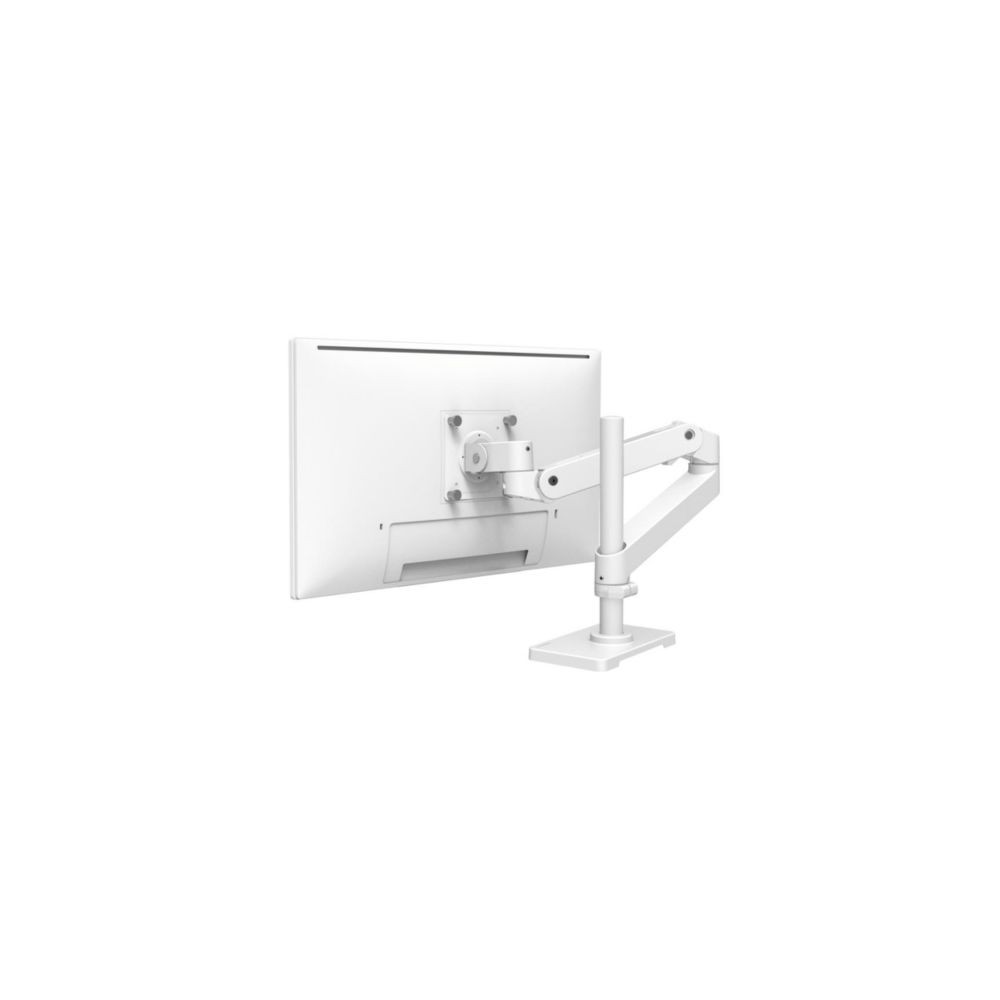

The Ergotron 45-695-290 LX Pro Desk Monitor Arm, Tall Pole is a white single-monitor desk mount configured with a 12-inch (30.4 cm) pole. It provides adjustable positioning for displays up to 34 inches and supports monitors weighing 4–22 lb (1.8–10 kg).
Overview
The tall-pole configuration extends the vertical mounting range of the LX Pro desk arm while retaining the articulated arm design. The 45-695-290 includes a two-piece desk clamp, monitor pivot, extension, 12-inch pole, pole collar, and attachment hardware.
Tall-Pole Configuration
The defining feature of the 45-695-290 is its 12-inch (30.4 cm) pole. This provides a taller vertical mounting structure than the standard LX Pro Desk Arm configurations, making the pole height an important consideration when selecting this exact model.
Monitor Support
The arm supports displays up to 34 inches with a weight range of 4–22 lb (1.8–10 kg). The monitor can be positioned through the arm's available lift, tilt, pan, and rotation adjustments.
Adjustability
The LX Pro arm provides 13 inches (33 cm) of lift, 85° of tilt adjustment, 360° of base-arm pan, and 360° of monitor rotation. The arm can extend up to 25 inches (64 cm).
Key Features
- 12-inch (30.4 cm) tall pole configuration.
- Supports displays up to 34 inches.
- Supports 4–22 lb (1.8–10 kg) monitors.
- Provides 13 inches (33 cm) of lift and up to 25 inches (64 cm) of extension.
- Supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns.
VESA Compatibility
The 45-695-290 uses the VESA FDMI MIS-D, 100/75, C mounting interface, supporting 100 x 100 mm and 75 x 75 mm hole patterns.
Desk Mounting
The included two-piece desk clamp is designed for desk surfaces from 0.4–2.4 inches (10–60 mm) thick. A grommet mount base is available separately according to Ergotron's product documentation.
Applications
The 45-695-290 is suited to single-monitor workstations where the additional height of a 12-inch pole is useful. Its articulated arm allows the supported display to be repositioned within the available lift, pan, tilt, rotation, and extension ranges.
DC Supplies Product Note
When selecting this model, pay particular attention to the 12-inch pole and the 10–60 mm desk-thickness range of the included clamp, as these distinguish the tall-pole configuration from standard LX Pro desk-arm versions.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-695-290 |
| Product Type | LX Pro Desk Monitor Arm, Tall Pole |
| Color | White |
| Monitor Configuration | Single monitor |
| Typical Display Size | Up to 34 inches |
| Weight Capacity | 4–22 lb (1.8–10 kg) |
| Lift | 13 inches (33 cm) |
| Tilt | 85° (70° up / 15° down) |
| Monitor Pan | 180° |
| Base Arm Pan | 360° (180° with rotation stop engaged) |
| Monitor Rotation | 360° |
| VESA Standard | FDMI MIS-D, 100/75, C |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Maximum Extension | 25 inches (64 cm) |
| Pole Height | 12 inches (30.4 cm) |
| Desk Surface Thickness | 0.4–2.4 inches (10–60 mm) |
| Mounting Type | Two-piece desk clamp |
| Product Weight | 11.2 lb (5.1 kg) |
| Warranty | 10 years |
| UPC | 00698833092059 |
Package Contents
The package includes the arm, extension, monitor pivot, two-piece desk clamp, large base, 12-inch pole, pole collar, and attachment hardware.
Frequently Asked Questions
What is the main difference between the 45-695-290 and standard LX Pro desk arm?
The 45-695-290 is the tall-pole configuration and uses a 12-inch (30.4 cm) pole, compared with the shorter pole used by standard LX Pro desk-arm models.
What size monitor can the 45-695-290 support?
It supports displays up to 34 inches, subject to the specified weight capacity.
What is the monitor weight capacity?
The supported monitor weight range is 4–22 lb (1.8–10 kg).
What desk thickness does the included clamp support?
The two-piece desk clamp supports desk surfaces from 0.4–2.4 inches (10–60 mm) thick.
Which VESA patterns are supported?
The arm supports 75 x 75 mm and 100 x 100 mm VESA mounting patterns.
What is included with the 45-695-290?
The package includes the arm, extension, monitor pivot, two-piece desk clamp, large base, 12-inch pole, pole collar, and attachment hardware.
