Overview

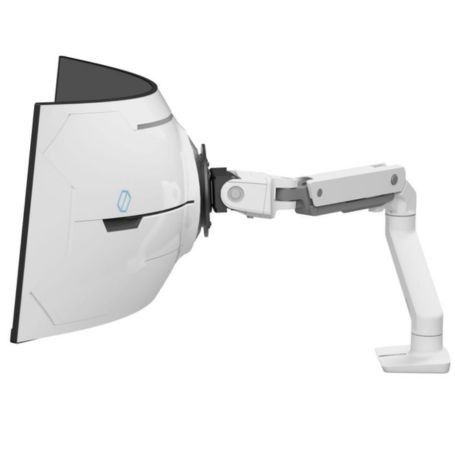

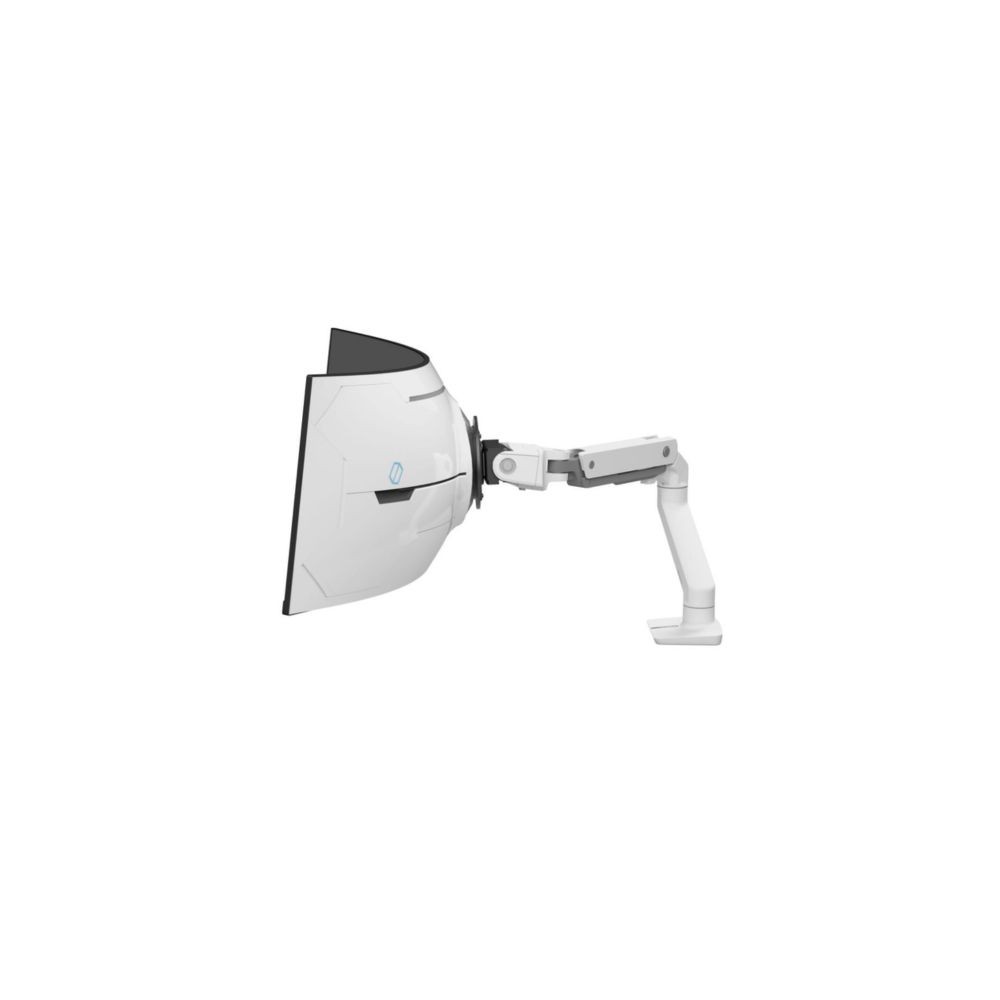

The Ergotron 45-693-216 HX Desk Monitor Arm with VHD Pivot is a white heavy-duty desk-mounted monitor arm designed for ultra-wide, deep 1000R curved displays. Its Very Heavy-Duty pivot is engineered for displays weighing 28.7–37.5 lb (13–17 kg) and measuring 9.1–13.8 inches (23.1–35.1 cm) deep, including displays such as the Samsung Odyssey Neo G9 57-inch gaming monitor.
Heavy-Duty Monitor Support
The VHD pivot is designed for large curved displays up to 57 inches, with a supported monitor weight range of 28.7–37.5 lb (13–17 kg) for the specified ultra-wide display configuration. The display depth is also an important installation consideration, with the rated range extending from 9.1 to 13.8 inches (23.1–35.1 cm).
Adjustment and Positioning
The HX arm provides 11.5 inches (29.2 cm) of lift. The VHD pivot allows +20° upward and -5° downward tilt, while the monitor pan and base arm pan each provide 180° of movement. Monitor rotation is limited to ±10°, which is appropriate for fine display orientation adjustment rather than full portrait rotation.
Desk Mounting and Reach
The standard configuration includes both a two-piece desk clamp and a grommet mount, providing two mounting methods for compatible desk surfaces. The articulated arm extends up to 25 inches (60 cm), allowing a large curved display to be positioned across the available workspace.
VESA Compatibility
The VHD pivot uses a VESA MIS-D mounting interface. Before installation, verify that the monitor's VESA mounting pattern, weight, depth, and overall dimensions fall within the requirements of the 45-693-216.
Key Features
- White HX Desk Monitor Arm with Very Heavy-Duty VHD pivot
- Supports specified ultra-wide 1000R curved displays weighing 28.7–37.5 lb (13–17 kg)
- Designed for displays up to 57 inches and 9.1–13.8 inches deep
- 11.5-inch (29.2 cm) lift with +20°/-5° tilt
- Up to 25 inches (60 cm) of extension with included desk clamp and grommet mount
Applications
The HX Desk Monitor Arm with VHD Pivot is suited to workstations using large ultra-wide curved displays where conventional monitor arms do not provide sufficient load or depth capacity. It is particularly applicable to professional desks, specialized workstations, and large-format curved-monitor setups.
DC Supplies Product Note
For this model, screen size alone is not enough to determine compatibility. Verify the monitor's weight and depth in addition to its VESA mounting interface. The 45-693-216 is specifically rated for the 28.7–37.5 lb and 9.1–13.8 inch depth range of the supported ultra-wide curved display configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-693-216 |
| Product Type | Heavy-Duty Desk Monitor Arm |
| Series | HX |
| Configuration | Single Monitor |
| Color | White |
| Pivot Type | Very Heavy-Duty (VHD) Pivot |
| Typical Display Size | Up to 57 inches |
| Monitor Type | Ultra-wide 1000R Curved Display |
| Monitor Capacity | 28.7–37.5 lb (13–17 kg) |
| Compatible Display Depth | 9.1–13.8 inches (23.1–35.1 cm) |
| Lift | 11.5 inches (29.2 cm) |
| Tilt | +20° / -5° |
| Monitor Pan | 180° |
| Base Arm Pan | 180° |
| Monitor Rotation | ±10° |
| Maximum Extension | 25 inches (60 cm) |
| VESA Standard | MIS-D |
| Mounting Options | Two-piece desk clamp and grommet mount |
| Product Weight | 8.1 kg |
| Warranty | 10 years |
| GTIN | 00698833091922 |
Frequently Asked Questions
What monitors is the Ergotron 45-693-216 designed for?
It is designed for large ultra-wide 1000R curved displays up to 57 inches, with the specified supported weight and depth range.
What is the monitor weight capacity?
The VHD configuration supports the specified ultra-wide curved displays weighing 28.7–37.5 lb (13–17 kg).
How deep can the supported display be?
The rated display depth range is 9.1–13.8 inches (23.1–35.1 cm).
What adjustment range does the arm provide?
The arm provides 11.5 inches (29.2 cm) of lift, +20°/-5° tilt, 180° monitor pan, 180° base arm pan, and ±10° monitor rotation.
What mounting options are included?
The standard configuration includes both a two-piece desk clamp and a grommet mount, along with the HX arm, extension, VHD pivot, and mounting hardware.
How far can the arm extend?
The articulated HX arm provides up to 25 inches (60 cm) of extension.
