Teltonika PR1KC640 5G GNSS WiFi Combo Antenna View larger

Teltonika PR1KC640 5G GNSS WiFi Combo Antenna

PR1KC640

New

In Stock

Outdoor 5G/GNSS/Wi‑Fi MIMO Antenna
×




$310.00

Detailed Specifications

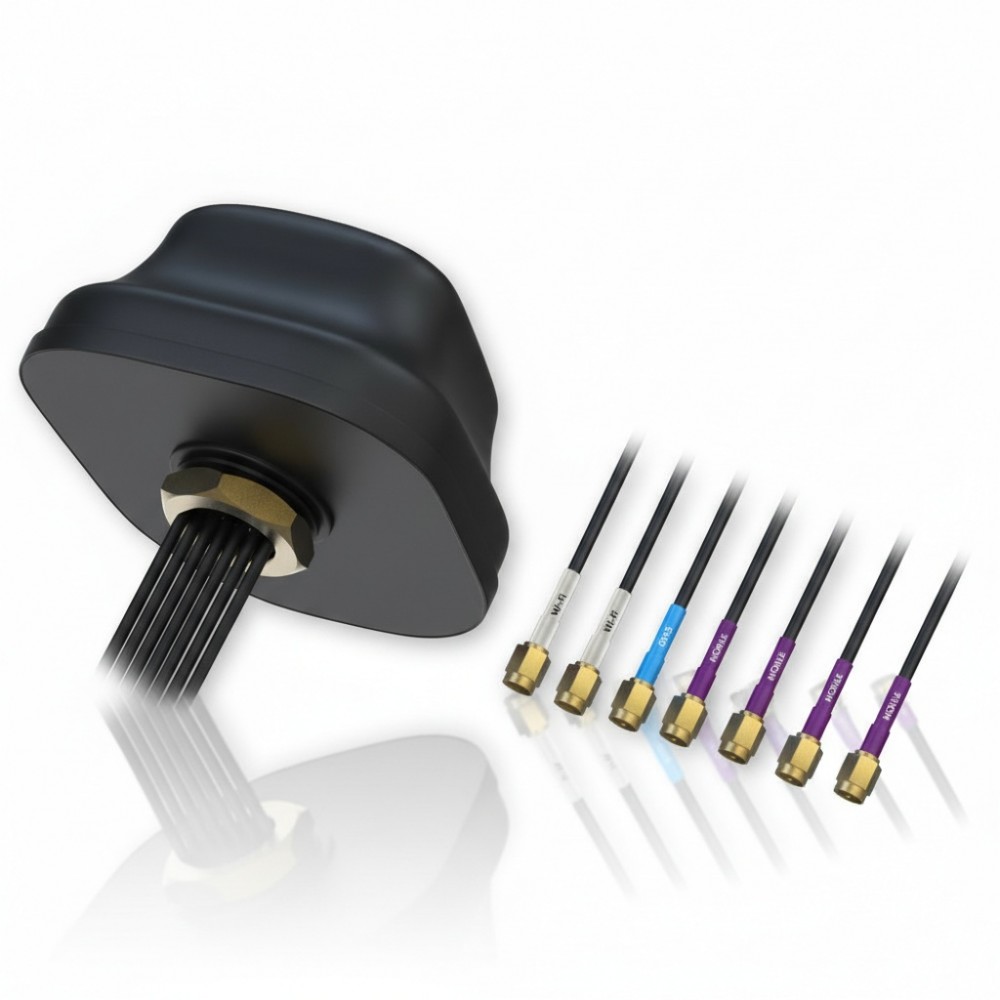

Teltonika PR1KC640 5G GNSS Wi‑Fi Combo Antenna

Overview

The Teltonika PR1KC640 is a multifunctional outdoor MIMO antenna engineered for network engineers needing enhanced cellular, GNSS, and Wi‑Fi signal reception in fixed or mobile installations. It integrates 5G/LTE mobile bands, GNSS for positioning, and dual‑band Wi‑Fi in a single roof‑mount design, improving connectivity where indoor antennas are insufficient. The IP67‑rated housing and 3‑meter cables with multiple connectors make it suitable for buildings, vehicles, and remote infrastructure. It is compatible with Teltonika routers and gateways that support external antennas.

Key Features

• 5G/LTE MIMO antenna with 4 dBi gain
• Integrated GNSS antenna with LNA
• Dual‑band Wi‑Fi MIMO support
• IP67 outdoor‑rated enclosure

Technical Specifications

SpecificationDetails
Brand Teltonika
Part Number PR1KC640
Product Type Outdoor 5G/GNSS/Wi‑Fi Combo Antenna
Mobile Frequency Range 617–960 / 1710–2690 / 2900–4200 MHz
Wi‑Fi Frequency Range 2400–2483.5 / 4900–5925 MHz
GNSS Frequency Range 1164–1300 / 1559–1610 MHz
Antenna Gain 4.0 dBi (mobile & Wi‑Fi)
GNSS LNA Gain 40 ± 2 dB
Impedance 50 Ω
Connectors 4× SMA (mobile), 2× RP‑SMA (Wi‑Fi), 1× SMA (GNSS)
Cable Length 7× 3000 mm LMR100
Mounting Screw roof mount
Ingress Protection IP67 (excluding cable outlets)
Operating Temp. −40 °C to +85 °C
Dimensions 189 × 182 × 85 mm (7.44 × 7.17 × 3.35 in)
Weight 0.96 kg (2.12 lbs)
