APC SYBT5 Symmetra LX Battery Module View larger

APC SYBT5 Symmetra LX 120 V Battery Module

New

In Stock

120 V battery module for Symmetra LX
×




$999.00

  • New

Detailed Specifications

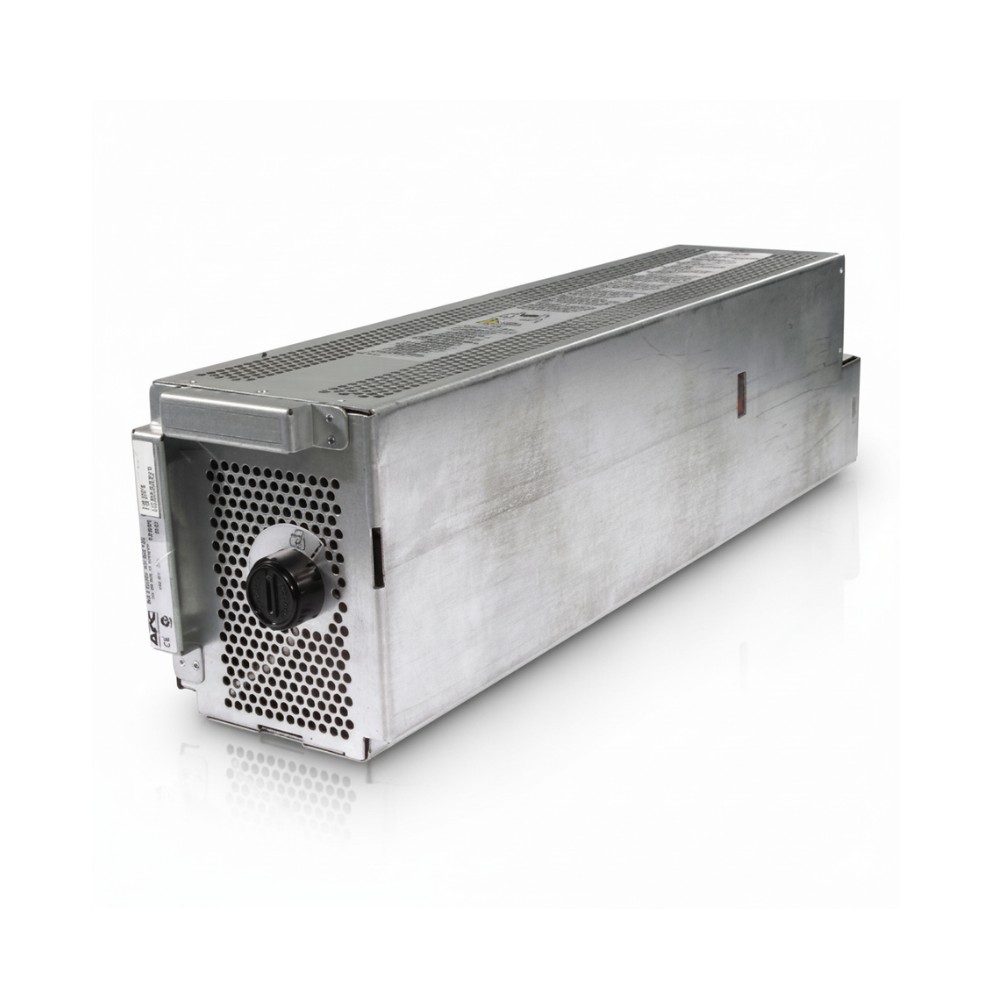

APC SYBT5 – Symmetra LX 120 V Battery Module

Overview

The APC SYBT5 is a sealed lead-acid battery module designed to extend the runtime of Symmetra LX UPS frames. It delivers 120 V nominal voltage per module and is built for hot-swappable replacement without shutting down the system. Deploying multiple SYBT5 modules (3 to 9 units depending on system) enables extended runtime during outages. The SYBT5 integrates into APC’s battery monitoring so that the UPS can report module status, failure, and replacement alerts.

Key Features

  • 120 V nominal battery module for Symmetra LX extended-run configurations

  • Hot-swap capable to replace a module without downtime when the system supports redundancy

  • Module weight ~29.1 kg ensures solid battery energy density for runtime extension

  • Compact module footprint (140 mm × 210 mm × 546 mm) fits in standard Symmetra XR rack frames

Technical Specifications

SpecificationDetail
Brand APC / Schneider Electric
Part Number SYBT5
Product Type Battery Module (UPS extension)
Key Spec 1 Nominal Voltage: 120 V per module
Key Spec 2 Weight (net): ~29.1 kg
Key Spec 3 Dimensions (H × W × D): 140 mm × 210 mm × 546 mmZ
Management Monitored and managed via Symmetra LX UPS control system
Power Requirements No external power—connects to internal battery bus of UPS frame
Dimensions & Weight See Key Spec 3 and Key Spec 2 above
