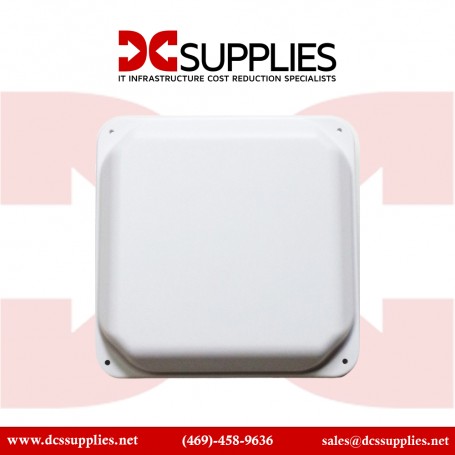

HPE ARUBA JW034A ANT-3X3-D100 OUTDOOR MIMO ANTENNA

New

HPE ARUBA JW034A ANT-3X3-D100 OUTDOOR MIMO ANTENNA
×




  • New

Detailed Specifications

HPE JW034A

Aruba JW034A ANT‑3X3‑D100 Outdoor MIMO Sector Antenna – 5 dBi, Dual‑Band (2.4/5 GHz)

The HPE Aruba JW034A ANT‑3X3‑D100 is a commercial-grade, dual-band outdoor sector antenna designed to deliver reliable MIMO performance in outdoor Wi‑Fi deployments. With broad 90° coverage and 5 dBi gain, it’s a perfect match for Aruba outdoor APs and mesh backhaul scenarios.

Features

Optimized for enterprise and municipal Wi‑Fi networks, the JW034A features 3×3 spatial streams and multi-polarized antenna elements (vertical and ±45°). This broad coverage makes it ideal for sectors requiring even signal distribution over open areas like campuses, plazas, and public venues.

Advanced Options

Its rugged aluminum housing and versatile mounting options simplify deployment on poles or walls.Engineered for dual-band operation across 2.4–2.5 GHz and 4.9–6.0 GHz, it supports both client access and AP-to-AP mesh connectivity. The three N‑Type female connectors allow seamless integration with Aruba outdoor AP cables or third-party RF solutions.

Product Key Features

  •  3×3 MIMO, multi‑polarized for improved throughput and reliability

  •  5 dBi gain with wide 90° horizontal × 90° vertical beamwidth

  •  Covers 2.4–2.5 GHz & 4.9–6.0 GHz bands—ideal for Wi‑Fi access

  •  3× N‑Type female connectors, 50 Ω impedance; supports high‑power input

  •  Pole/wall mountable, rugged aluminum housing with plastic radome

  •  Outdoor‑rated: –45 °C to +70 °C, 20 W power handling

Reliability & Performance

This antenna handles up to 20 W input power and maintains VSWR ≤ 2:1 across both frequency bands Rated for harsh outdoor environments (–45 °C to +70 °C) and equipped with a robust mount set, it ensures dependable long-term operation. The wide beamwidth effectively balances coverage and interference control, making it ideal for high-density sectors.

Key Features :

    • 3×3 MIMO, multi-polarized design for enhanced throughput

    • 5 dBi gain with 90° × 90° wide beam pattern

    • Covers 2.4–2.5 GHz and 4.9–6.0 GHz

    • Three 50 Ω N‑Type female connectors

    • Durable aluminum body; wall or pole mount included

    • Operates in extreme temperatures (–45 °C to +70 °C); handles up to 20 W

SpecificationDetails
Model Number JW034A
Product Type Outdoor Sector Antenna, 3×3 MIMO
Frequency Range 2.4–2.5 GHz & 4.9–6.0 GHz
Antenna Gain 5 dBi
Beamwidth (H × V) 90° × 90°
Polarization Vertical & slant ±45°
Connectors 3× N‑Type female, 50 Ω
Maximum Input Power 20 W
VSWR ≤ 2:1
Housing Aluminum body, plastic radome
Mounting Pole or wall (hardware included)
Dimensions (Ø × D) 200 × 33 mm (7.9″ × 1.25″)
Weight ~0.8 kg (1.76 lb)
Operating Temperature –45 °C to +70 °C
