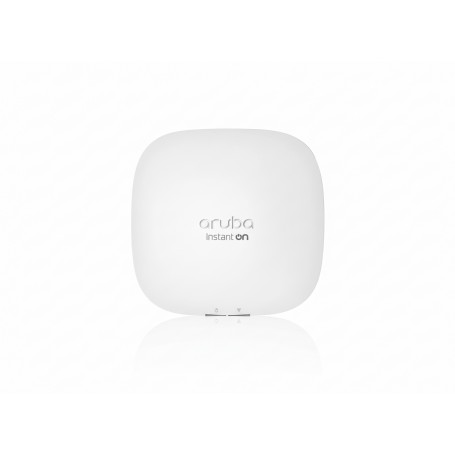

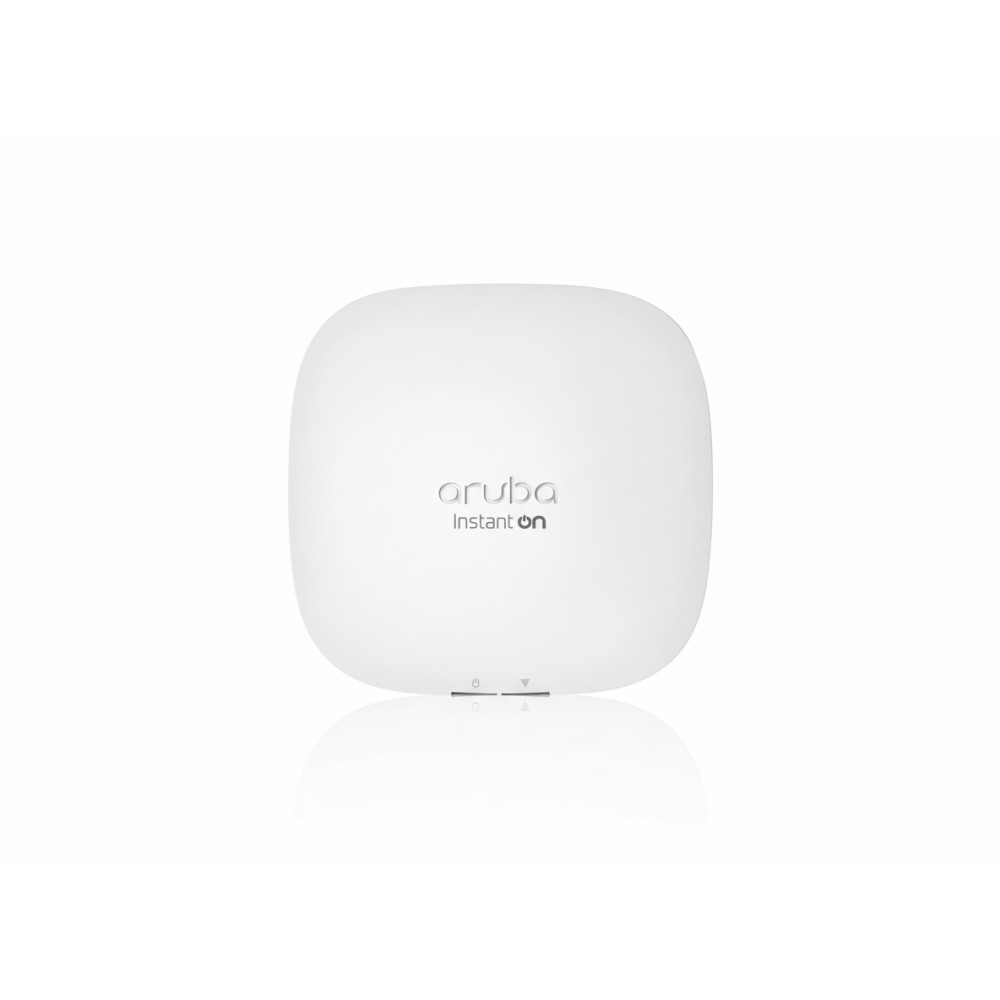

HP Aruba R4W01A Instant On wireless access point View larger

HP Aruba R4W01A Instant On wireless access point

New

In Stock

HPE Aruba Instant ON AP22 (US)  Wireless access point Bluetooth Wi-Fi 6 - 2.4 GHz
×




$218.00

  • New

Detailed Specifications

HPE Aruba

R4W01A

Instant On AP22 Wi‑Fi 6 Indoor Wireless Access Point

The HPE Aruba R4W01A Instant On AP22 Wi‑Fi 6 Access Point delivers lightning-fast, business-grade wireless connectivity tailored to small and growing environments. Featuring dual‑band 802.11ax technology with 2×2 MIMO, the AP22 achieves peak aggregate throughput of 1.7 Gbps—1.2 Gbps on 5 GHz and 574 Mbps on 2.4 GHz—making it ideal for busy home offices, co-working spaces, cafés, retail outlets, and classrooms . With seamless setup via the mobile app or cloud portal, robust WPA2/WPA3 security, guest network options, and no extra license fees, this access point is perfect for IT professionals and tech-savvy users seeking reliable, scalable connectivity without complexity.

Features

The AP22 features two internal down‑tilt omnidirectional antennas, delivering strong coverage with antenna gains of 4.3 dBi (2.4 GHz) and 5.6 dBi (5 GHz) . Utilizing Wi‑Fi 6 enhancements—OFDMA, MU‑MIMO, 1024‑QAM, Target Wake Time, and BSS Coloring—it supports higher throughput and energy efficiency, especially in dense device environments. A Bluetooth Low‑Energy radio boosts device onboarding and mesh deployment, while a built‑in gigabit Ethernet uplink supports both PoE (802.3af Class 3) and 12 V DC powering

Advanced Options

Easy mounting is possible on walls or ceilings using the included clip, with additional aesthetic accessories available . Device management is streamlined through the Aruba Instant On app or cloud portal—offering setup, monitoring, guest controls, application visibility, and LAN segregation without extra charges. Users report setup under 10 minutes and gigabit‑class wireless speeds, with reliable performance even in home/flex‑office environments

Product Key Features

  • Dual‑band Wi‑Fi 6 (802.11ax), 2×2 MU‑MIMO

  • Aggregate data rate: 1.7 Gbps (5 GHz: 1.2 Gbps; 2.4 GHz: 574 Mbps)

  • Key Wi‑Fi 6 features: OFDMA, MU‑MIMO, 1024‑QAM, TWT, BSS Coloring

  • Integrated Bluetooth Low‑Energy for mesh and onboarding

  • Uplink: 1× Gigabit Ethernet with PoE‑in (802.3af Class 3) or 12 V DC

  • Enterprise-grade security: WPA2, WPA3, Enhanced Open

  • Guest network with captive portal support

  • Easy mounting options; aesthetic flush mount optional

  • Management via mobile app or cloud portal (no license fee)

Reliability & Performance

Engineered for dependable, high-density performance, the AP22’s metal chassis enhances durability and thermal efficiency, supporting up to 75 connected clients per radio. With an MTBF of approximately 795,000 hours (91 years) at 25 °C, the device is built for long-term deployment Users praise the AP22 for its intuitive setup and rock-solid performance—even in challenging home networks—achieving consistent 700–800 Mbps real-world speeds on 5 GHz . Automatic mesh networking allows the AP22 to seamlessly extend wireless coverage to hard-to-wire areas without additional cabling, ideal for flexible deployment scenarios Security and traffic management features are built-in: WPA3 encryption, guest SSIDs, VLAN segmentation, app visibility, and content control are available out-of-the-box—no extra fees . Moreover, certifications for medical environments (EN 60601‑1‑1/‑2) and network safety make it suitable for healthcare, education, and retail applications

Key Features (Bullet List)

  • Dual‑band 802.11ax (Wi‑Fi 6), 2×2 MU‑MIMO

  • Combined 1.7 Gbps throughput

  • OFDMA, TWT, MU‑MIMO, 1024‑QAM, BSS Coloring

  • Integrated BLE for onboarding/mesh

  • PoE‑in (802.3af) + 12 V DC options

  • WPA2/WPA3/Enhanced Open security

  • Guest networks and captive portal support

  • Mobile/cloud app management

  • Medical-grade certifications (EN 60601‑1‑1/‑2)

  • Rugged metal chassis, flush‑mount option

Specifications :

SpecDetails
Model Number R4W01A
Type Indoor Wi‑Fi 6 Access Point
Wi‑Fi Standard IEEE 802.11ax (Wi‑Fi 6), backward-compatible
Radio Configuration 2×2:2 MIMO per band (2.4 GHz & 5 GHz)
Peak Throughput 5 GHz: 1.2 Gbps; 2.4 GHz: 574 Mbps; Total: 1.7 Gbps
Antenna Gain 2.4 GHz: 4.3 dBi; 5 GHz: 5.6 dBi
Ethernet Port 1× RJ‑45 Gigabit (PoE‑in 802.3af Class 3)
Power Options 12 V DC; PoE‑in
Physical Size 160 × 160 × 37 mm (6.3″ × 6.3″ × 1.5″)
Weight ~500 g (1.1 lb)
Operating Temp 0–40 °C (32–104 °F)
MTBF 795,000 hrs
Certifications Wi‑Fi Alliance, EN 60601‑1‑1/‑2, WPA3
Security Protocols WPA2, WPA3, Enhanced Open
Mounting Wall/ceiling mount clip; optional flush mount
Mesh Support Yes, with BLE
Client Support Up to 75 clients per radio
Warranty 2 years (first 90 days 24×7 phone support)
