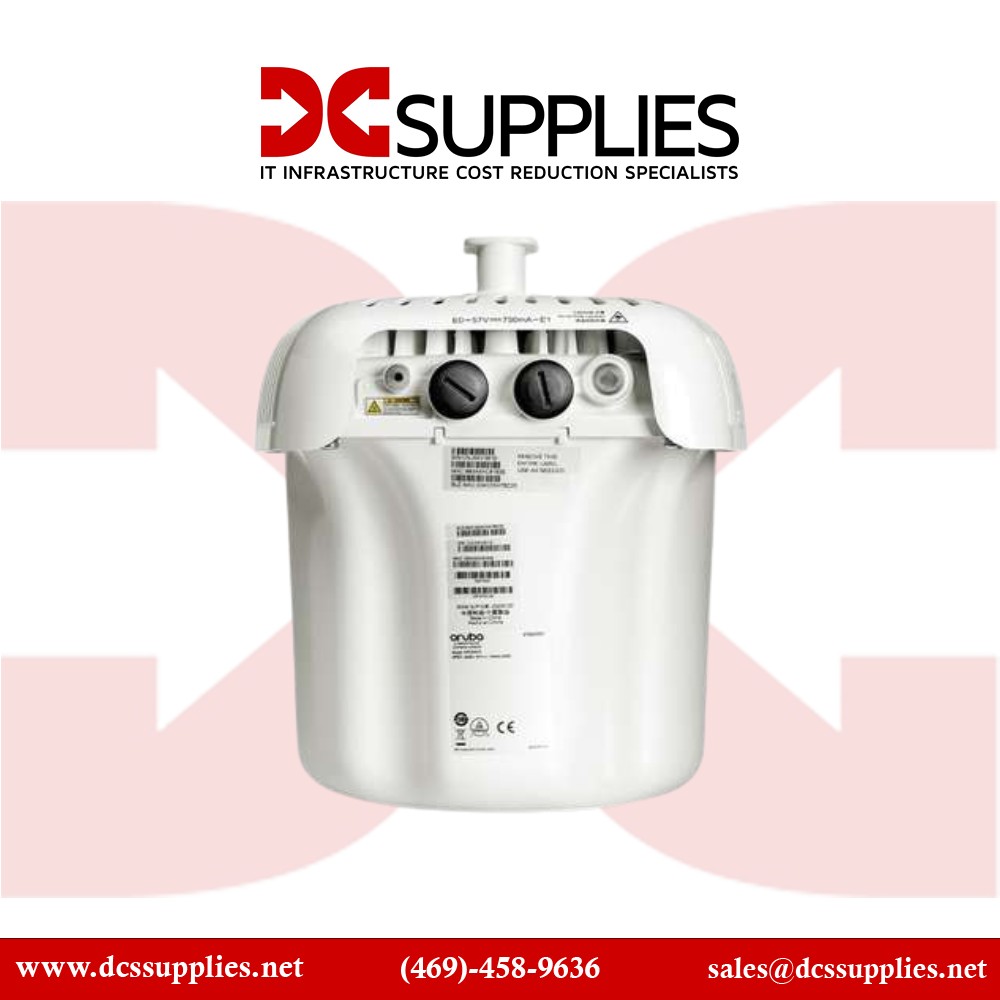

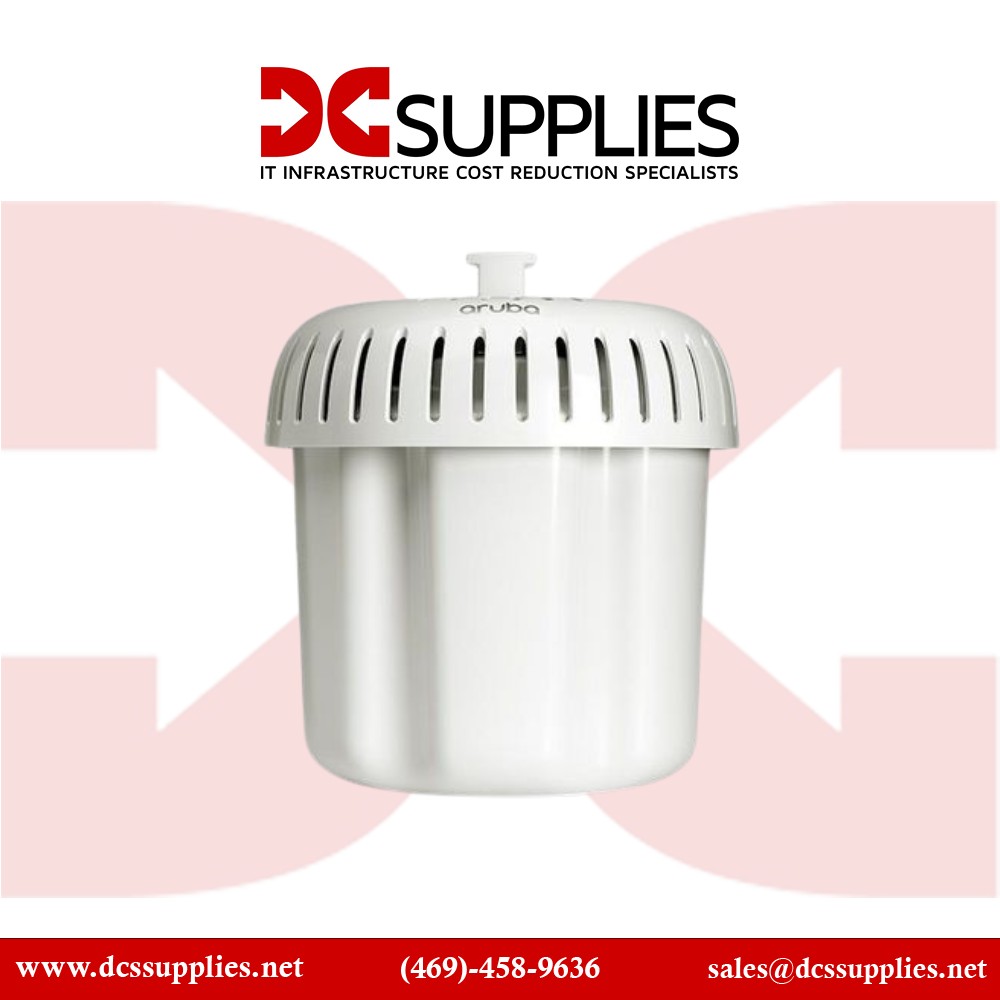

HPE Aruba JZ163A AP-374 Outdoor wireless access point

New

HPE Aruba JZ163A AP-374 Connectors Outdoor wireless access point

×




  • New

Detailed Specifications

HPE Aruba JZ163A

AP-374 Outdoor Wireless Access Point

The HPE Aruba JZ163A AP-374 is an outdoor wireless access point engineered to withstand the most demanding environmental conditions. Designed for large-scale outdoor deployments, it delivers high-speed Wi-Fi 5 (802.11ac) connectivity alongside Bluetooth beacon capabilities, enabling location-based services, remote management, and enhanced user experiences in industries such as hospitality, transportation, and large campus environments.

Features :

Built with durability in mind, the Aruba AP-374 features a rugged, sealed housing resistant to extreme temperatures, moisture, and airborne contaminants. Its industrial-grade surge protection ensures stable operation even during electrical disturbances. Supporting 802.11ac Wave 2, it offers multi-user MIMO (MU-MIMO) and four spatial streams for high-density, high-throughput wireless networks that are essential for outdoor public spaces, stadiums, or campuses.

Advanced Options :

The device’s flexible mounting options—including pole, ceiling, and wall mount—allow for seamless integration into diverse outdoor environments. Its built-in Bluetooth Aruba Beacon enhances location awareness, enabling proximity-based notifications, asset tracking, and indoor navigation. The AP can be centrally managed via Aruba’s network management platform, simplifying deployment, monitoring, and troubleshooting for large outdoor wireless networks. With dual-band support and combined data rates up to 2 Gbps, it handles high traffic efficiently.

Product Key Features

  • Purpose-built for harsh outdoor environments with a rugged, sealed enclosure
  • Dual-band support with combined data rates up to 2 Gbps
  • Supports 802.11ac Wave 2 with 4x4 MU-MIMO and 160 MHz channel bandwidth
  • Integrated Bluetooth 5 and Zigbee radios for IoT integrations (Correction: Based on provided specs, only Bluetooth Beacon is explicitly mentioned, not Zigbee. If Zigbee is indeed supported by JZ163A, please provide updated specs.)
  • Gigabit Ethernet port with PoE support and surge protection for reliable outdoor deployment
  • Pole, ceiling, and wall mountable design for flexible installation

Reliability & Performance :

Designed to operate in extreme conditions, the Aruba AP-374 features an IP66-rated enclosure and surge protection on all electrical interfaces, ensuring resilience against weather, moisture, and electrical surges. Its advanced beamforming and MU-MIMO technologies optimize signal strength and coverage, even in high-density outdoor settings. The device’s PoE support reduces cabling complexity, while the rugged construction guarantees continuous operation in environments with temperature fluctuations, rain, or dust. This makes it a highly reliable solution for mission-critical outdoor wireless deployments.

Key Features :

  • Ruggedized outdoor AP with sealed, weatherproof enclosure
  • Dual-band support with up to 2 Gbps combined throughput
  • 802.11ac Wave 2 with 4x4 MU-MIMO and VHT160 support
  • Integrated Bluetooth Aruba Beacon for location and proximity services
  • Surge-protected Gigabit Ethernet port with PoE support
  • Flexible mounting options: pole, ceiling, wall
  • High durability for extreme temperatures and moisture
  • Centralized management with Aruba network solutions
  • Supports advanced beamforming and client optimization
  • Compact, pole-mountable design

Specifications :

SpecificationDetails
Model Number JZ163A
Product Type Outdoor Wireless Access Point
Network Band Dual Band (2.4 GHz & 5 GHz)
Wireless Standard IEEE 802.11ac Wave 2
Antenna Support External antennas (pole-mountable)
Wireless Transmission Speed Up to 2 Gbps (aggregate)
Ethernet Technology Gigabit Ethernet
Number of RJ-45 Ports 1
Power over Ethernet (PoE) Yes, with surge protection
Dimensions Height: 5.5", Width: 9.1", Depth: 9.4"
Mounting Options Pole, ceiling, wall mounting
Operating Environment -40°C to 55°C, IP66-rated enclosure
Bluetooth Beacon Yes, integrated for location and proximity services
