HPE Aruba R4W49A Bluetooth Wireless Access Point View larger
Previous Next

HPE Aruba R4W49A Bluetooth Wireless Access Point

New

In Stock

HPE Aruba R4W49A Wi-Fi 6 Wireless Access Point
×




$1,335.00

  • New

Detailed Specifications

HPE R4W49A

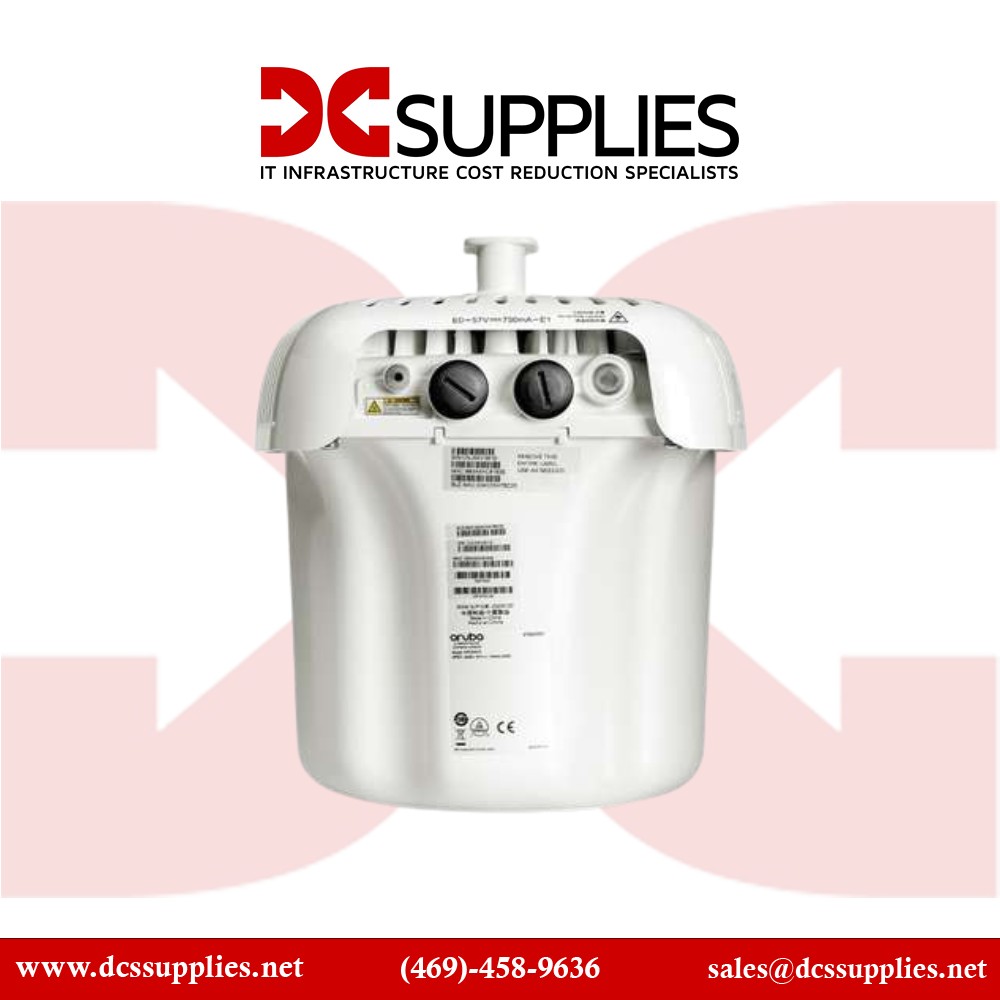

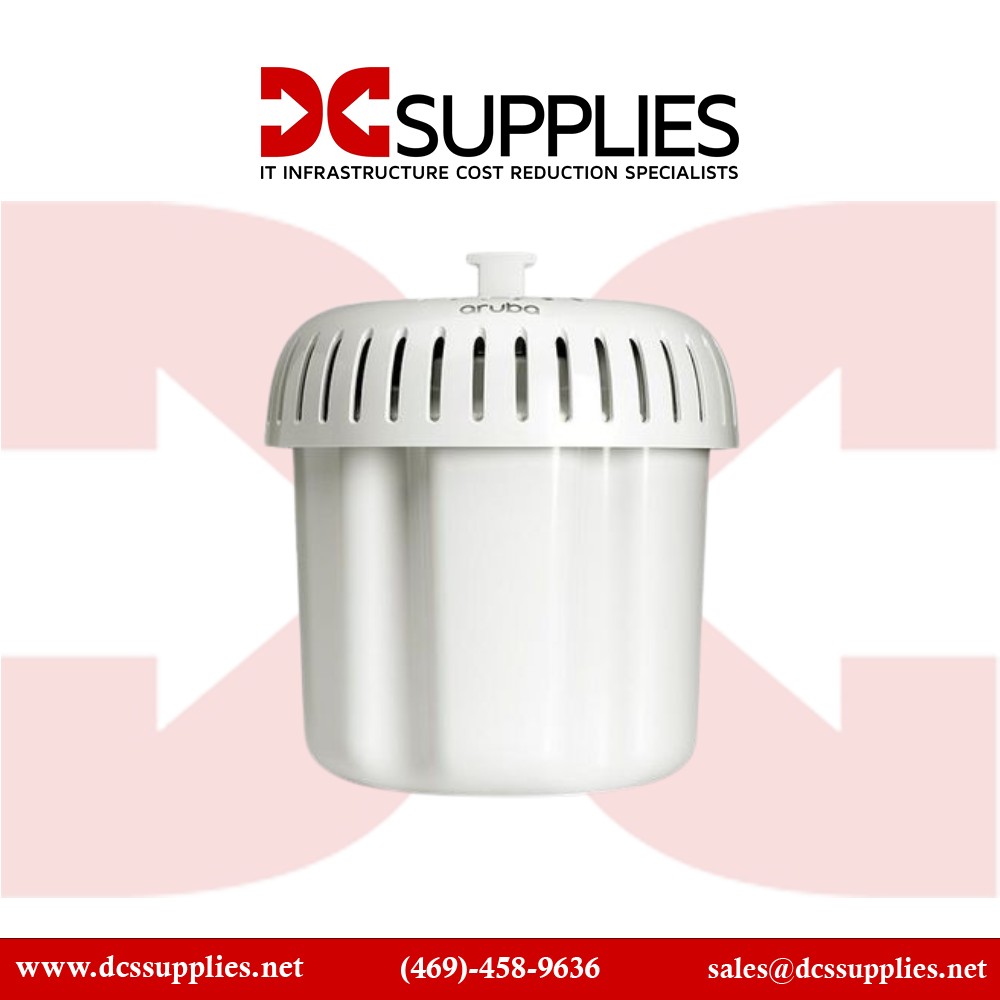

Aruba AP‑567 Outdoor Wi‑Fi 6 Access Point

The HPE Aruba AP‑567 (R4W49A) provides enterprise-grade Wi‑Fi 6 performance in a rugged outdoor build. Designed for outdoor venues, campuses, and industrial sites, it combines reliable Wi‑Fi connectivity, integrated IoT support, and robust durability to meet demanding deployment scenarios with ease.

Features

This directional outdoor AP leverages dual‑band Wi‑Fi 6 with OFDMA and MU‑MIMO to deliver up to 1.49 Gbps aggregate throughput, ideal for medium‑density environments. Aruba’s ClientMatch technology optimizes client distribution

Advanced Options

to minimize coverage gaps and interference Built with IP66 ingress protection and designed to endure −40 °C to +65 °C and 165 mph winds, it’s equipped to handle environmental extremes while offering industrial‑grade surge protection .

Product Key Features

    •  Dual‑band Wi‑Fi 6 (802.11ax) with 2×2 MU‑MIMO & OFDMA — up to 1.49 Gbps aggregate

    •  Integrated directional antennas (90° HxV) for focused outdoor coverage

    •  Built-in Bluetooth 5 & Zigbee (802.15.4) IoT radios for location services and sensor networking

    •  IP66 weatherproof enclosure, survives −40 °C to +65 °C and 165 mph wind conditions

    •  Industrial-grade surge protection on all ports

    •  Single Gigabit PoE+ (802.3at) powered for easy deployment

Reliability & Performance

The AP‑567 features Bluetooth 5 and Zigbee radios, facilitating IoT services like asset tracking and sensor networks. It incorporates Target Wake Time (TWT) to conserve device battery life . With support for WPA3, Dynamic Segmentation, and Policy Enforcement Firewall, the AP ensures secure and efficient network management—ideal for hybrid enterprise deployments.

Key Features :

  • Dual‑band 802.11ax Wi‑Fi 6 (2×2 MU‑MIMO, OFDMA)

  • Approx. 1.49 Gbps combined wireless throughput

  • Directional antenna design (90° H×H configuration)

  • Integrated Bluetooth 5 & Zigbee 802.15.4 radio

  • Rugged IP66 housing; −40 °C to +65 °C; 165 mph wind rating

  • Industrial surge protection on Ethernet and power feeds

  • Single Gigabit RJ‑45 PoE+ port for data and power

SpecificationDetails
Model Number R4W49A (AP‑567 US)
Product Type Outdoor Wi‑Fi 6 Access Point (Directional)
Wi‑Fi Standard IEEE 802.11ax (Wi‑Fi 6)
Max Throughput 1.49 Gbps (HE80/HE20)
Antenna Configuration Integrated directional (90° H×V)
MIMO / OFDMA 2×2 MU‑MIMO, OFDMA
IoT Radios Bluetooth 5; Zigbee 802.15.4
Rugged Specs IP66; −40 °C to +65 °C; 165 mph wind; dust/moisture ingress protection
Surge Protection Industrial-grade on Ethernet/power inputs
Ethernet Port 1× Gigabit RJ‑45 PoE+ (802.3at)
Power PoE+ powered via single cable, up to 30 W
Security WPA3, Enhanced Open, Policy Enforcement Firewall
Mounting Options Pole, wall, or ceiling bracket compatible
Dimensions ~6.5″ × 6.5″ × 4.3″ (165 × 165 × 110 mm)
Weight ~2.4 lb (1.1 kg)
