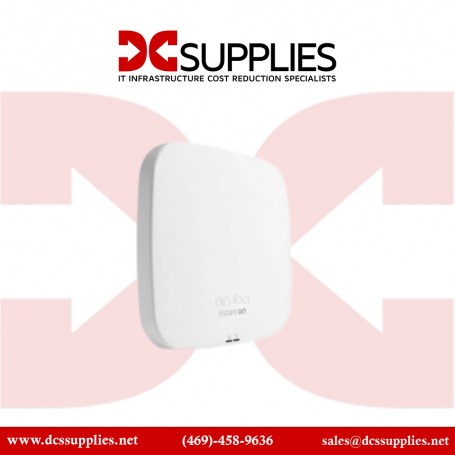

HPE Aruba R4W34A Networking White Power Wireless Access Point

New

HPE Aruba R4W34A 4800 Mbit/s Power Wireless
×




  • New

Detailed Specifications

HPE R4W34A

Aruba AP‑575EX (US) Hazardous‑Location Wi‑Fi 6 Access Point

The HPE Aruba AP‑575EX (R4W34A) is a rugged, industrial-grade wireless access point delivering high‑performance Wi‑Fi 6 connectivity in the toughest environments—ideal for oil & gas, mining, and manufacturing industries requiring secure, high‑speed coverage alongside IoT integration.

Features

Built to withstand hazardous conditions, the AP‑575EX offers dual radio Wi‑Fi 6 with multi-user MIMO and OFDMA, ensuring consistent coverage and efficient air‑time usage even in dense client deployments.

Advanced Options

Its ruggedized design (IP66/67, Class 1 Div 2, ATEX Zone 2) allows operation in extreme temperatures and environments where flammable gases or contaminants are present .

Product Key Features

  •  Dual‑band Wi‑Fi 6 (802.11ax) with 4×4 MU‑MIMO & OFDMA, up to 4.80 Gbps aggregate

  •  Class 1 Division 2 / ATEX Zone 2 certified for hazardous/outdoor environments

  •  Integrated Bluetooth 5 & Zigbee radio for IoT, asset tracking, and location services

  •  Aruba ClientMatch, Policy Enforcement Firewall, WPA3, and Secure Boot

  •  Ruggedized IP66/67 enclosure built for extreme temperatures (−40 °C to +65 °C) and industrial shock

  •  Dual PoE‑PD (802.3at/bt), SmartRate 2.5 GbE + 1 GbE ports, USB‑C console port

Reliability & Performance

Equipped with Aruba’s ClientMatch and Policy Enforcement Firewall, it dynamically optimizes client associations and enforces network segmentation with strong encryption protocols including WPA3 and Enhanced Open . Power failure resistance is reinforced by dual PoE‑PD support and SmartRate 2.5 GbE ports, ensuring connectivity even under limited power budgets.

Key Features :

    • Dual‑band 802.11ax Wi‑Fi 6 (4×4 MU‑MIMO + OFDMA)

    • Aggregate 4.80 Gbps wireless throughput

    • Class 1 Div 2 / ATEX Zone 2 certified rugged housing

    • Integrated Bluetooth 5 & 802.15.4 Zigbee radios

    • Aruba ClientMatch, PEF, WPA3, Secure Boot, TPM

    • PoE‑PD (dual‑port), SmartRate 2.5 GbE, +1 GbE Ethernet

    • IP66/67 ingress rating, −40 °C to +65 °C operating range

SpecificationDetails
Model Number R4W34A (AP‑575EX US)
Product Type Outdoor Hazardous‑Location Wi‑Fi 6 Access Point
Wi‑Fi Standard IEEE 802.11ax (Wi‑Fi 6)
Max Throughput 4.80 Gbps aggregate (HE80/HE40)
MIMO / OFDMA 4×4 MU‑MIMO (5 GHz), 2×2 MIMO (2.4 GHz)
Bluetooth / Zigbee Bluetooth 5 & 802.15.4 Zigbee radio integrated
Certifications Class 1 Div 2, ATEX Zone 2
Enclosure Rating IP66/67 rugged housing
Ethernet Ports 1× SmartRate 2.5 GbE PoE‑PD + 1× 1 GbE PoE‑PD, USB‑C console
PoE Power 802.3at/bt Class 4 dual‑port POE‑PD
Security TLS/SSL, WPA3, Enhanced Open, PEF, Secure Boot, TPM
Operating Temp −40 °C to +65 °C
Environmental IP66/67, ATEX, surge protection
Dimensions 9.4″ × 9.4″ × 10.6″ (W×D×H)
Weight ~5.5 lbs (2.5 kg)
