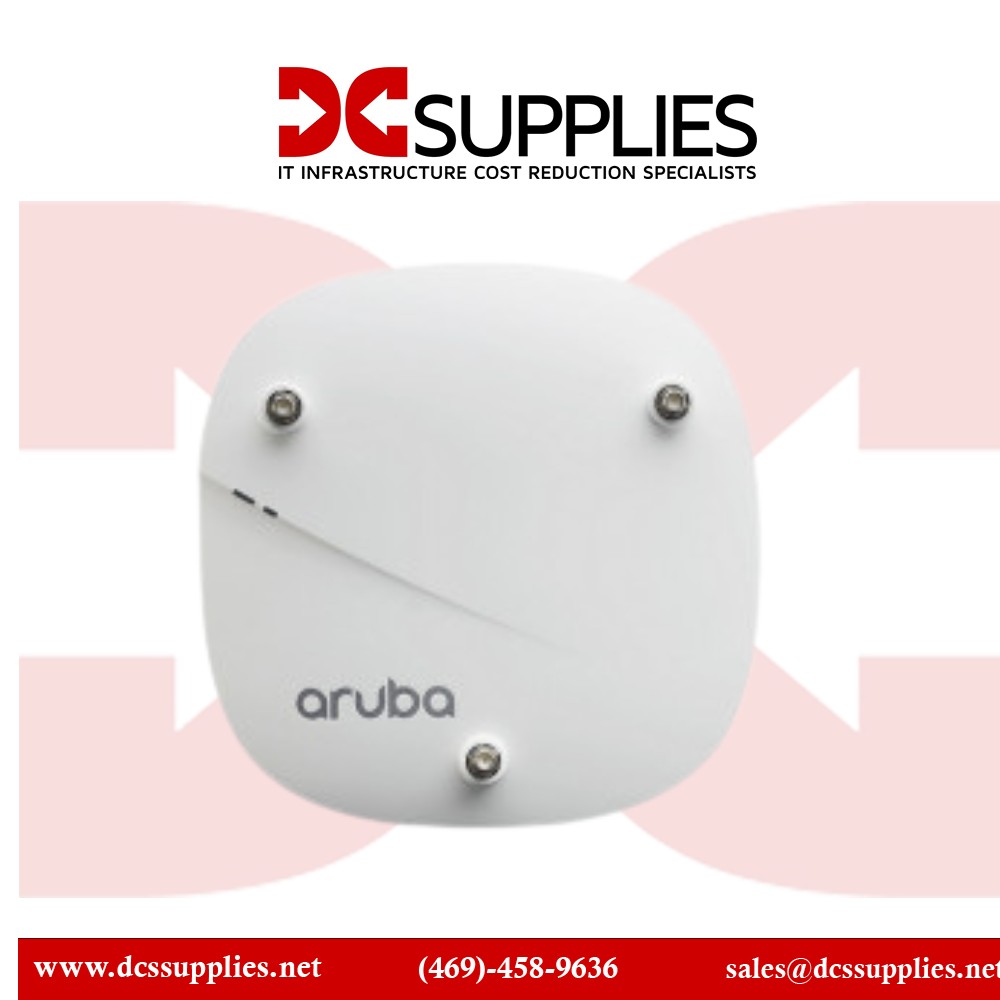

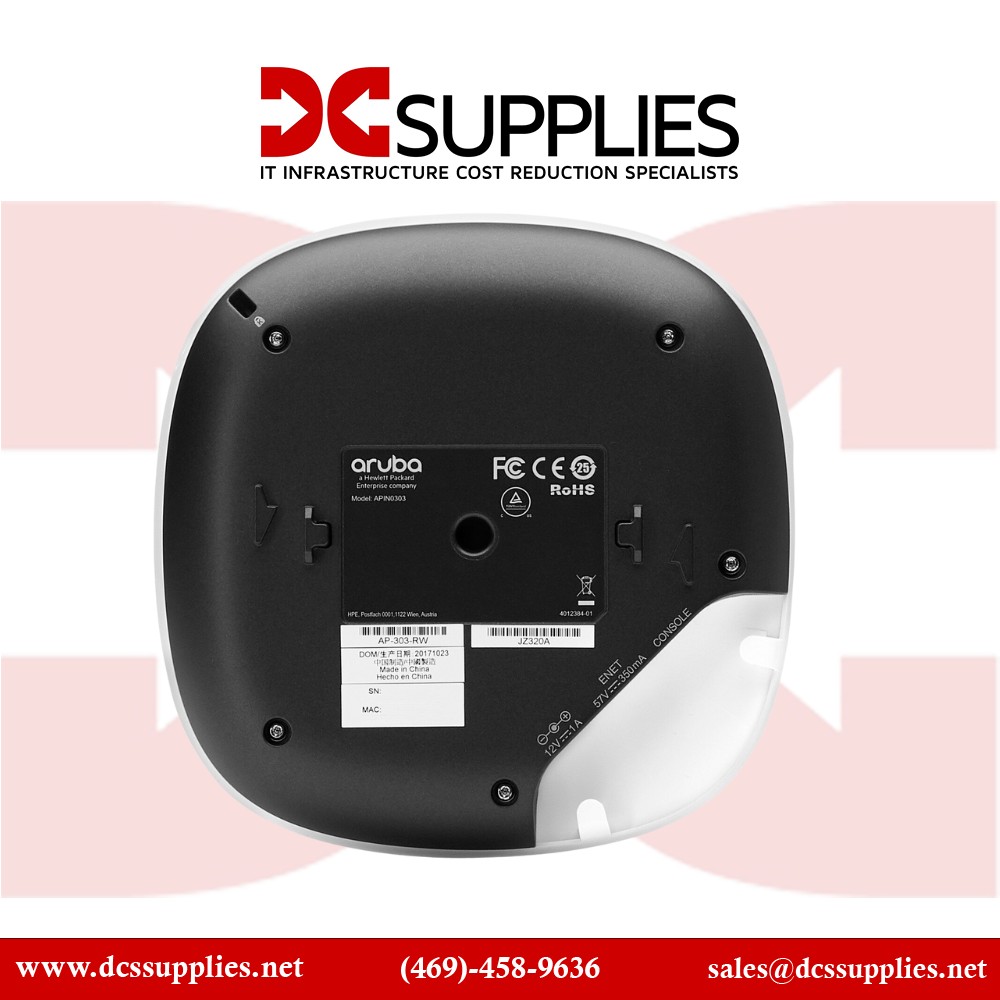

HPE Aruba JZ321A AP-303 Unified Wireless Access Point

New

HPE Unified AP with dual 2x2:2 MU-MIMO radios for enhanced performance
×




  • New

Detailed Specifications

HPE JZ321A

Aruba JZ321A AP-303 Unified Wireless Access Point – Dual-Radio Wi-Fi 5 (802.11ac Wave 2), 2x2:2 MIMO

The HPE Aruba JZ321A AP-303 is a cost-effective, dual-radio unified wireless access point built to deliver fast, reliable Wi-Fi 5 performance in medium-density enterprise environments. Supporting both controller-managed and Instant operating modes, it offers flexible deployment options with strong performance, robust security, and built-in IoT readiness.

Features

Ideal for offices, classrooms, and branch locations, the AP-303 features dual-band 2x2:2 MU-MIMO radios, offering a combined data rate of up to 1.2 Gbps (867 Mbps @ 5 GHz + 400 Mbps @ 2.4 GHz). Its Bluetooth Low Energy radio supports location-aware services and IoT device integration, enhancing your wireless infrastructure with minimal effort.

Advanced Options

The AP-303 runs on ArubaOS and can be deployed using either Aruba Central or Mobility Controllers. With support for ClientMatch, Adaptive Radio Management (ARM), and AirMatch, it ensures optimized performance even in crowded wireless environments. WPA3 and policy-based access control add layers of enterprise-class security.

Product Key Features

    • Dual-radio 802.11ac Wave 2 (Wi-Fi 5) access point

    • 2x2:2 MU-MIMO supports up to 867 Mbps on 5 GHz

    • Integrated Bluetooth Low Energy (BLE) for IoT applications

    • Unified AP design supports controller-based and Instant modes

    • PoE-powered via 802.3af for simplified deployments

    • Enterprise-grade WPA3 security and advanced RF management

Reliability & Performance

Designed for efficient power usage and high reliability, the AP-303 operates on standard 802.3af PoE, making it ideal for cost-sensitive or retrofit deployments. Its compact, fanless form factor and internal antennas offer flexibility in mounting while reducing visual and noise impact. Backed by Aruba's AI-powered management tools, it ensures long-term performance in dynamic enterprise networks.

Key Features :

  • Dual-radio 802.11ac Wave 2 (Wi-Fi 5) with 2x2:2 MIMO

  • Combined throughput up to 1.2 Gbps

  • Supports Instant and controller-managed modes

  • Built-in BLE for IoT and asset tracking

  • 1x GbE uplink port with 802.3af PoE support

  • ArubaOS with ClientMatch, ARM, and WPA3 security

SpecificationDetails
Model Number JZ321A (AP-303)
Product Type Unified Wireless Access Point
Wireless Standard IEEE 802.11ac Wave 2 (Wi-Fi 5)
MIMO Technology 2x2:2 MU-MIMO
Max Data Rate 1.2 Gbps (867 Mbps @ 5 GHz + 400 Mbps @ 2.4 GHz)
Radios Dual-band (2.4 GHz & 5 GHz)
Bluetooth Support Yes (BLE radio integrated)
Operating Modes Controller-managed & Instant
Ethernet Interface 1× 10/100/1000BASE-T (PoE-in)
PoE Standard 802.3af (Class 2)
Antennas Integrated Omni-directional
Dimensions 6.3 × 6.3 × 1.6 in (160 × 160 × 41 mm)
Weight ~0.85 lb (380 g)
