APC AR7721 Vertical Cable Manager for NetShelter SX 600mm Wide 42U View larger
Previous Next

APC AR7721 Vertical Cable Manager for NetShelter SX 600mm Wide 42U

New

Vertical cable management accessory for NetShelter SX 600mm Wide 42U racks
×




  • New

Detailed Specifications

APC

AR7721

Vertical Cable Manager – 600 mm Wide 42U NetShelter SX – 2‑Pack

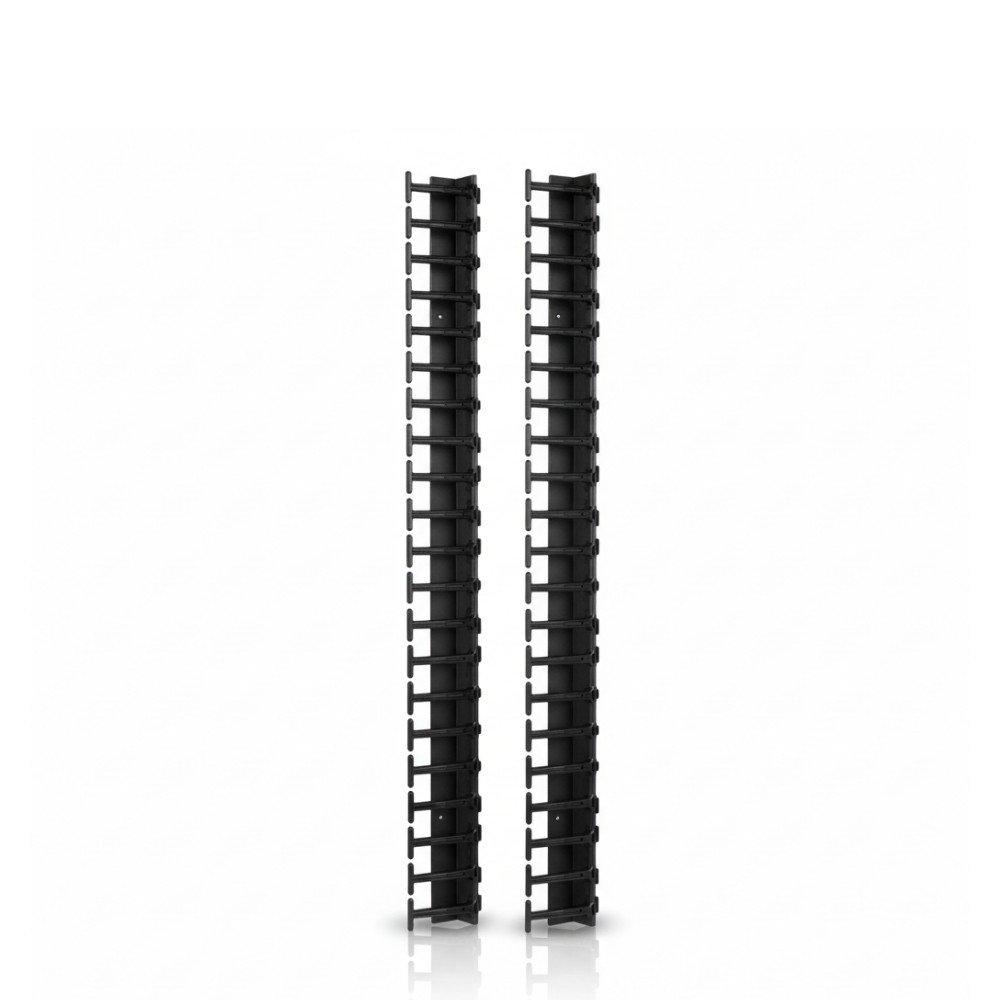

The APC AR7721 Vertical Cable Manager is a high-quality side-access cable organization solution designed specifically for 600 mm wide, 42 U NetShelter SX enclosures. Sold as a set of two, each unit features vertical cable routing channels with smooth plastic fingers spaced at 1 U increments, ensuring cables are neatly organized, supported, and protected from stress. Whether you're managing patch cables, power cords, or fiber bundles, the AR7721 enables IT professionals and data center operators to maintain clean, efficient, and professional rack installations while preserving airflow and accessibility.

Features

In modern data centers and telecom environments, cable management is not just about aesthetics—it’s vital for performance, maintainability, and thermal efficiency. The AR7721 delivers a thoughtfully engineered solution, guiding cables vertically along the side of NetShelter SX racks. With dimensions of 889 mm (35″) in height, 107 mm (4.21″) width, and 45 mm depth, each unit accommodates full 42 U height coverage when paired together—perfect for use on a single side of a cabinet

Advanced Options

Installation is completely tool-free: snap each manager onto standard rack uprights using the included mounting hardware and secure with the top bracket. Six integrated cable retainers with snap-hinge features hold bundles firmly, prevent cable sag, and let you make changes without hassle. Built with durable black plastic, the AR7721 blends seamlessly with NetShelter SX systems and supports clean cable separation to improve both airflow and troubleshooting efficiency.

Product Key Features

  • Designed for 600 mm wide, 42 U NetShelter SX cabinets

  • Set of two vertical cable managers for one rack side

  • 1 U‑spaced cable routing fingers for organized bundling

  • Six snap-hinge cable retainers included

  • Easy, toolless installation and secure mounting bracket

  • Durable black plastic finish matches APC racks

Reliability & Performance

Constructed from resilient, high-grade plastic, the APC AR7721 offers long-lasting performance in commercial and data center environments. The snap-fit mounting mechanism ensures a stable attachment to rack uprights while remaining easy to remove or reposition during reconfigurations. The smooth cable routing fingers protect against abrasion and maintain proper bend radius to prevent signal degradation or cable damage over time. With six integrated retainers, cable runs are held securely without undue pressure—simplifying moves, adds, and changes. Careful cable management also enhances thermal efficiency. By keeping cables out of airflow pathways, the AR7721 minimizes obstruction and promotes better cooling performance—a crucial factor in high-density rack deployments. Environmentally conscious too, the product uses over 70 % recycled cardboard packaging and is fully recyclable. Backed by APC’s comprehensive 2-year warranty and globally recognized service reputation, this vertical cable manager is a dependable solution for professional rack installations.

Key Features (Bullet List)

  • Vertical cable management for NetShelter SX 600 mm 42 U racks

  • Two-piece set for full-height coverage

  • 1 U spaced cable-routing plastic fingers

  • Snap-hinge cable retainers (×6)

  • Tool-free installation, locking top bracket

  • Durable black plastic construction

Specifications :

SpecificationDetails
Model Number AR7721
Product Type Vertical Cable Manager – 2 units
Cabinet Compatibility NetShelter SX 600 mm wide, 42 U
Dimensions (H×W×D) 889 × 107 × 45 mm (35″ × 4.21″ × 1.77″)
Mounting Location Side of rack uprights, tool-free snap-on
Cable Routing Fingers Plastic, spaced every 1 U
Cable Retainers Included 6 snap-hinge retainers with secure holding
Material Durable black plastic
Weight 4.81 lb (2.18 kg)
Package Contents 2 managers, top bracket, 6 retainers, installation guide
Warranty 2-Year Manufacturer Warranty
Environmental Compliance TAA, RoHS, REACH; take-back program available
