New StarTech C10043-USB-EXTENDER 4 Port USB Extender Over Cat5 View larger

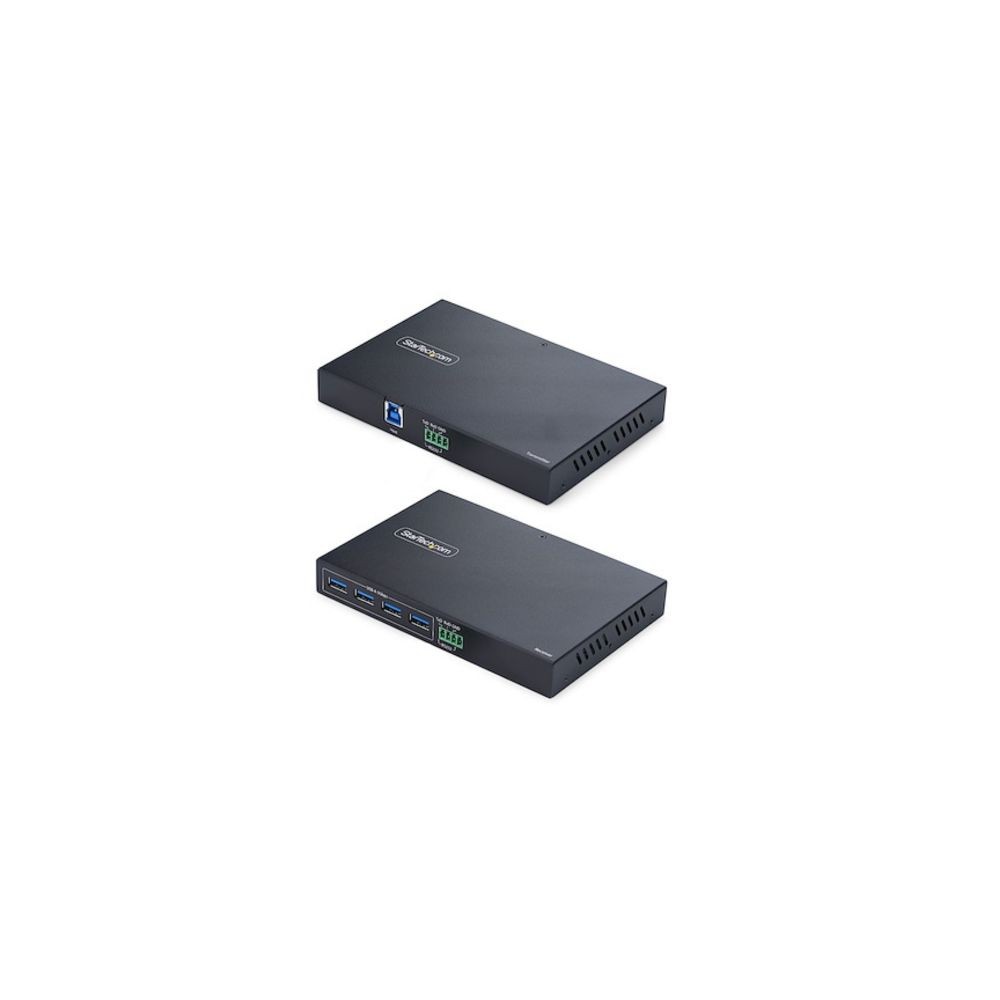

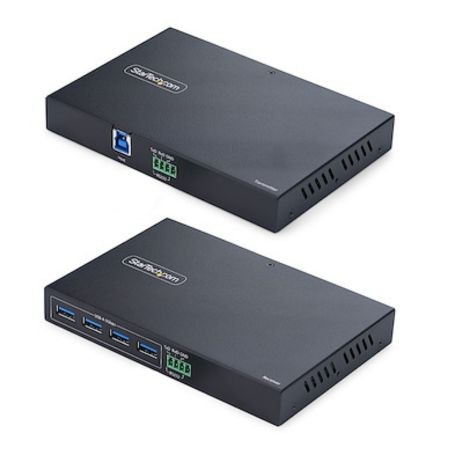

StarTech C10043-USB-EXTENDER 4 Port USB Extender Over Cat5

C10043-USB-EXTENDER

New

4-port USB over Cat5 extender
×




Detailed Specifications

StarTech C10043-USB-EXTENDER 4 Port USB Extender Over Cat5

overview

The StarTech C10043-USB-EXTENDER is a USB 2.0 extender system that enables remote USB device connectivity over Cat5e/Cat6 cabling, extending up to 100 m (328 ft) between host and remote endpoint. It converts a single USB host connection into four remote USB ports, allowing centralized system control while placing peripherals at a distance.

Designed for environments such as industrial control systems, security stations, kiosks, and remote workstation setups, it supports standard USB devices including keyboards, mice, storage, and cameras. The extender operates without drivers and maintains stable USB communication over long distances using structured cabling.

Deployment is suited for point-to-point USB extension scenarios where direct cabling is impractical. It is not intended for high-bandwidth USB 3.x applications, hub-chaining environments, or IP-based USB routing.

key features

  • extends USB 2.0 up to 100 m over Cat5e/Cat6
  • provides four remote USB ports at receiver end
  • plug-and-play operation with no driver required
  • stable long-distance USB connectivity solution
  • includes transmitter and receiver units

specifications

SpecificationDetail
Brand StarTech.com
Part Number C10043-USB-EXTENDER
Product Type USB over Cat5 extender
USB Standard USB 2.0
Downstream Ports 4 × USB-A (receiver)
Host Interface USB Type-B (transmitter)
Max Distance Up to 100 m (328 ft)
Cabling Cat5e / Cat6 UTP
Configuration Point-to-point
Units Included Transmitter + Receiver
Power External power adapters
Supported Devices HID, storage, USB peripherals
Operating Temp 0 °C to 40 °C
Compliance CE, FCC, RoHS
