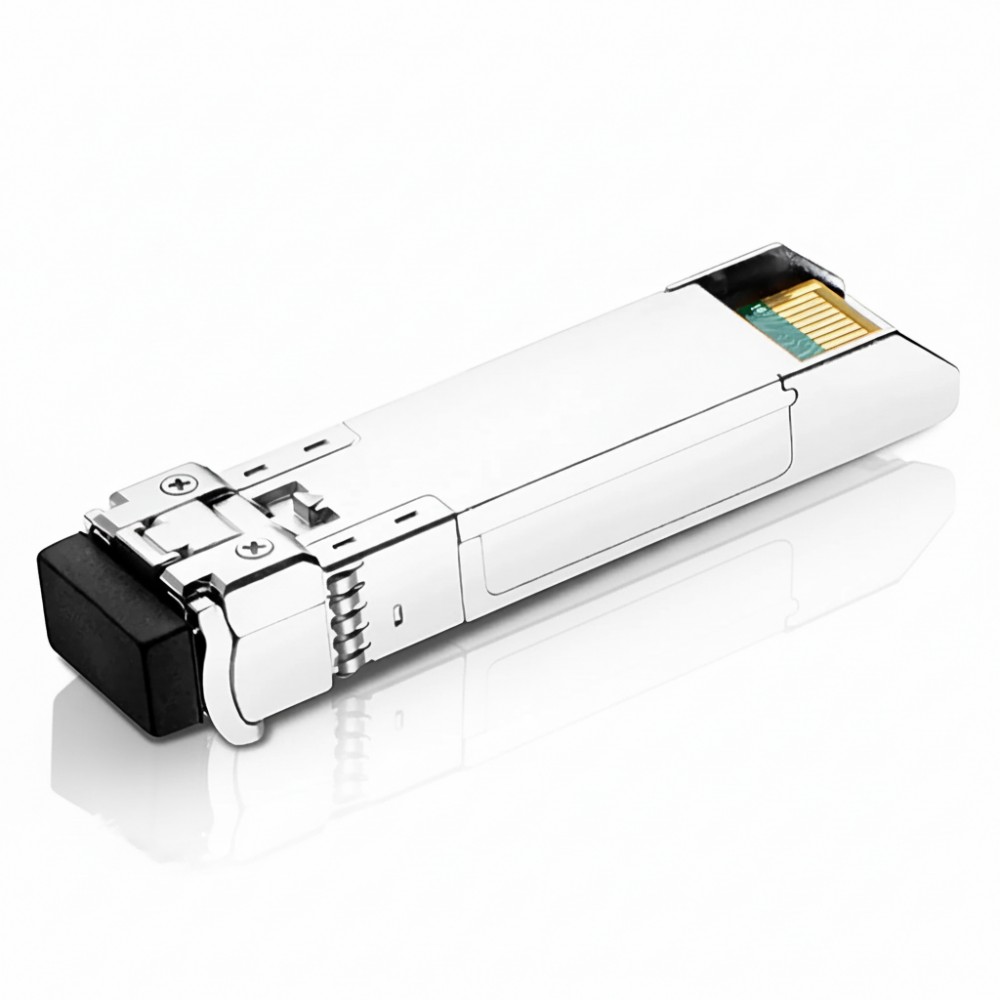

HPE AJ718A 8Gb Short Wave Fibre Channel SFP+ 1 Pack Transceiver Module View larger

HPE AJ718A 8Gb Short Wave SFP+ Transceiver Module

New

8 Gb Short-Wave Fibre Channel SFP+ transceiver (HPE AJ718A) for multimode fibre links up to ~300 m.
×




  • New

Detailed Specifications

HPE AJ718A 8Gb Short-Wave Fibre Channel SFP+ Transceiver

Overview

The HPE AJ718A is a hot-plug SFP+ optical module designed for fibre-channel SAN environments. Infrastructure engineers use it to upgrade or maintain FC fabric links at 8 Gb/s while retaining the existing multimode fibre infrastructure. It supports 850 nm wavelength over dual LC duplex connectors and is suited for short-wave applications up to approximately 300 meters on OM3 multimode fibre, or extending farther on OM4 fibre. This transceiver module is compatible with enterprise switches and storage arrays requiring an 8 Gb Fibre Channel short-wave (SW) SFP+ form factor and can be managed via diagnostics for signal quality and link health. It fits in server, storage or SAN switch SFP+ cages and integrates with remote monitoring tools for SAN administration.

Key Features

  • 8 Gb/s Fibre Channel supported with backward compatibility for 2G/4G speeds.

  • Dual LC duplex connector, 850 nm VCSEL transmitter and PIN photodiode receiver.

  • Multimode fibre support: OM2, OM3, OM4, with reach up to ~300 m.

  • Digital Optical Monitoring (DOM) for real-time link diagnostics.

  • Hot-swappable SFP+ form factor suitable for storage arrays, switches and server adapters.

Technical Specifications

SpecificationDetail
Brand HPE
Part Number AJ718A
Product Type 8 Gb Short-Wave Fibre Channel SFP+ Transceiver
Data Rate Up to 8.5 Gb/s Fibre Channel
Supported Speeds 2G/4G/8G Fibre Channel
Operating Wavelength 850 nm
Media Type Multimode Fibre (MMF)
Maximum Distance Approx. 300 m on OM3 fibre
Connector Type Duplex LC
Power Consumption <1 W (typical)
Digital Monitoring Supported (DOM)
Form Factor SFP+ (Small Form-factor Pluggable)
Operating Temperature 0 °C to 70 °C
Weight (lbs) Approx. 0.02 lbs
Compliance RoHS, SFP+ MSA, SFF-8431/8432
Compatible Platforms FC switches, storage arrays, SAN adapters
