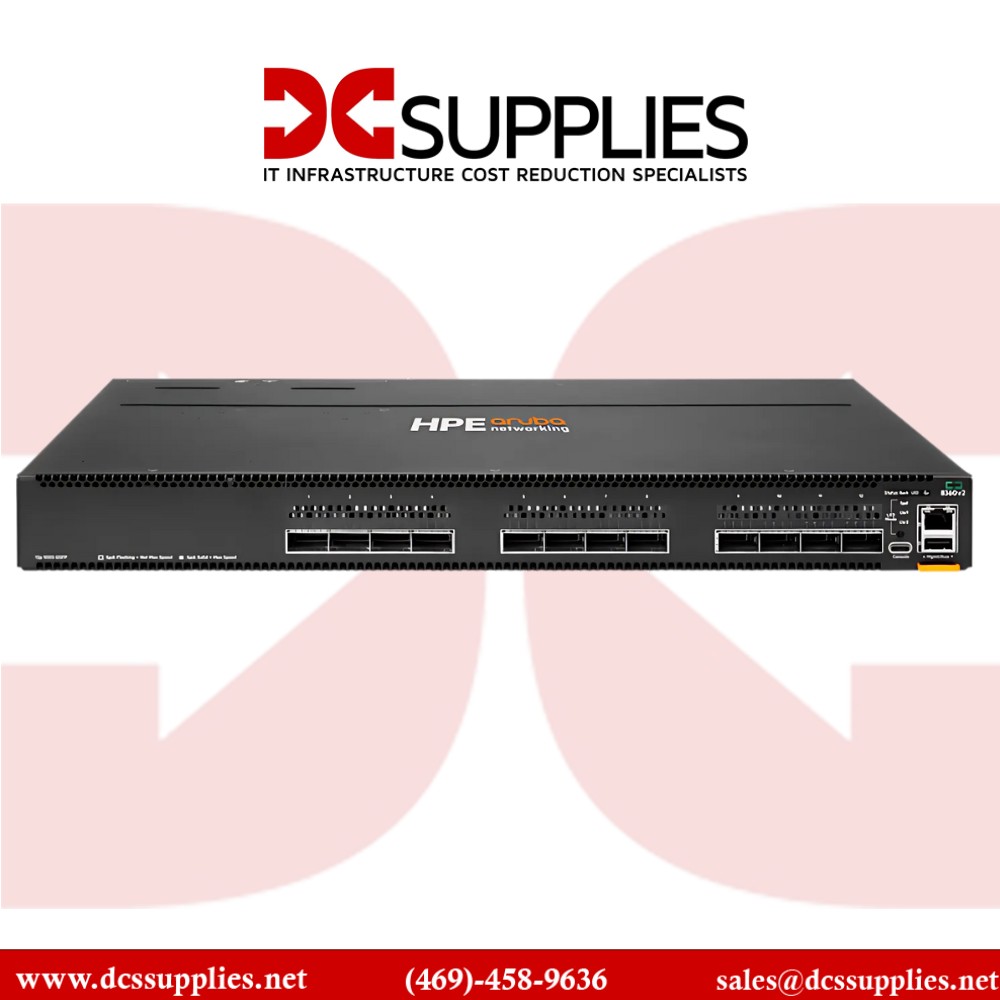

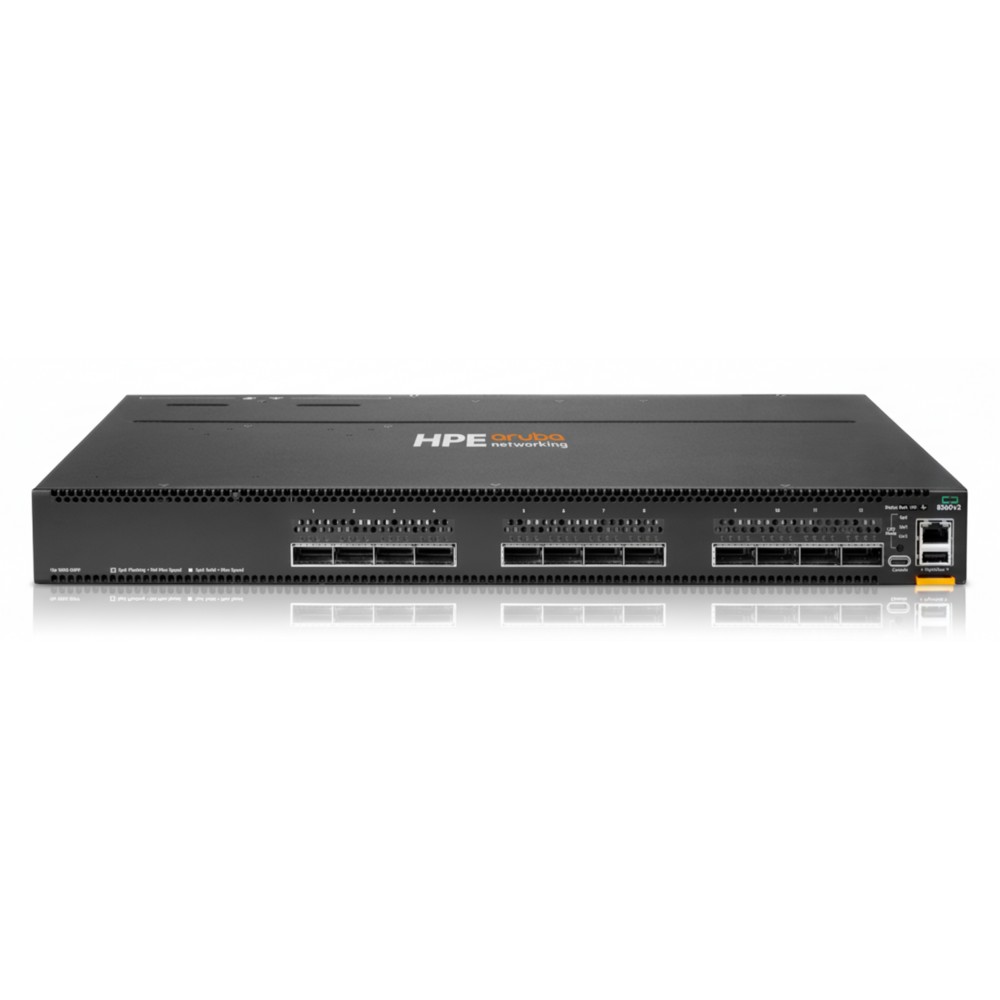

HPE Aruba JL708C 8360-12C v2 Ethernet Switch

New

HPE Aruba JL708C 8360-12C v2 Switch FB Bundle
×




  • New

Detailed Specifications

HPE JL708C

Aruba JL708C CX 8360‑12C v2 Switch – 12×100G QSFP28, Layer 3 Managed,

The HPE Aruba JL708C CX 8360‑12C v2 is a high-performance, compact 12‑port 100G switch designed for data center spine, leaf, and aggregation layers. It combines dense QSFP28 uplinks, advanced Layer 3 intelligence, and high-availability features within a 1U form factor—offering robust connectivity and operational simplicity.

Features

Equipped with 12 QSFP28 ports, each capable of either 40G/100G or breakout to 4×10G/25G, the JL708C offers ultra-flexible high-speed interconnects. ArubaOS-CX’s modular microservices architecture enables proactive monitoring, programmability, and seamless orchestration via built-in Network Analytics Engine, REST APIs, and Python.

Advanced Options

Support for MACsec on uplink ports ensures secure transport over shared or untrusted domains Designed around VSX redundancy, the switch maintains dual synchronized control planes for zero-downtime firmware updates. Its front-to-back airflow, redundant hot-swappable power supplies, and fans ensure reliability in high-density rack environments.

Product Key Features

  •  12 × 40/100 GbE QSFP28 ports (supports breakout to 4×10G/25G)

  •  MACsec-secure connectivity on select uplink ports

  •  ArubaOS‑CX with embedded Network Analytics Engine (NAE), REST API, and Python scripting

  •  VSX redundancy with stateful control‑plane sync, dual PSUs, and 3 fans

  •  2.4 Tbps switching capacity and 1,145 Mpps forwarding performance

Reliability & Performance

Achieving 2.4 Tbps of non-blocking switching capacity and 1,145 Mpps forwarding, the JL708C excels in bandwidth-intensive enterprise workloads. Its data center-ready design includes hot-swappable hardware modules and VSX cluster resilience. ArubaOS-CX ensures stable operations with modular software, while built-in analytics enhance troubleshooting and optimize uptime.

Key Features :

  • 12× 40/100G QSFP28 ports with breakout support

  • MACsec encryption on uplink ports

  • ArubaOS-CX with NAE, REST API, Python scripting

  • VSX for dual control-plane redundancy

  • Front-to-back airflow with redundant PSUs and 3 fans

  • Layer 3 routing: BGP, OSPF, IS‑IS, VRF; VXLAN/EVPN-ready

  • High-performance 2.4 Tbps switching and 1,145 Mpps forwarding

  • Compact 1U rack-mountable chassis, data center-ready

SpecificationDetails
Model Number JL708C
Product Type Layer 3 Managed Ethernet Switch
Ports 12 × 40/100 GbE QSFP28 (breakout to 4×10/25G supported)
Switching Capacity 2.4 Tbps (bidirectional)
Forwarding Rate 1,145 Mpps
MACsec Support On selected uplink ports
Operating System ArubaOS‑CX with NAE, REST API, Python
Redundancy VSX, dual hot-swappable PSUs, 3 hot-swap fans
Cooling Front-to-back airflow
Rack Form Factor 1U, 19″ rack-mountable
Dimensions (H×W×D) 44 × 442.5 × 406.4 mm (1.73″ × 17.4″ × 16.0″)
Weight 8 kg (17.65 lb)
Memory & CPU 16 GB RAM, 32 GB Flash, quad-core 1.8 GHz CPU
Power Consumption Idle 120 W, Max 375 W
Input Power Dual AC 100–240 VAC, 47–63 Hz
Operating Temp/Humidity 0–45 °C; 15–95 % non-condensing humidity
Compliance TAA, RoHS, CE, FCC, UL, VCCI
