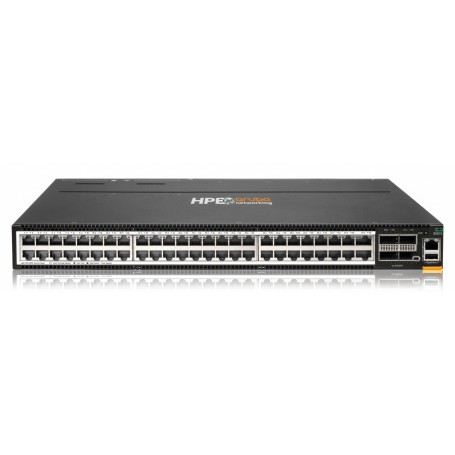

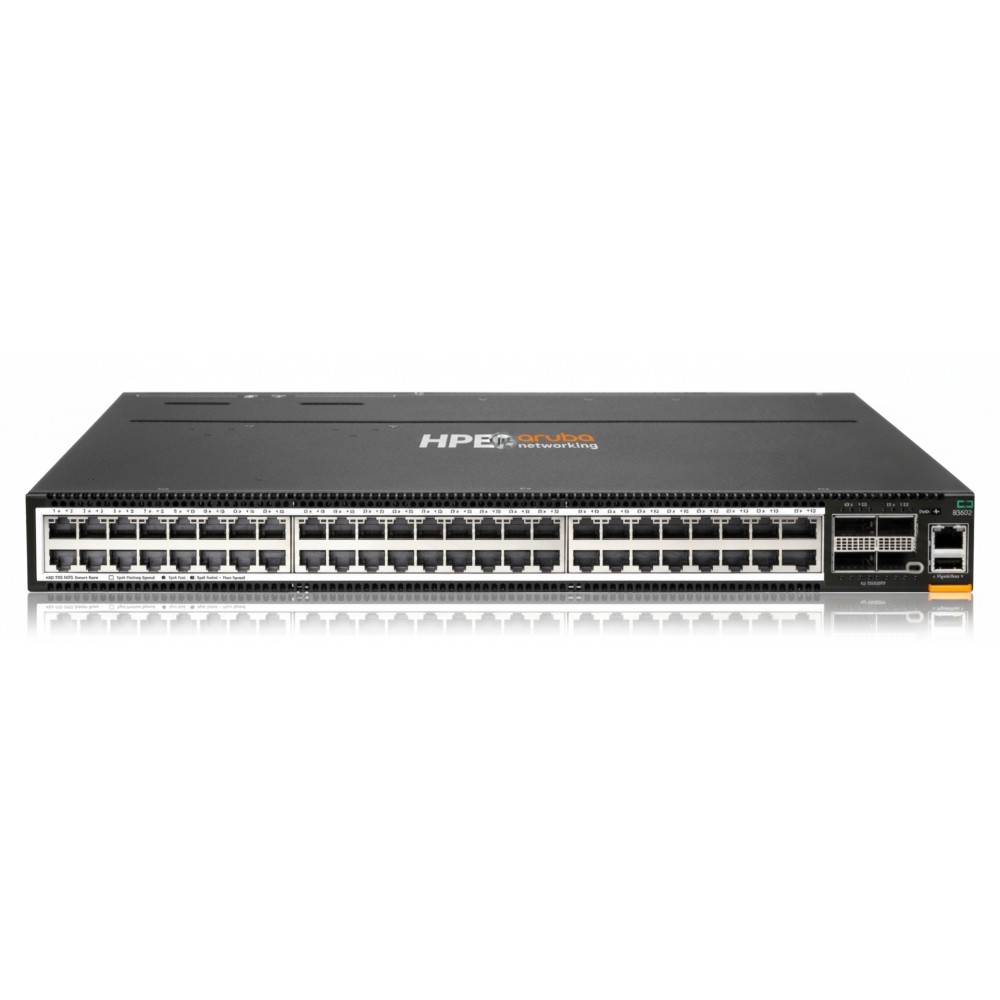

HPE ARUBA JL706C 8360-48XT4C V2 BF 3F 2AC Ethernet Switch View larger
Previous Next

HPE ARUBA JL706C 8360-48XT4C V2 BF 3F 2AC Ethernet Switch

New

HPE ARUBA JL706C 8360-48XT4C V2 BF 3F 2AC
×




  • New

Detailed Specifications

HPE JL706C

Aruba JL706C CX 8360‑48XT4C v2 Ethernet Switch – 48×1/10/25 GbE RJ‑45 + 4×40/100 GbE QSFP28, Layer 3 Managed,

The HPE Aruba JL706C CX 8360‑48XT4C v2 is a high-density Layer 3 switch engineered for enterprise core, data center top-of-rack, and aggregation deployments. Offering a mix of Smart Rate copper and high-speed uplinks, it delivers exceptional flexibility, security, and automation in a compact 1U, front-to-back airflow rack form factor.

Features

The 48 copper ports adaptively support 1/2.5/5/10/25 GbE deployments, complemented by four 40/100 GbE uplinks via QSFP28. MACsec enables secure links where needed, while ArubaOS‑CX provides a robust foundation with scripting, telemetry,

Advanced Options

and microservices. Pairing with VSX ensures high availability and seamless upgrades, ideal for modern network architectures.

Product Key Features

  •  48 × 1/10/25 GbE Smart Rate RJ‑45 ports + 4 × 40/100 GbE QSFP28 uplinks

  •  MACsec encryption support on selected ports

  • Powered by ArubaOS‑CX with microservices architecture, REST API, Python scripting, and NAE telemetry

  •  Robust VSX redundancy, dual hot‑swappable PSUs and 3 field‑replaceable fans

  •  High-performance 1.76 Tbps switching capacity with 1,145 Mpps forwarding rate

Reliability & Performance

With 1.76 Tbps switching and over 1 billion packets per second throughput, the JL706C excels under heavy enterprise workloads. Equipped with dual PSUs and spare fans, hot-swappable components, and VSX redundancy, it supports uninterrupted service with data center-grade reliability and ease of maintenance.

Key Features :

  • 48× 1/10/25 GbE Smart Rate copper ports

  • 4× 40/100 GbE QSFP28 uplinks

  • MACsec on selected ports

  • ArubaOS‑CX with NAE, REST API, Python

  • VSX-enabled dual control planes

  • Dual AC PSUs and 3 fans (field-replaceable)

  • Smart Rate support (1/2.5/5/10 GbE)

  • Front-to-back airflow

  • Layer 3 routing: BGP, OSPF, IS‑IS, VRF, EVPN/VXLAN

  • 1U rack-mountable chassis

SpecificationDetails
Model Number JL706C
Product Type Layer 3 Managed Ethernet Switch
Copper Ports 48 × 1/10/25 GbE Smart Rate RJ‑45
Uplink Ports 4 × 40/100 GbE QSFP28
Switching Capacity 1.76 Tbps (bidirectional)
Forwarding Rate 1,145 Mpps
MACsec Support Selected copper and uplink ports
Operating System ArubaOS‑CX with NAE, REST, Python
Redundancy VSX, dual PSUs, 3 hot-swap fans
Cooling Front-to-back airflow
Smart Rate Support 1/2.5/5/10 GbE on copper
Rack Mount Yes (1U, 19″)
Dimensions (H×W×D) 44 × 442 × 406 mm (1.73″ × 17.4″ × 16″)
Weight 8.55 kg (18.85 lb)
Power Consumption Max 500 W, Idle 120 W
Power Input Dual AC 100–240 VAC, 47–63 Hz
Operating Temperature 0–45 °C, up to 10,000 ft altitude
Jumbo Frame Support Up to 9 KB
