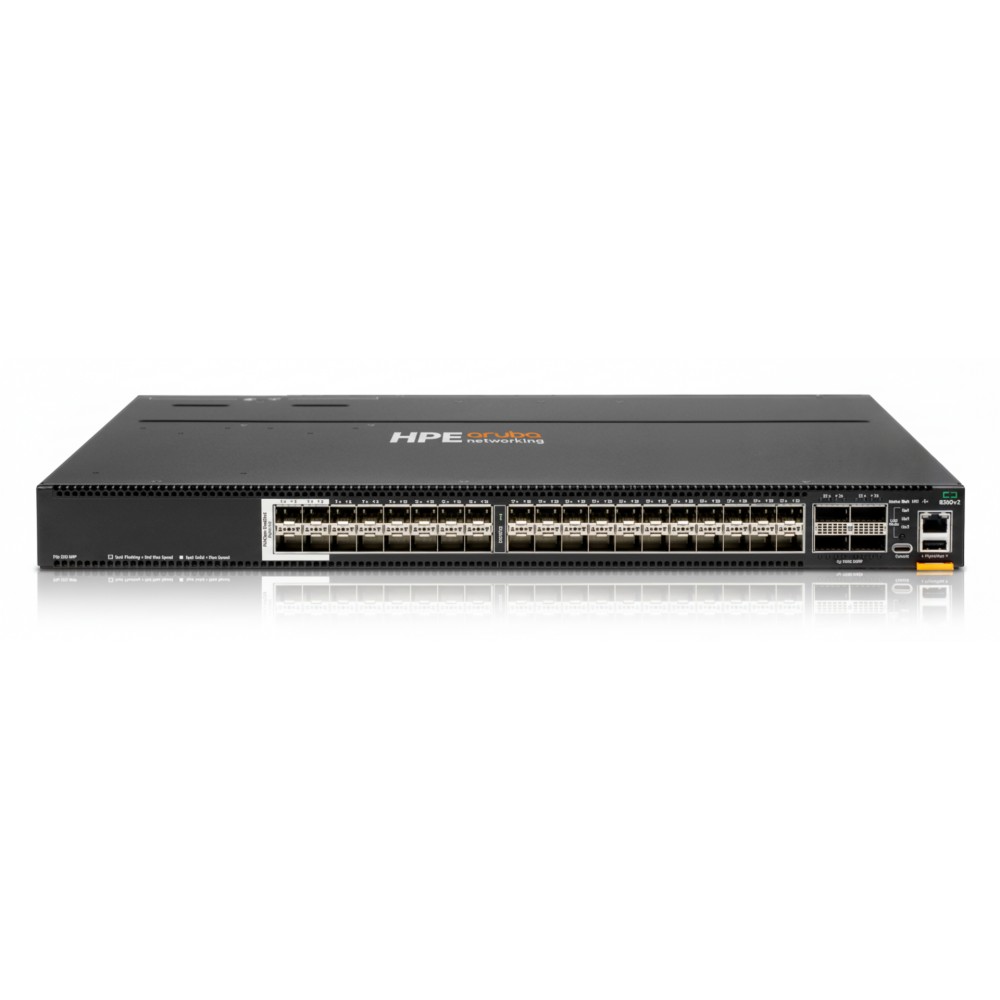

HPE Aruba JL701C-B2B 8360v2- 32Y4C Ethernet Switch View larger
Previous Next

HPE Aruba JL701C-B2B 8360v2- 32Y4C Ethernet Switch

New

HPE Aruba JL701C-B2B 8360v2- 32Y4C Ethernet Switch
×




  • New

Detailed Specifications

HPE JL701C

Aruba JL701C-B2B CX 8360‑32Y4C v2 Switch – 32× 25G SFP28 + 4× 100G QSFP28, Layer 3 Managed

The HPE Aruba JL701C-B2B CX 8360-32Y4C v2 is a high-performance Layer 3 switch tailored to meet the demands of enterprise campus cores, leaf-spine fabrics, and data center aggregation layers. Combining a flexible port mix, robust security, and Aruba’s intelligent software stack, this switch delivers scalable, secure, and automated networking in a compact 1U footprint.

Features

Featuring 32 SFP28 ports and 4 QSFP28 uplinks, the JL701C offers support for 1/10/25 GbE and 40/100 GbE links. MACsec encryption protects critical uplinks, while ArubaOS‑CX—with its microservices-based architecture—enables programmability, real-time analytics via NAE, and seamless orchestration with RESTful APIs and Fabric Composer

Advanced Options

The switch supports VSX redundancy for dual control planes and zero-downtime operations. Designed for back-to-front airflow, it suits data center environments using hot-aisle/cold-aisle layouts.

Product Key Features

  •  32× 25GbE SFP28 + 4× 40/100GbE QSFP28 ports for high-density core or aggregation

  •  MACsec encryption on selected 25G and 100G uplink ports

  •  Runs ArubaOS‑CX with embedded Network Analytics Engine (NAE), REST API, and Python support

  •  VSX redundancy and 3 hot‑swappable fans + dual AC PSUs, supporting back-to-front airflow

  •  Delivers 4.8 Tbps switching capacity and 2,678 Mpps forwarding rate

  •  Compact 1U rack-mountable chassis designed for core, aggregation, and spine-leaf deployments

Reliability & Performance

Sporting 4.8 Tbps of switching capacity and 2,678 Mpps forwarding, the JL701C efficiently tackles bandwidth-intensive workloads. It includes dual power supplies and 3 front-to-back fans for reliable, hot-swappable resilience. ArubaOS‑CX’s analytics and modular OS design ensure network uptime and quick troubleshooting .

Key Features :

    • 32× 25 GbE SFP28 + 4× 40/100 GbE QSFP28 ports

    • MACsec encryption on selected uplinks

    • ArubaOS‑CX with NAE, REST API, Python scripting

    • VSX redundancy with dual control planes

    • Dual hot-swappable AC PSUs + 3 fans

    • Back-to-front airflow (data center-compatible)

    • Layer 3 routing: BGP, OSPF, IS‑IS, VRF; VXLAN/EVPN-ready

    • Deep buffers, QoS, ECMP, multicast support

    • 1U form factor, rack-mountable

SpecificationDetails
Model Number JL701C-B2B (8360-32Y4C v2)
Product Type Layer 3 Managed Ethernet Switch
Port Density 32 × SFP28, 4 × QSFP28
Supported Speeds 1/10/25 GbE & 40/100 GbE
Switching Capacity 4.8 Tbps
Forwarding Rate 2,678 Mpps
MACsec Support Select 25G and 100G ports
Operating System ArubaOS‑CX
Management Interfaces CLI, Web GUI, REST API, Python, SNMP, Console
Routing Protocols BGP, OSPF, IS‑IS, VRF, VXLAN/EVPN, ECMP
Redundancy Features VSX, Dual PSUs, Hot-swap fans
Cooling Direction Back-to-front airflow
Rack Form Factor 1U, 19″ rack-mountable
Dimensions (H×W×D) ~44 × 442 × 559 mm
Weight ~7.7 kg (≈17 lb)
Power Consumption ~425 W typical
Operating Temperature 0–45 °C (32–113 °F)
Compliance TAA, RoHS, CE, FCC
