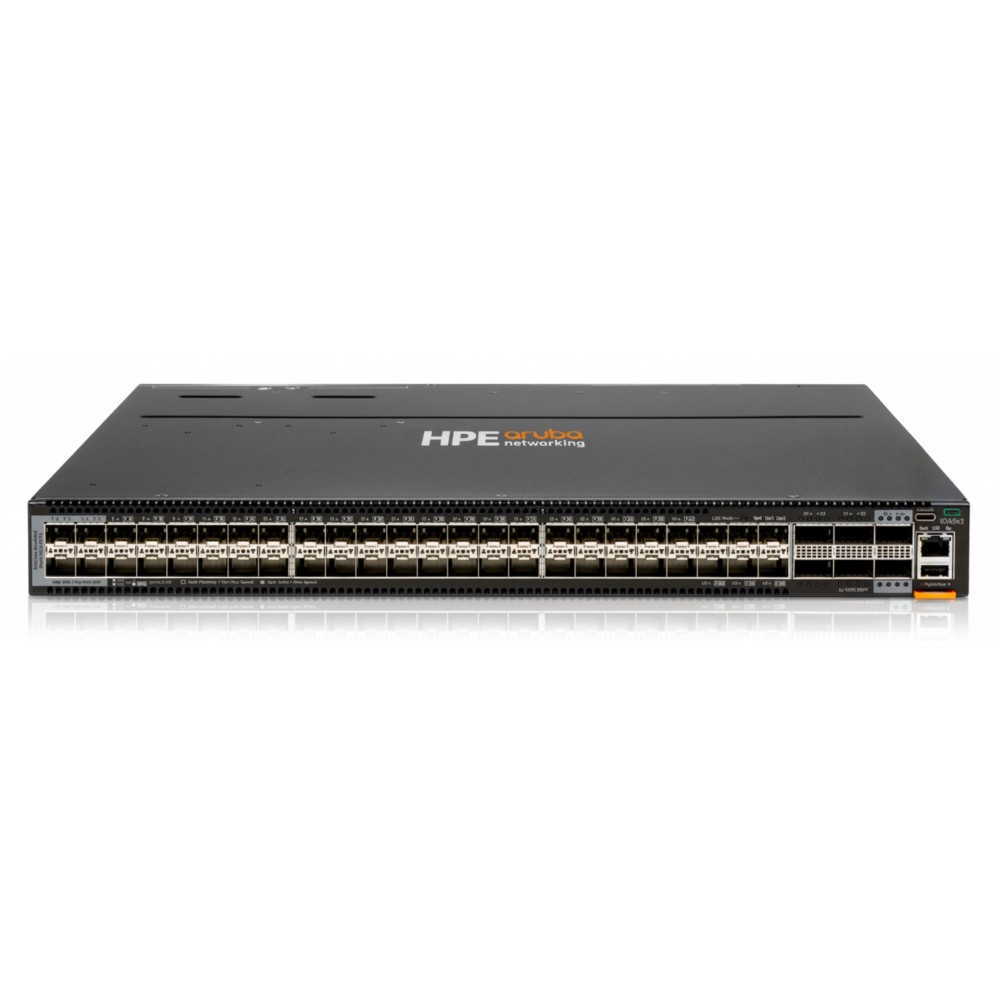

HPE Aruba JL705C 8360-48Y6C V2 BF 5F 2AC Switch

New

HPE Aruba JL705C 8360-48Y6C V2 BF 5F 2AC Switch
×




  • New

Detailed Specifications

HPE JL705C

Aruba JL705C CX 8360-48Y6C v2 BF 5F 2AC Switch – 48×25G SFP28 + 6×100G QSFP28, MACsec, Layer 3

The HPE Aruba JL705C CX 8360‑48Y6C v2 is a flagship Layer 3 switch for core, aggregation, and data center applications, delivering ultra-dense 25G and 100G connectivity with built-in security and high availability. Designed for modern backbone infrastructures, it combines speed, scale, and resilience in a compact 1U platform.

Features

Equipped with 48 SFP28 ports and 6 QSFP28, this switch supports a flexible mix of 1/10/25/40/100 GbE links. MACsec encryption on select 25G and 100G ports shields your traffic across untrusted networks. ArubaOS-CX's microservices-based architecture offers real-time automation and telemetry via its Network Analytics Engine, while VSX enables zero-downtime upgrades through dual control plane synchronization.

Advanced Options

Ideal for top-of-rack and spine-leaf designs, the 8360 v2 enhances scalability and security with features like VXLAN/EVPN, BGP, OSPF, VRF, and MPLS-ready routing.

Product Key Features

  •  48× 1/10/25 GbE SFP28 & 6× 40/100 GbE QSFP28 ports, with MACsec on 4×25G and 2×100G

  •  Layer 3 managed, supports BGP, OSPF, VRF, VXLAN, EVPN, MPLS, and more

  •  MACsec encryption on key uplink ports—secure data over untrusted links

  •  VSX redundancy, plus dual hot‑swap PSUs and 5 fans for nonstop operation

  •  ArubaOS‑CX with Network Analytics Engine, REST API, Python scripting

  • 4.8 Tbps switching capacity, 2,678 Mpps, deep buffers for high-performance environments

Reliability & Performance

The switch delivers 4.8 Tbps of non-blocking throughput and 2,678 Mpps forwarding, enabling low-latency, high-bandwidth operations under heavy load. It includes dual hot-swappable 2 AC power supplies, 5 replaceable fans, and front-to-back airflow for data center cooling compatibility. Aruba’s modular OS ensures high resilience, while MACsec adds a hardware layer of security

Key Features :

    • 48× 25 GbE SFP28 & 6× 40/100 GbE QSFP28 ports

    • MACsec on 4×25G and 2×100G ports

    • ArubaOS‑CX with NAE, REST API, Python

    • VSX redundancy with dual control planes

    • Dual AC PSUs, 5 hot-swappable fans

    • Deep buffers, DCB, ECN, QoS

    • Front-to-back airflow, 1U rack form factor

SpecificationDetails
Model Number JL705C
Product Name Aruba CX 8360‑48Y6C v2
Product Type Layer 3 Managed Switch
Switching Capacity 4.8 Tbps
Forwarding Rate 2,678 Mpps
25G Ports 48 × SFP28 (1/10/25 GbE)
100G Ports 6 × QSFP28 (40/100 GbE)
MACsec Ports 4 × 25G + 2 × 100G
Management OS ArubaOS‑CX
Management Interfaces CLI, Web GUI, REST API, Python, SNMP, USB‑C, RJ‑45 console
Layer 3 Protocols BGP, OSPF, IS‑IS, VRF, ECMP, PIM, MPLS-ready
Virtualization Support VXLAN, EVPN
Redundancy Dual PSUs & fans, VSX support
Airflow Front-to-back
Form Factor 1U Rack-mountable
Dimensions (H×W×D) 44 × 442 × 558.8 mm (1.73″ × 17.4″ × 22.0″)
Weight 10.7 kg (23.7 lb)
Power Consumption 725 W max
Operating Temperature 0°C–45°C (32°F–113°F) up to 5,000 ft
Compliance TAA, RoHS, CE, FCC, UL, VCCI
