APC AP9613 Dry Contact I/O SmartSlot Card Monitor External UPS Environmental Sensors View larger

APC AP9613 Dry Contact I/O SmartSlot Card Monitor External UPS Environmental Sensors

New

Dry Contact I/O SmartSlot Card

×




  • New

Detailed Specifications

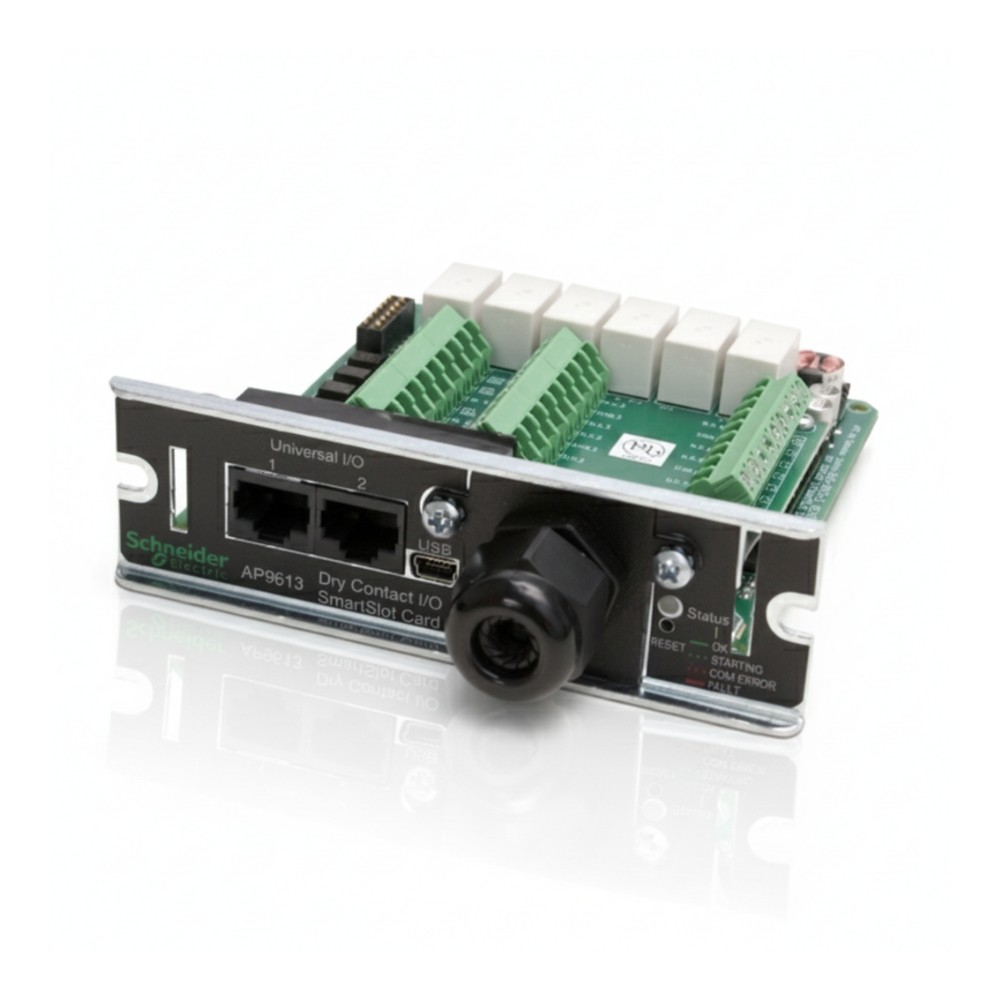

APC AP9613 – Dry Contact I/O SmartSlot Card

Overview :

The APC AP9613 is a Dry Contact I/O SmartSlot Card designed to enhance the monitoring and control capabilities of APC by Schneider Electric UPS systems. It offers 6 configurable output relays and 4 input contacts, enabling users to integrate external devices and environmental sensors. The card supports interaction between input events and output actions, allowing for automated responses to specific conditions. It is compatible with SmartSlot-enabled UPS models, making it suitable for deployment in various environments, including data centers and branch offices.

Key Features :

  • 6 configurable output relays

  • 4 configurable input contacts

  • Supports optional environmental sensors

  • USB interface for configuration utility

Specifications :

SpecificationDetails
Brand APC by Schneider Electric
Part Number AP9613
Product Type Dry Contact I/O SmartSlot Card
Output Relays 6 configurable relays
Input Contacts 4 configurable contacts
Universal I/O Ports 2 ports supporting AP9335T/TH and AP9810 accessories
USB Interface USB A to Mini B cable included for configuration utility
Mounting Installs in SmartSlot of compatible UPS units
Dimensions (H x W x D) 38 mm x 121 mm x 114 mm
Weight 0.21 kg
Operating Temperature 0°C to 40°C
Storage Temperature -25°C to 65°C
Humidity Range 0% to 95% non-condensing
Compliance CE, UL, RoHS
Warranty 2-year limited warranty
