APC SRT1500RMXLA Smart-UPS On-Line 1500VA Rackmount 2U 120V with Extended Runtime View larger
Previous Next

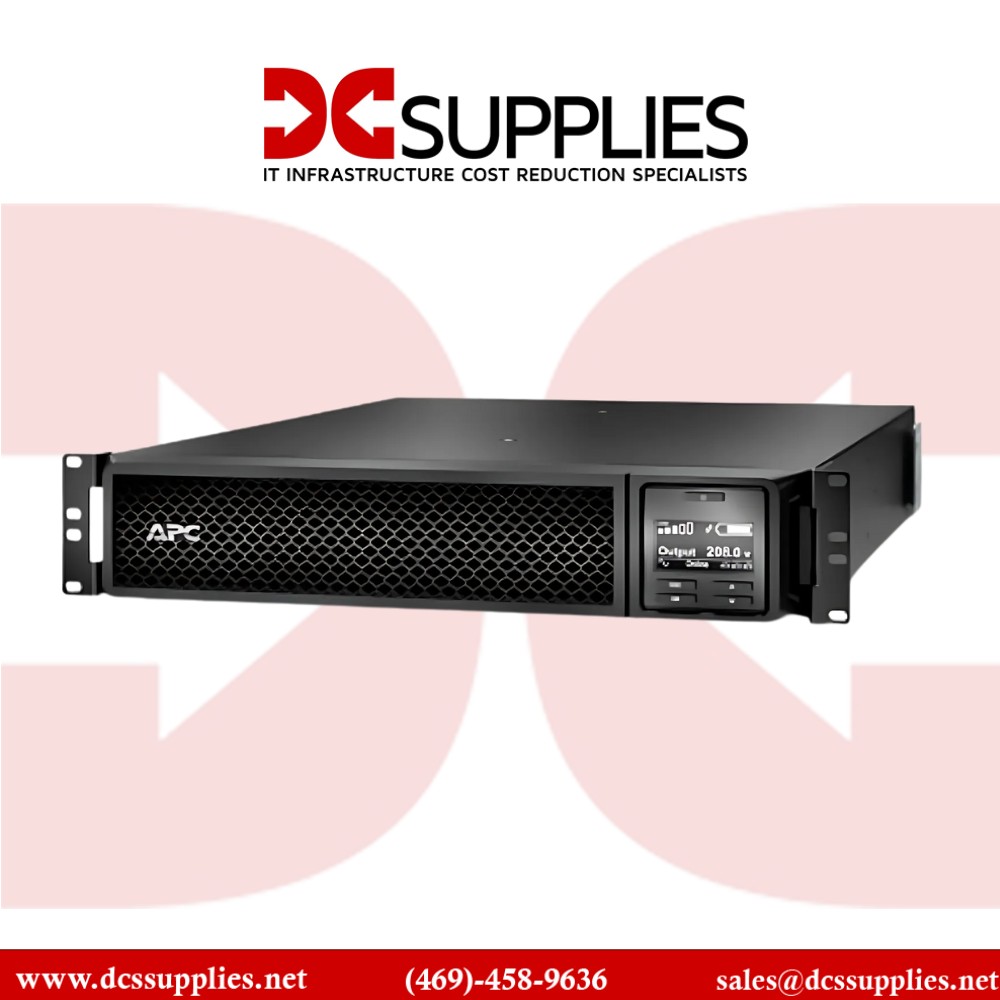

APC SRT1500RMXLA Smart-UPS On-Line 1500VA Rackmount 2U 120V with Extended Runtime

New

In Stock

Reliable rackmount UPS with AVR, 3kVA capacity, and 120V output
×




$1,644.95

  • New

Detailed Specifications

APC

SRT1500RMXLA

Smart‑UPS On‑Line 1500 VA / 1350 W Rackmount 2U, 120 V with Extended Runtime

The APC SRT1500RMXLA is a double‑conversion On‑Line UPS delivering 1500 VA / 1350 W of continuous, pure sine‑wave power in a robust 2U rackmount form factor. Featuring extended runtime capability and built‑in SmartSlot, it’s engineered for 120 V environments where uptime is mission‑critical—such as server clusters, network appliances, storage arrays, and medical or industrial control systems

Features

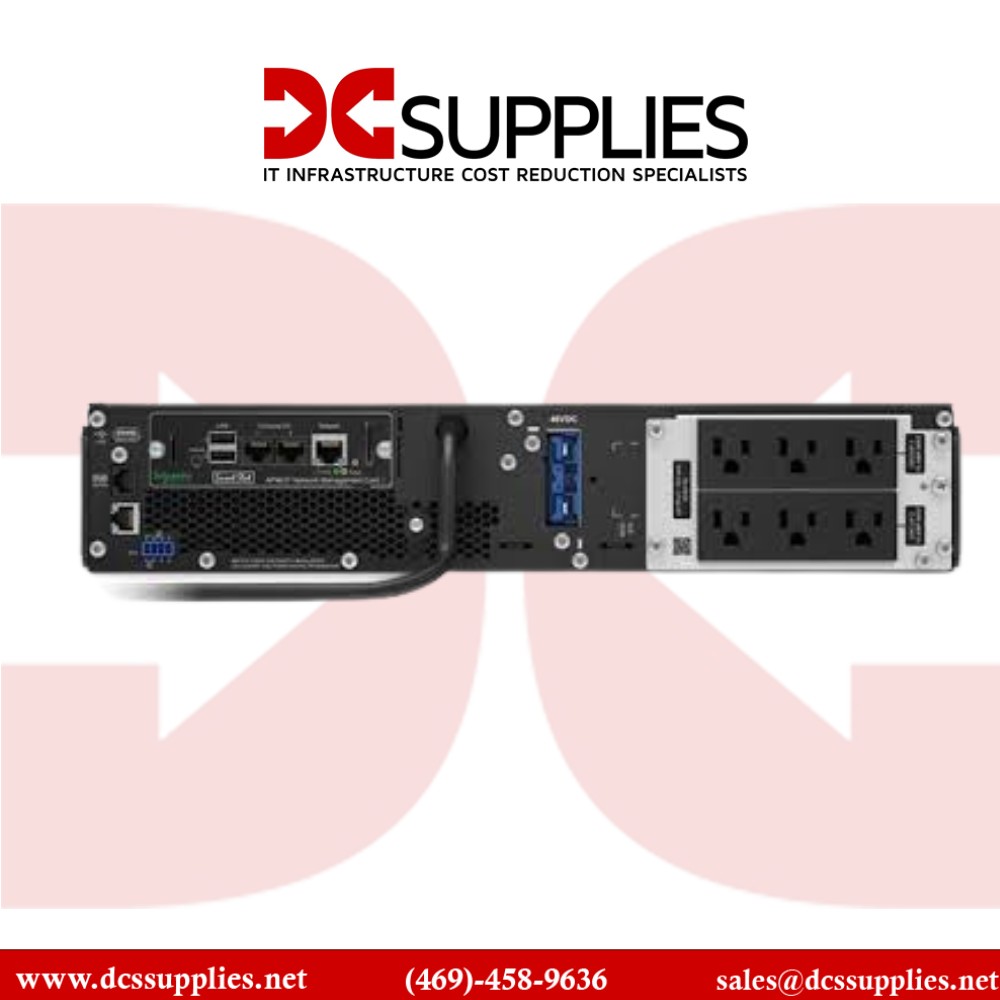

This UPS runs in true double‑conversion mode, continuously regenerating clean AC independent of input power anomalies. Its wide input range (50–150 V) with internal bypass ensures uninterrupted operation during extreme conditions . The model includes six NEMA 5‑15R battery‑backup outlets and supports plug‑in external battery packs for runtime expansion.

Advanced Options

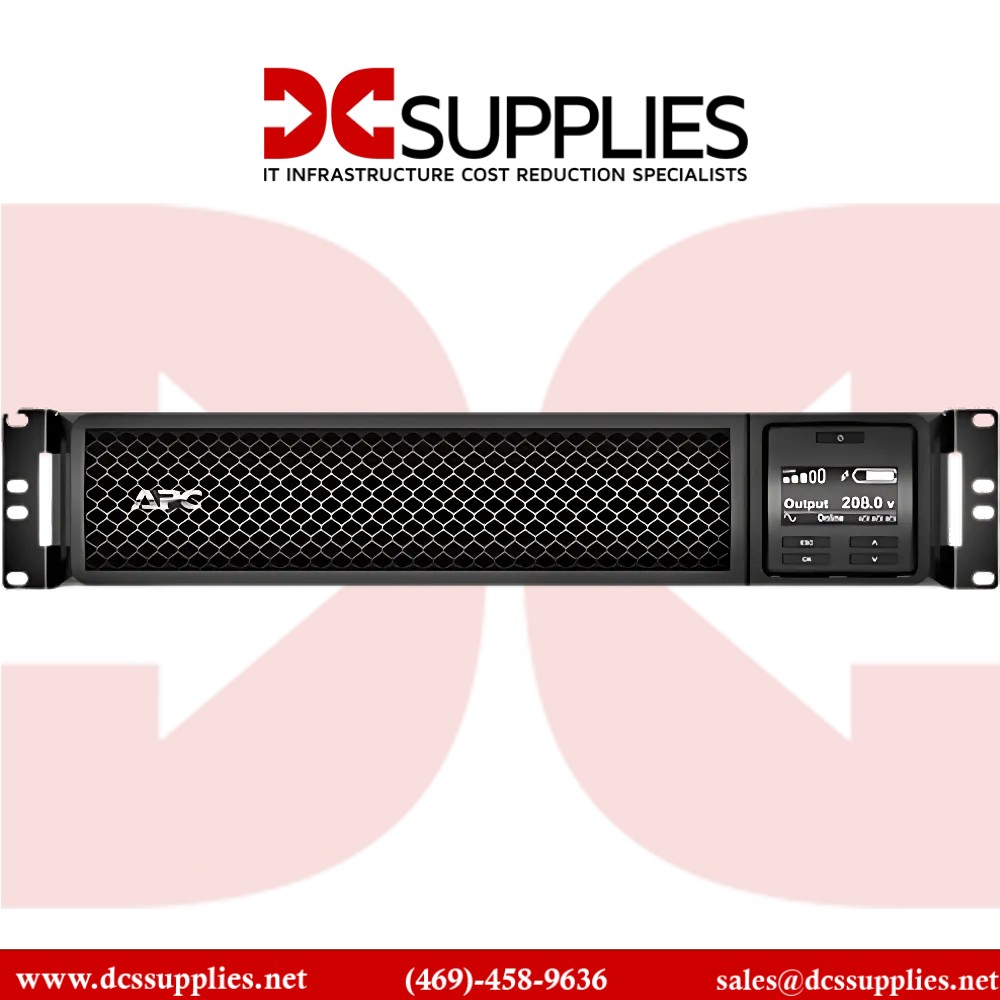

Ideal for rack installations, it ships with rails and converter kits, and its built‑in SmartSlot allows for network management via APC’s AP9631 card (sold separately). A clear front-panel LCD provides status on load, runtime, and system health, while USB and Serial ports support graceful shutdown using PowerChute software.

Product Key Features

  • 1500 VA / 1350 W On‑Line double‑conversion UPS

  • Pure sine‑wave output for sensitive equipment

  • Six NEMA 5‑15R battery‑backup outlets

  • Supports external battery packs for extended runtime

  • Wide input range (50–150 V) with internal bypass

  • SmartSlot for network management card

  • USB and Serial ports with PowerChute support

  • Front-panel LCD for system status

  • Ships with rack rails and tower conversion hardware

  • ENERGY STAR certified and eco‑designed

Reliability & Performance

The SRT1500RMXLA provides enterprise-grade protection with no transfer interruption—zero ms—ideal for critical IT and industrial applications. Its predictive battery management automatically charges and tests batteries, alerting users to replacement needs and ensuring consistent reliability Its efficiency ranges from approximately 92–97 %, significantly reducing power loss and heat generation compared with standby topologies . This efficiency, combined with a 3-hour recharge cycle and scalable runtime, reduces TCO while enhancing resilience. With a durable chassis, robust IEC‑compliant components, and APC’s 3-year electronics and 2-year battery warranty, this UPS delivers reliable power protection you can trust.

Key Features :

  • Double-conversion On‑Line topology

  • 1500 VA / 1350 W continuous capacity

  • Pure sine-wave output

  • 6 × NEMA 5‑15R battery-backup outlets

  • External battery support

  • Input range: 50–150 V; internal bypass

  • SmartSlot expansion

  • USB & Serial connectivity

  • Front LCD panel

  • Rack/tower convertible with rails included

  • ENERGY STAR certified

Specifications :

SpecificationDetails
Model Number SRT1500RMXLA
UPS Type On‑Line Double‑Conversion
Capacity (VA/Watts) 1500 VA / 1350 W
Input Voltage Range 120 V nominal (50–150 V @ 40 % load)
Input Connection NEMA 5‑15P, 6 ft cord
Output Outlets 6 × NEMA 5‑15R
Waveform Output Pure sine wave
Transfer Time 0 ms (continuous conversion)
External Battery Support Yes, plug-in racks
Communication Ports SmartSlot, USB, Serial cables
Display Front-panel LCD
Form Factor 2U Rackmount (rails + tower base included)
Dimensions (HxWxD) 3.35 × 17.01 × 20.00 in (85 × 432 × 508 mm)
Weight 48.5 lb (22 kg)
Efficiency Up to ~96.9 % (50–100 % load)
Recharge Time 3 hours
Certifications ENERGY STAR V2.0, UL 1778, RoHS
Warranty 3 years electronics / 2 years battery
