APC SMX2200RMHV2U Smart-UPS X 2200VA 2U Rack/Tower 208V-230V View larger

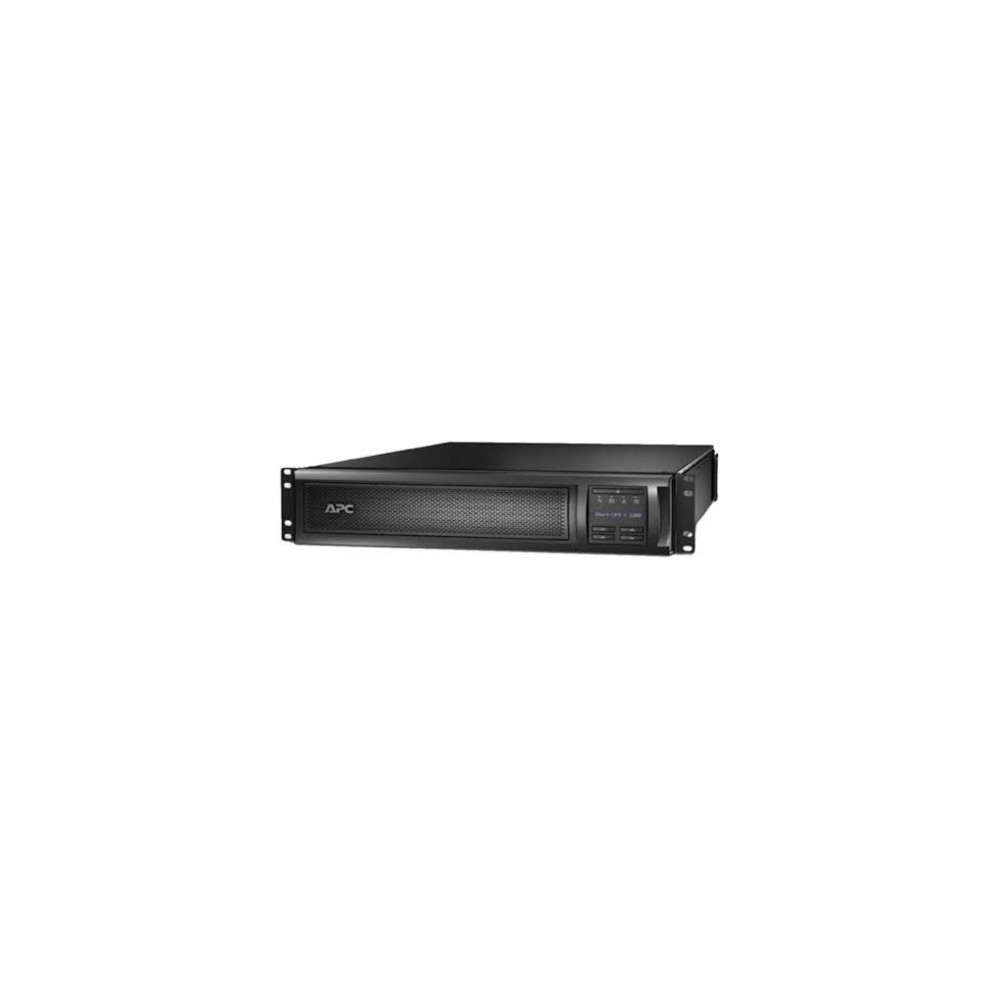

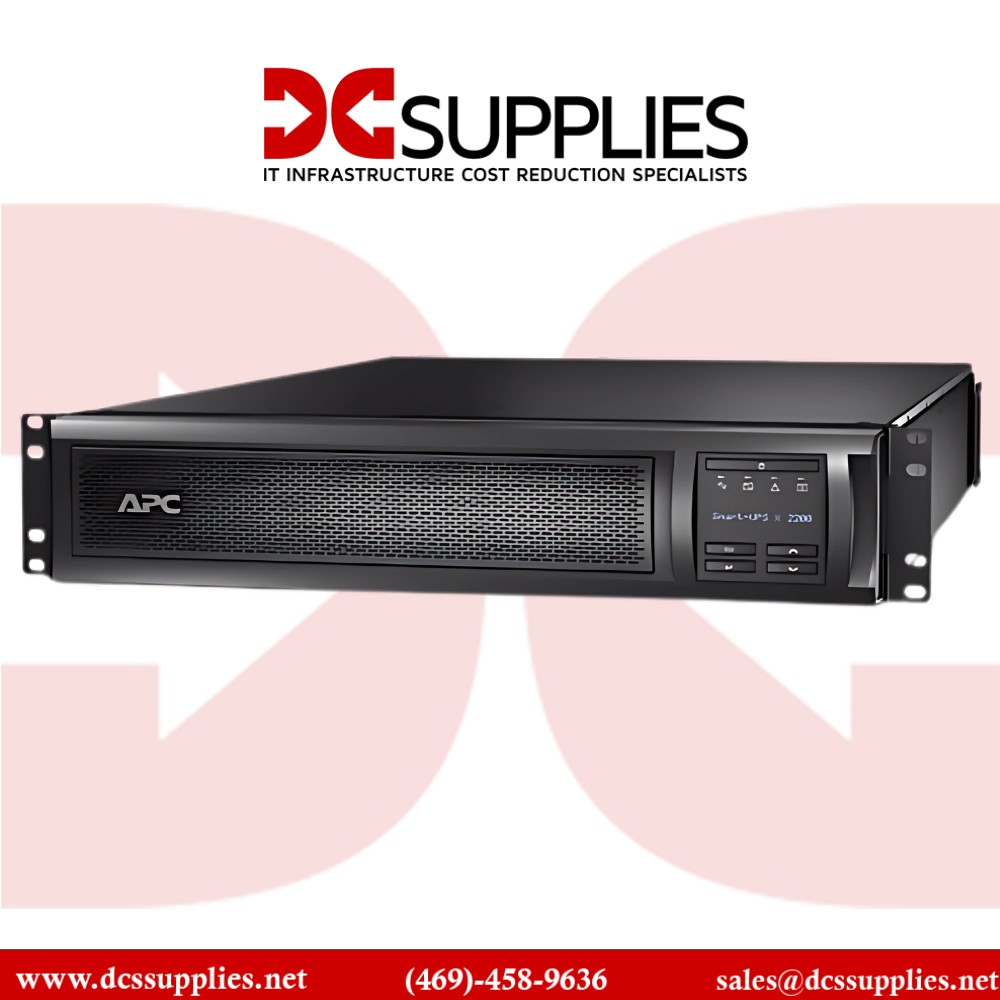

APC SMX2200RMHV2U Smart-UPS X 2200VA 2U Rack/Tower 208V-230V

New

In Stock

Reliable 2200VA Smart-UPS with pure sine wave, extended runtime
×




$2,484.95

  • New

Detailed Specifications

APC

SMX2200RMHV2U

Smart‑UPS X 2200 VA 2U Rack/Tower (208–230 V)

The APC SMX2200RMHV2U delivers 2200 VA / 1980 W of line-interactive, pure sine-wave backup power, ideal for safeguarding servers, network devices, POS systems, and critical infrastructure. Operable between 208 V and 230 V, this versatile UPS supports both rackmount and tower configurations to adapt to various deployment needs. With 8 IEC C13 outlets and 1 IEC C19 outlet, it accommodates multiple devices in high-density environments. Designed for scalable runtime, it integrates APC's SmartSlot for remote management and supports up to 10 external battery packs—making it perfect for expanding runtime during extended outages.

Features

The SMX2200RMHV2U features Automatic Voltage Regulation (AVR) to correct under- and over-voltages without switching to battery mode, thereby preserving battery life . With a fast 2–4 ms transfer time, it ensures uninterrupted power to sensitive electronics . The intuitive LCD console provides real-time monitoring of load, battery status, efficiency, and alarms . Additionally, the unit includes two switched outlet groups for sequential device power-up or load shedding

Advanced Options

It comes standard with essential accessories: rackmount rails, tower feet, USB & serial cables, user guides, and software. Featuring high efficiency (~98%) and eco-friendly certifications compliance, the UPS is optimized for performance and sustainability

Product Key Features

  • 2200 VA / 1980 W capacity with pure sine-wave output

  • 208–230 V input/output with AVR

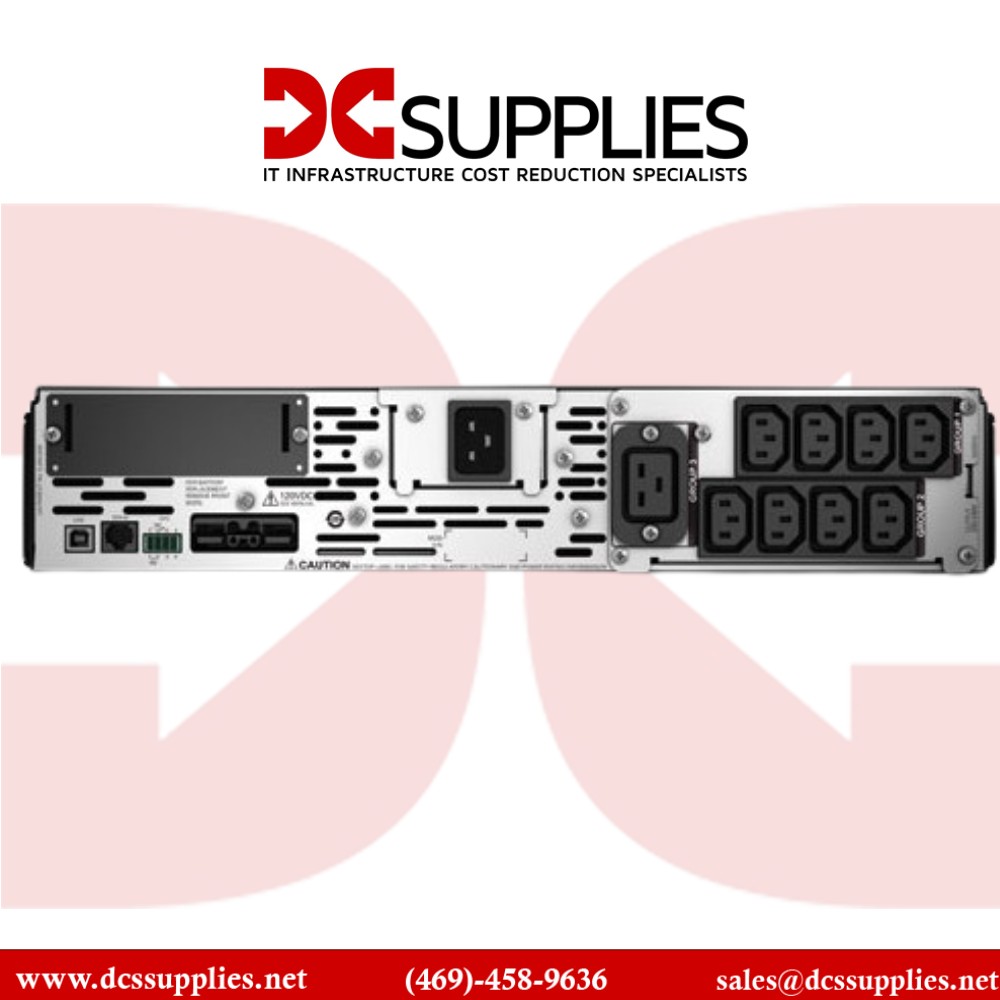

  • 8 IEC C13 + 1 IEC C19 battery-backed outlets

  • 2 switched outlet groups for controlled load management

  • SmartSlot for optional network management card

  • Hot-swappable internal battery, supports up to 10 external battery packs

  • Rack/tower convertible with included rails and feet

  • High efficiency (~98%), eco-friendly design

Reliability & Performance

Backed by APC engineering and a 3-year repair or replace warranty, the SMX2200RMHV2U offers enterprise-grade reliability. Its sealed VRLA battery achieves full recharge in just 3 hours, and the unit supports hot-swappable internal batteries—helpful for maintenance without downtime . With support for multiple external battery packs, runtime is fully scalable to meet power needs during prolonged outages The UPS also includes robust communication features: USB and serial ports for local management, a SmartSlot for remote communications, and Emergency Power Off (EPO) support for safety. Integrated surge protection (645 J rating) and full-time noise filtering safeguard delicate equipment

Key Features (Bullet List)

  • 2200 VA/1980 W pure sine-wave capacity

  • 208–230 V line-interactive topology with AVR

  • 9 battery-backed IEC outlets (8×C13, 1×C19)

  • 2 switched outlet groups

  • Hot-swappable internal battery and external runtime scalability

  • Convertible rack/tower form factor

  • SmartSlot for network manageability

  • USB, serial, and EPO connectivity

  • Fast transfer (<4 ms) and surge protection (645 J)

Specifications :

SpecificationDetails
Model Number SMX2200RMHV2U
Type Line-interactive UPS, pure sine-wave
Capacity 2200 VA / 1980 W
Input Voltage 208, 220, 230, or 240 V AC
Output Voltage Same as input (208–230 V)
Transfer Time 2–4 ms
Outlets 8 × IEC C13, 1 × IEC C19
Switched Outlet Groups 2 groups
SmartSlot 1 slot for network management card
Battery Type Sealed lead acid (VRLA), hot-swappable
Recharge Time Approx. 3 hours

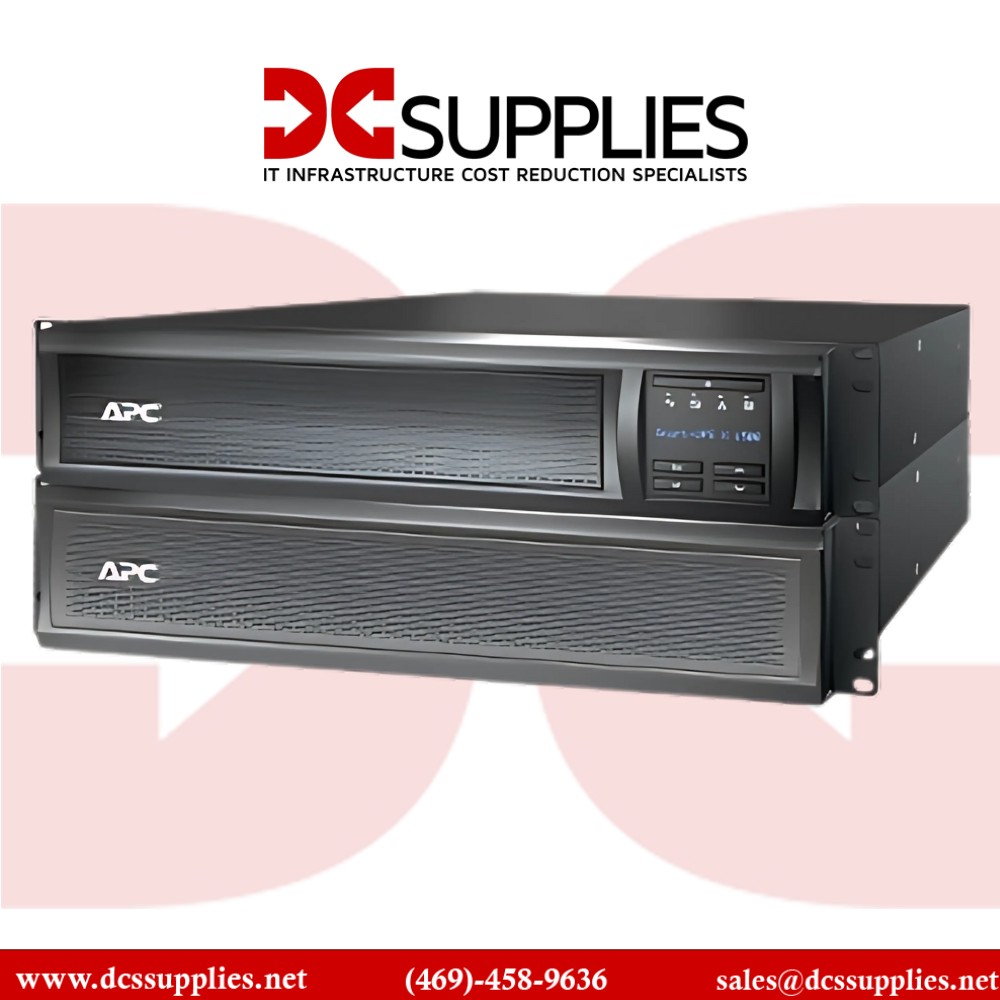

External Battery Support Up to 10 × SMX120RMBP2U
Form Factor 2U rack/tower convertible
Dimensions (HxWxD) 3.35″ × 17.0″ × 26.26″ (85 × 432 × 667 mm)
Weight ~82.3 lb (37.3 kg)
Efficiency Up to 98 %
Surge Energy Rating 645 J
Communications USB, Serial, SmartSlot, EPO
Warranty 3-year UPS, 2-year battery
