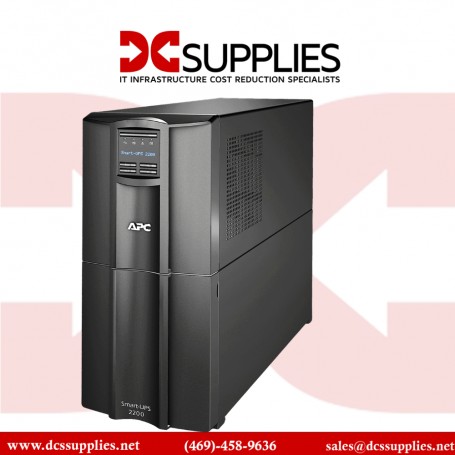

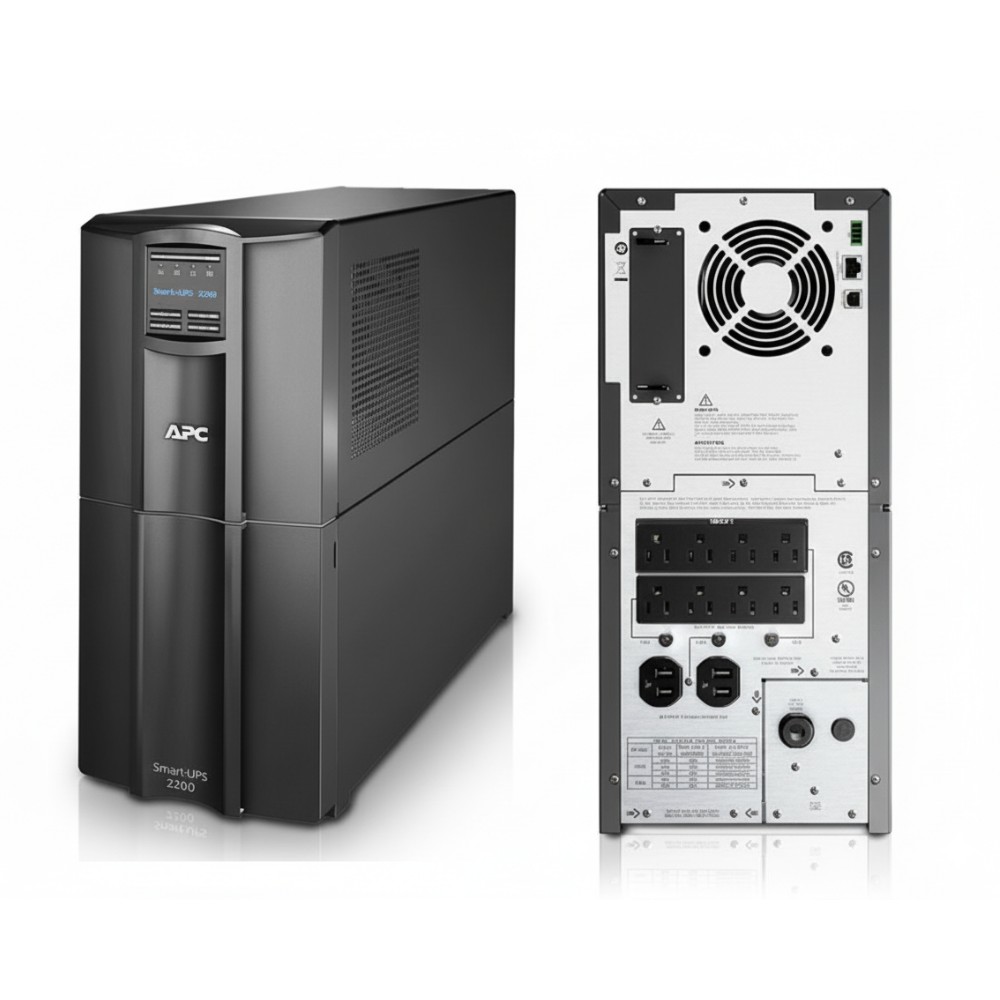

APC SMT2200US Smart UPS 2200VA Line Interactive Tower UPS

New

APC Smart-UPS is a 1920W line-interactive tower UPS that delivers

×




  • New

Detailed Specifications

APC

SMT2200US

Smart-UPS 2200VA Line‑Interactive Tower UPS

The APC SMT2200US Smart-UPS delivers 2200 VA/1980 W of pure sine wave backup power in a compact tower design, ideal for protecting servers, network devices, VoIP systems, and workstations during power disruptions. Featuring line-interactive topology and automatic voltage regulation (AVR), it ensures safe, efficient operation for critical IT environments.

Features

This UPS uses a line-interactive design with AVR to correct voltage sags and surges without draining the battery, extending runtime and battery life. Designed for small to mid-sized data centers and network closets, the SMT2200US offers ten outlets (8× NEMA 5‑15R and 2× NEMA 5‑20R) plus a NEMA 5‑20P input plug. Its LCD panel provides real-time status and diagnostics, while the SmartSlot allows optional management cards for remote monitoring and graceful shutdowns—especially useful for virtual machines and clustered systems.

Advanced Options

It supports seamless integration with PowerChute software and EcoStruxure IT platforms, providing predictive battery health alerts and proactive firmware updates. With hot-swappable, user-replaceable batteries and a typical recharge time of around 3 hours, it minimizes downtime and maintenance overhead—ideal for professionals needing reliability and manageability in a compact form factor.

Product Key Features

  • 2200 VA / 1980 W capacity with pure sine wave output

  • Line‑interactive UPS with AVR

  • 8× NEMA 5‑15R + 2× NEMA 5‑20R outlets

  • SmartSlot port for network management cards

  • LCD display for load/runtime/status

  • Hot-swappable batteries with ~3-hour recharge

Reliability & Performance

Built to APC’s rigorous standards, the SMT2200US delivers enterprise-grade reliability in a tower format. Its AVR system maintains voltage within ±5 %, protecting battery life and sensitive loads. The unit’s sealed lead-acid batteries are hot-swappable, and the robust steel housing with active cooling ensures durability. Designed for continuous operation, it supports efficient power usage and fulfills a $150,000 connected equipment warranty when properly registered.

Key Features (Bullet List)

  • 2200 VA/1980 W output

  • Pure sine wave inverter

  • Ten outlets (8× 5‑15R, 2× 5‑20R)

  • SmartSlot for management cards

  • Integrated LCD status panel

  • Hot-swappable lead-acid battery

Specifications :

SpecificationDetails
Model Number SMT2200US
Product Type Line-Interactive Tower UPS
Capacity 2200 VA / 1980 W
Output Waveform Pure sine wave
Input Plug NEMA 5‑20P (120 V)

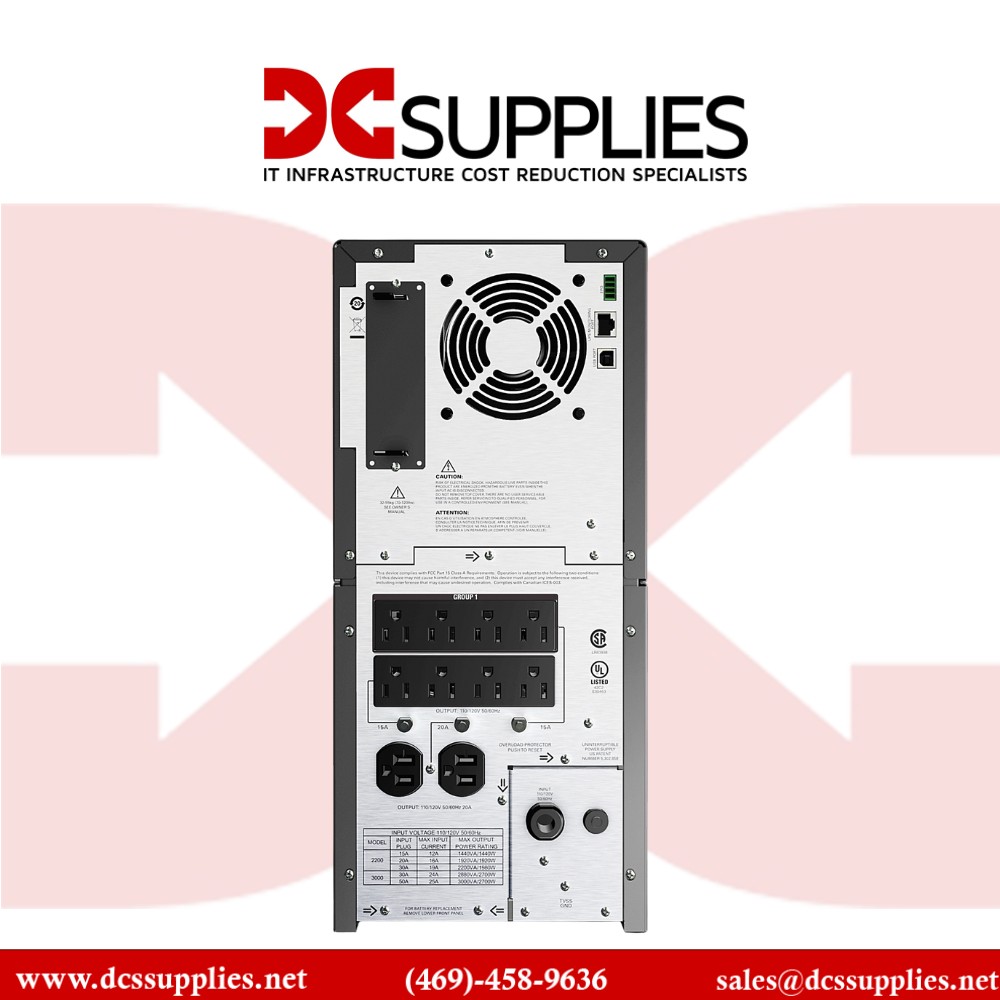

Output Outlets 8× NEMA 5‑15R, 2× NEMA 5‑20R
AVR Built‑in (±5 % regulation)
SmartSlot Yes (for management cards)
Display Multi-function LCD
Battery Type Sealed lead-acid, user-replaceable, hot-swappable
Recharge Time Approximately 3 hours
Runtime @ Full Load ~1 minute at 1980 W; longer at lower loads
Interfaces USB, RS‑232; optional network card through SmartSlot
Surge Protection 530 J surge energy rating
Dimensions (H × W × D) 17.0″ × 7.72″ × 21.4″ (43.2 cm × 19.6 cm × 54.4 cm)
Weight Approx. 112 lb (51 kg)
Certifications TAA compliant; ENERGY STAR; cULus
