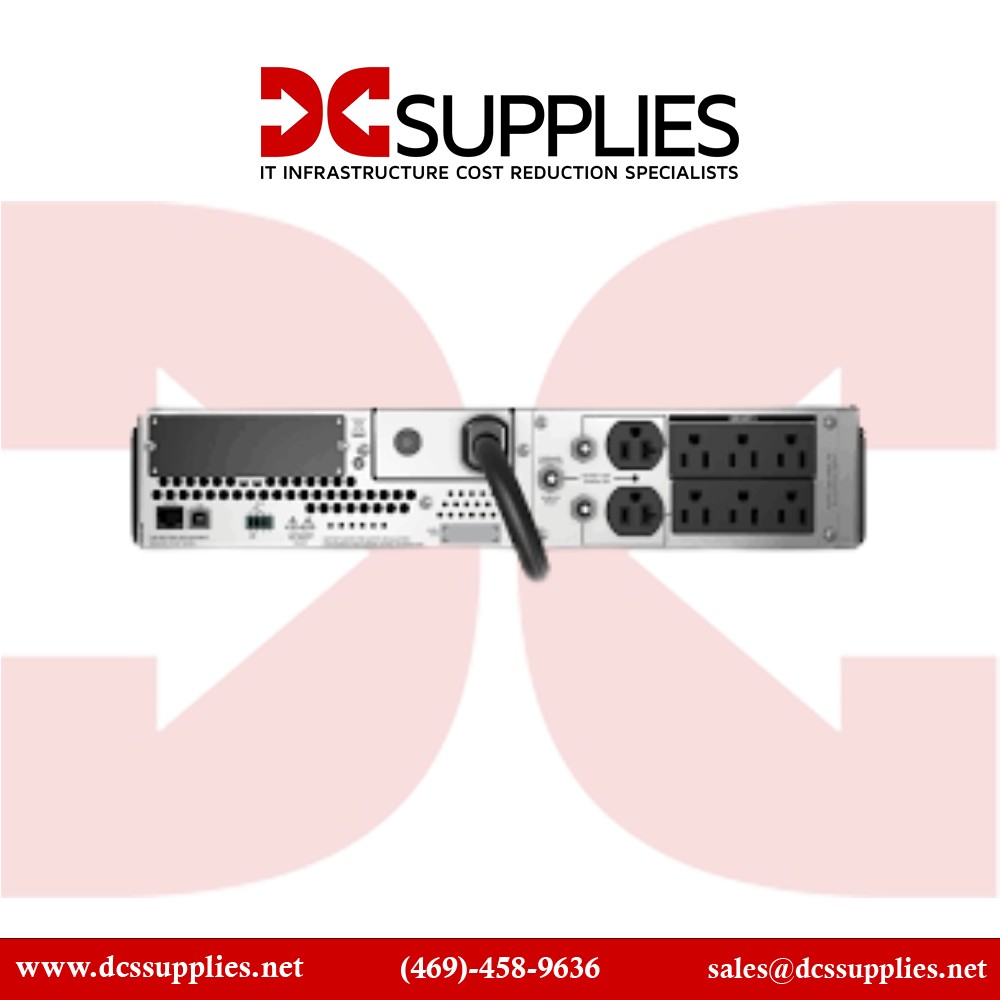

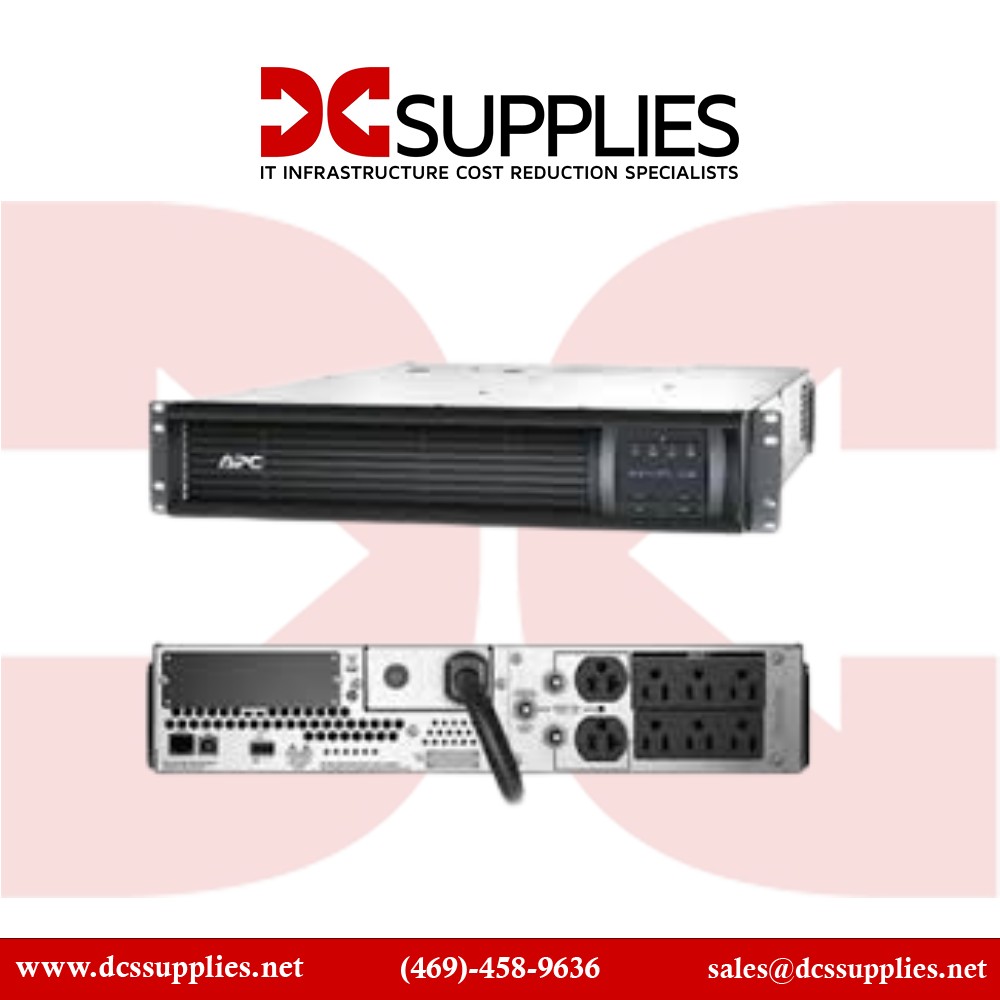

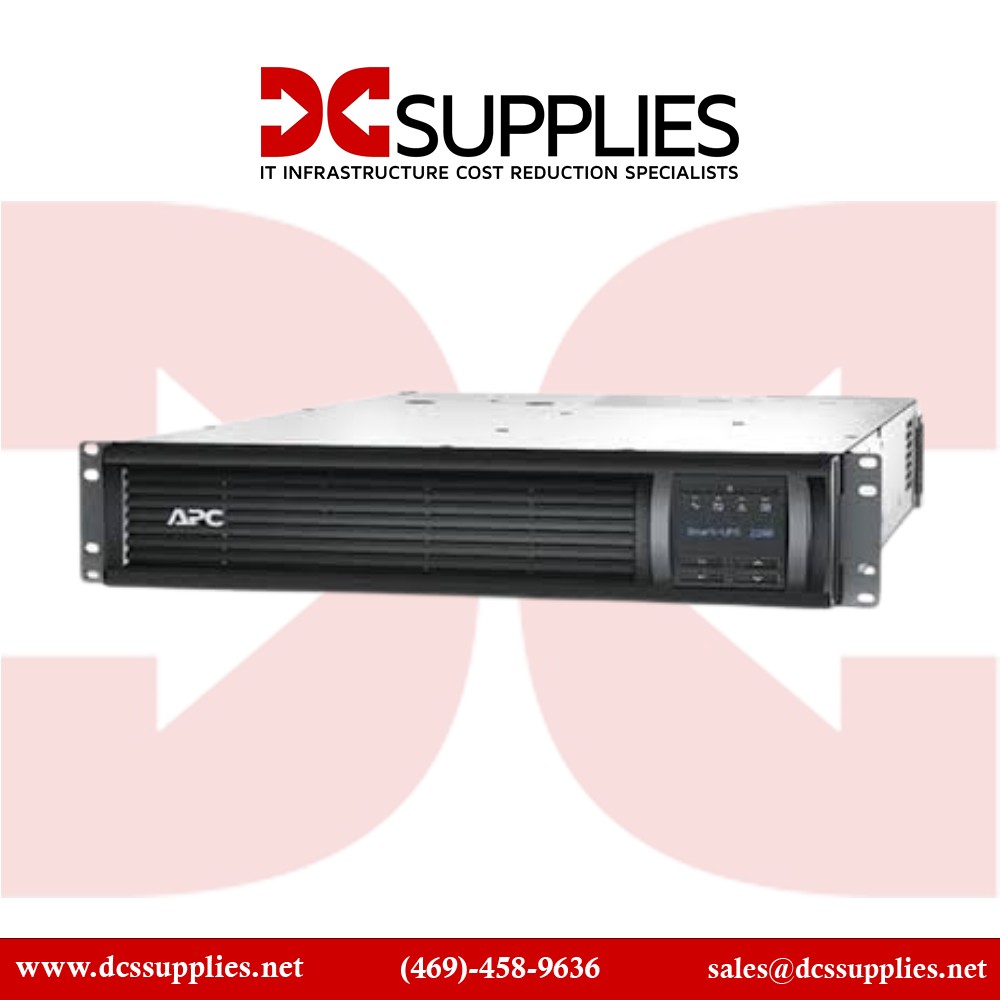

APC SMT2200R2X106 Smart-UPS Line Interactive 2200VA Rackmount 2U 120V 6x NEMA 5-15R+2x NEMA 5-20R Outlets View larger
Previous Next

APC SMT2200R2X106 Smart-UPS Line Interactive 2200VA Rackmount 2U 120V 6x NEMA 5-15R+2x NEMA 5-20R Outlets

New

APC Reliable power backup with 2200VA, 2U Rackmount UPS, 8 outlets.
×




  • New

Detailed Specifications

APC

SMT2200R2X106

Smart-UPS 2200VA Line Interactive 2U Rackmount 120V UPS

The APC SMT2200R2X106 Smart-UPS is a 2U rackmount uninterruptible power supply (UPS) designed for enterprise-grade IT environments, offering 2200VA/1980W of reliable backup power. Built for 120V systems, it features intelligent battery management, automatic voltage regulation (AVR), and advanced LCD diagnostics for secure operation of servers, switches, and critical infrastructure.

Features

With its line-interactive topology, the SMT2200R2X106 continuously regulates voltage fluctuations while delivering immediate battery backup in the event of power failure. It supports up to 8 outlets (6x NEMA 5-15R, 2x NEMA 5-20R) to power servers, networking hardware, and storage systems.

Advanced Options

Designed for rackmount installation in a compact 2U form factor, this UPS provides real-time status via an intuitive LCD interface and offers remote management capabilities when paired with optional network cards. It’s a robust solution for businesses seeking continuity, performance, and energy efficiency in mission-critical environments.

Product Key Features

  • 2200VA / 1980W Line-Interactive UPS with AVR

  • 2U rackmount design with 8 total outlets

  • Pure sine wave output for sensitive electronics

  • Intelligent battery management for extended battery life

  • Intuitive LCD interface with status and configuration options

  • Expandable runtime with optional external battery packs

Reliability & Performance

The SMT2200R2X106 is engineered for long-term performance in enterprise and SMB settings. Its intelligent AVR technology ensures clean power delivery, while hot-swappable batteries and high-efficiency operation reduce maintenance downtime and power consumption. Trusted in server rooms, network closets, and edge computing sites.

Key Features (Bullet List)

  • 2200VA / 1980W Line-Interactive UPS

  • 2U rackmount form factor

  • Input Voltage: 120V

  • 6x NEMA 5-15R & 2x NEMA 5-20R outlets

  • LCD display for diagnostics and control

  • Automatic Voltage Regulation (AVR)

  • Hot-swappable, user-replaceable batteries

  • External battery pack support

  • Pure sine wave output

  • USB & Serial communication ports

Specifications :

SpecificationDetails
Model Number SMT2200R2X106
Type Line-Interactive Smart-UPS
Form Factor Rackmount (2U)
Power Capacity 2200VA / 1980W
Input Voltage 120V
Output Voltage 120V
Outlets 6x NEMA 5-15R, 2x NEMA 5-20R
Waveform Pure Sine Wave
Battery Type Sealed Lead-Acid, Maintenance-Free
Expansion Supports external battery packs
Interface LCD Display, USB, Serial Port
Dimensions (HxWxD) 3.5 x 17 x 26.9 in (88 x 432 x 683 mm)
Weight ~111 lbs (50.3 kg)
Warranty 3 Years (UPS), 2 Years (Battery)
