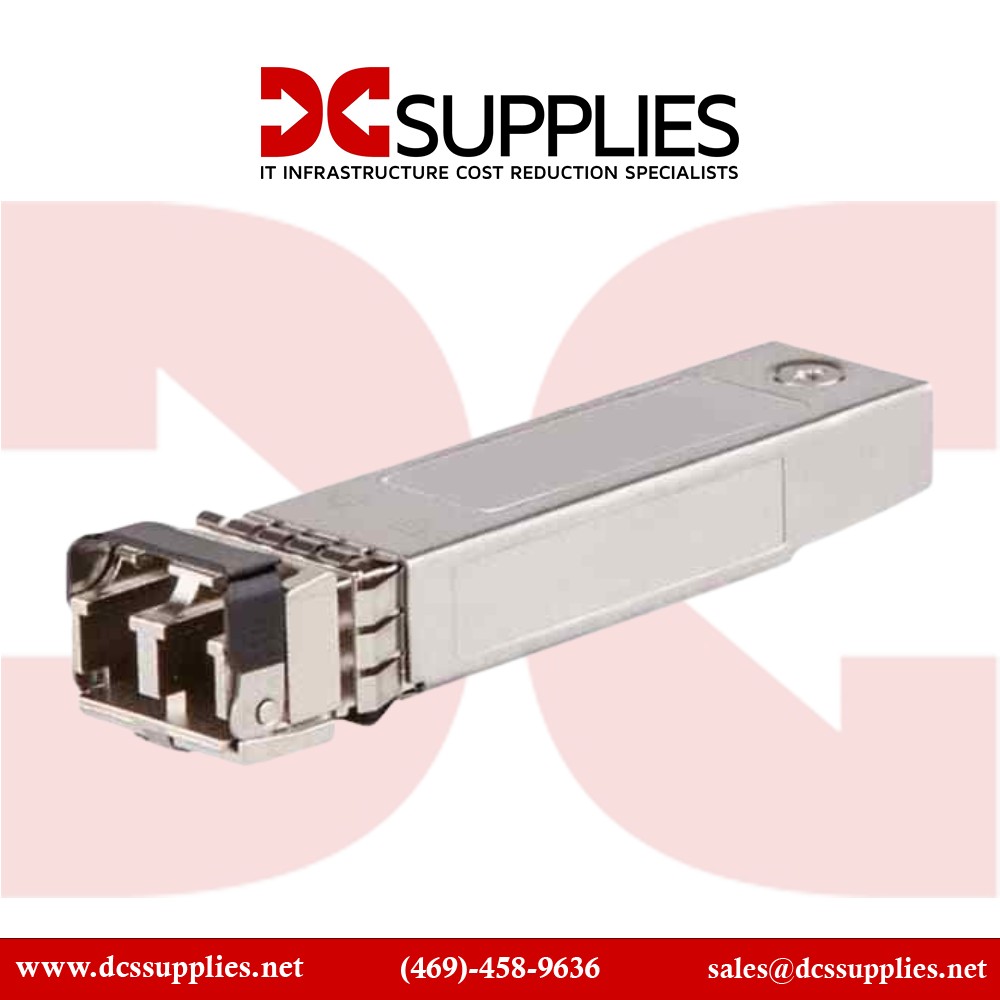

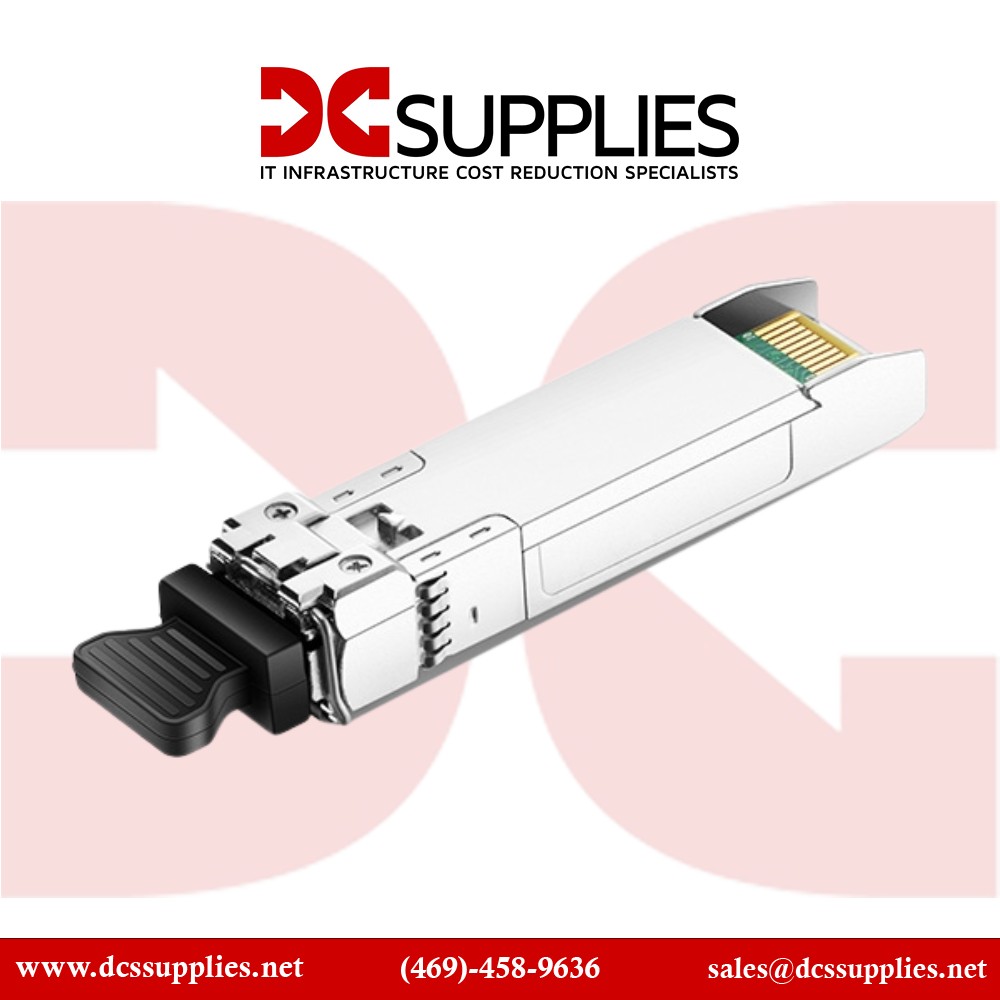

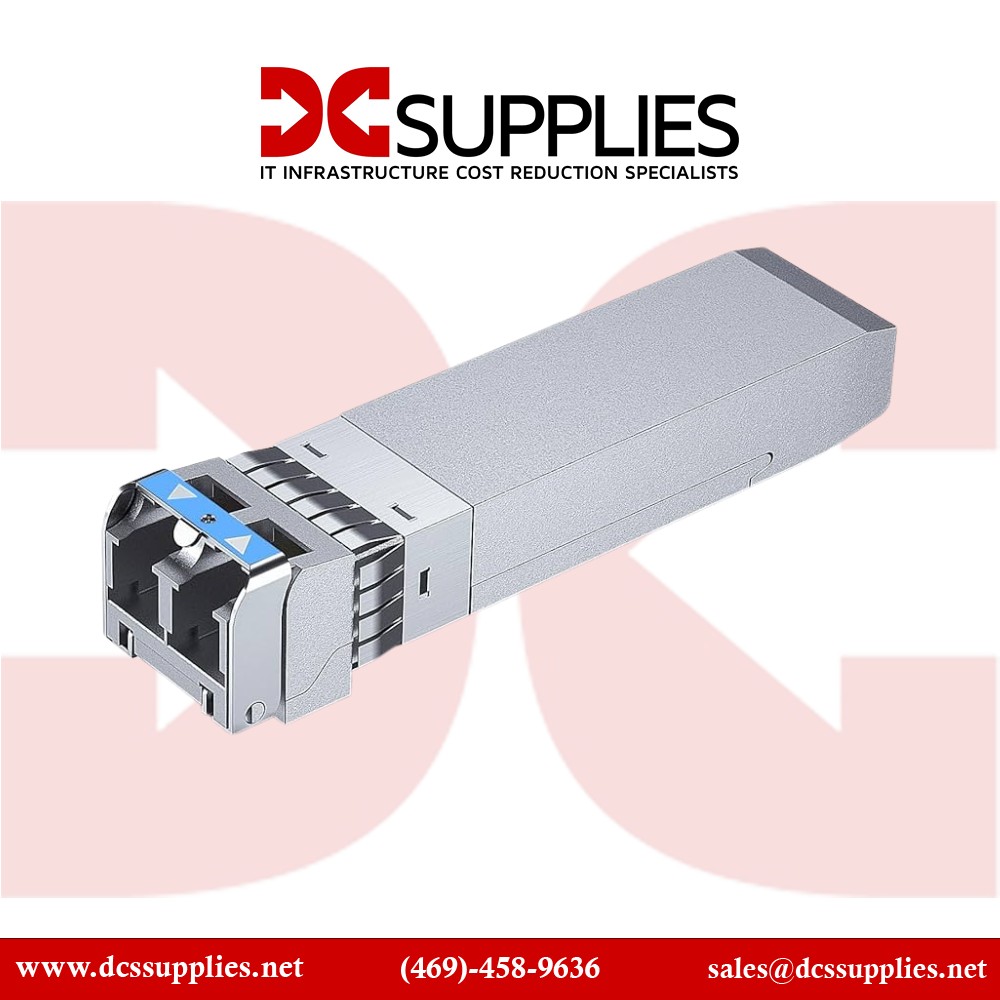

HPE JD098B Compatible 1000BASE-BX10-U 1310nm-TX/1490nm-RX SFP Transceiver

New

HP JD098B Compatible 1000BASE-BX10-U...

×




  • New

Detailed Specifications

HPE JD098B

Compatible 1000BASE-BX10-U SFP Transceiver – 1310nm TX / 1490nm RX, 10km SMF

The HP JD098B Compatible 1000BASE-BX10-U SFP Transceiver provides a simple and cost-effective solution for deploying long-distance Gigabit Ethernet over a single fiber strand. It uses 1310nm TX and 1490nm RX wavelengths to support up to 10km of reach on single-mode fiber, making it ideal for enterprise, campus, and metro access networks.

Features

This bidirectional (BiDi) SFP module reduces fiber infrastructure costs by enabling both transmit and receive over a single fiber using complementary wavelengths. Fully hot-swappable and MSA-compliant, the module integrates seamlessly with HP networking gear and other compatible devices.

Advanced Options

With support for Digital Diagnostics Monitoring (DDM), IT administrators can monitor optical parameters such as temperature, voltage, and laser bias current in real time. The result is enhanced manageability, easier troubleshooting, and reliable uptime across your network backbone or point-to-point fiber deployments.

Product Key Features

    • 1310nm transmit / 1490nm receive BiDi SFP for single-strand fiber links

    •  Supports 1000BASE-BX10-U Gigabit Ethernet over 10km on single-mode fiber

    • Hot-swappable SFP form factor – easy deployment and replacement

    • MSA-compliant for plug-and-play compatibility with HP JD098B and other devices

    • DDM (Digital Diagnostics Monitoring) support for real-time performance tracking

    •  Energy-efficient, compact design ideal for dense networking environments

Reliability & Performance

Built for long-range performance and efficient operation, the JD098B-compatible module delivers high-speed, low-latency Gigabit Ethernet connections over up to 10km. Its rugged, compact design fits easily into tight switch or router bays while maintaining consistent signal integrity. The transceiver’s low power consumption and optical stability make it well-suited for high-availability environments.

Key Features :

  • Supports 1000BASE-BX10-U over single-mode fiber

  • 1310nm TX / 1490nm RX bidirectional operation

  • Up to 10km transmission distance

  • Simplex LC fiber connector

  • SFP form factor – hot-swappable

  • Digital Diagnostics Monitoring (DDM) enabled

  • Fully MSA-compliant

  • Compatible with HP JD098B and major vendor switches

  • RoHS and CE certified

SpecificationDetails
Model Number JD098B Compatible
Product Type 1000BASE-BX10-U SFP Transceiver
Data Rate 1.25 Gbps (Gigabit Ethernet)
Wavelength TX: 1310nm / RX: 1490nm
Max Distance 10 km (6.21 miles)
Fiber Type Single-Mode Fiber (SMF)
Connector Type Simplex LC
Digital Diagnostics Yes (DDM / DOM supported)
Transceiver Type Bidirectional (BiDi) SFP
Form Factor SFP (Hot-swappable)
Power Supply Voltage 3.3 V
Power Consumption <1.0 W typical
Operating Temperature 0°C to 70°C (32°F to 158°F)
Compliance SFP MSA, IEEE 802.3ah, RoHS, CE
Compatibility HP JD098B and other MSA-compliant devices
