HPE P57687-B21 Proliant DL320 Gen11 Xeon-S 4410Y 12-Core 16GB 8SFF MR408i-o 500W 3-Year View larger

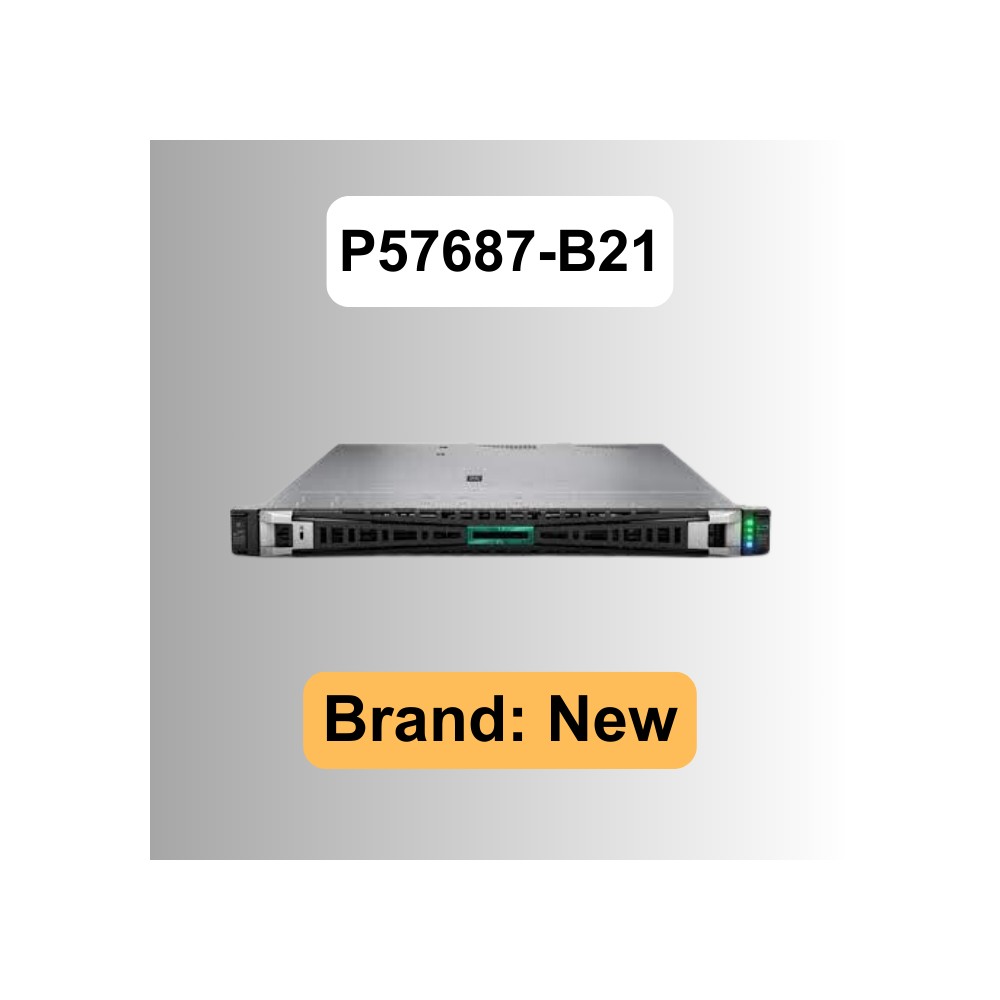

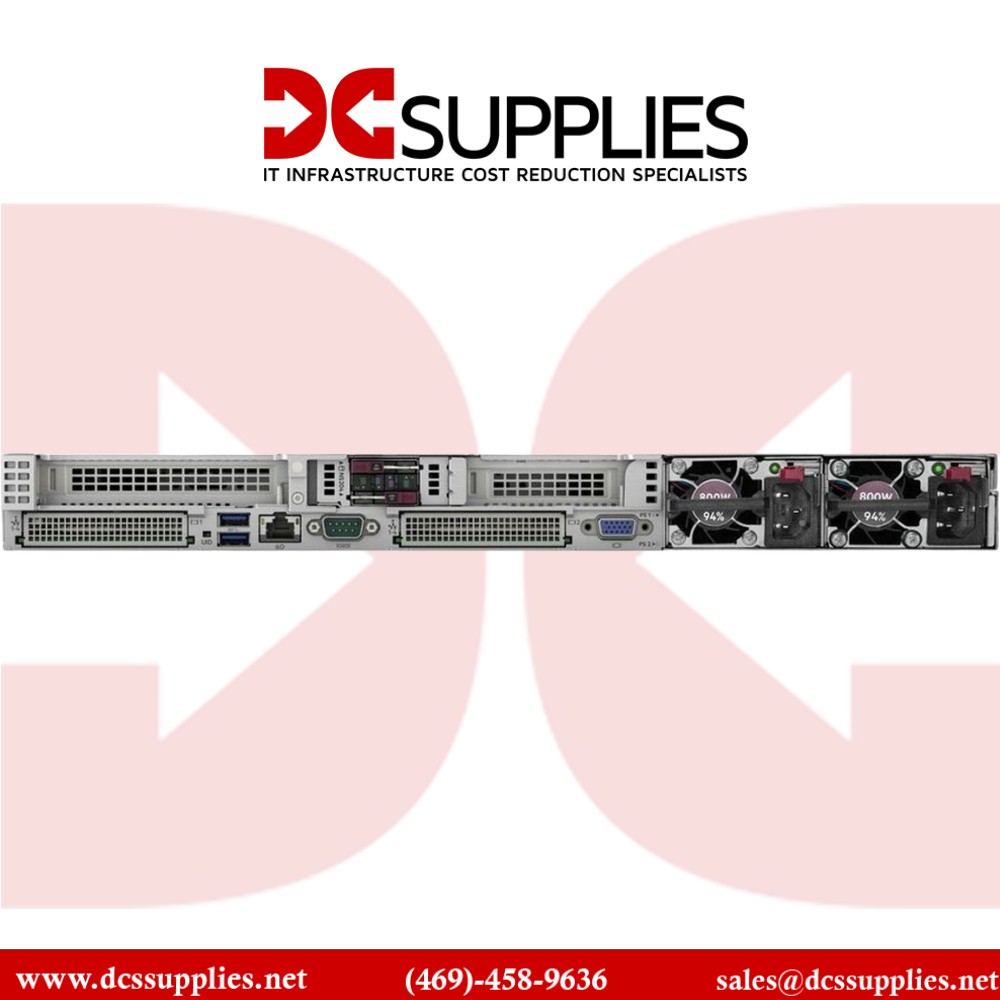

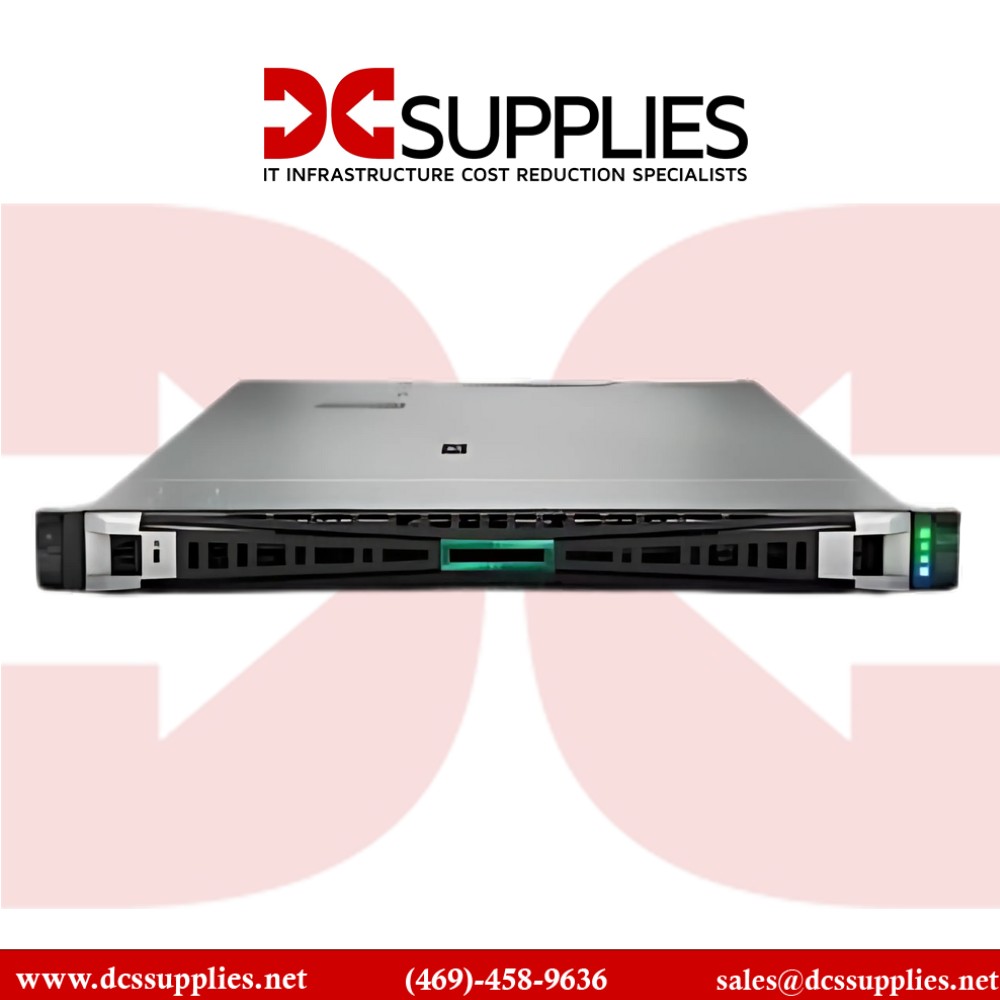

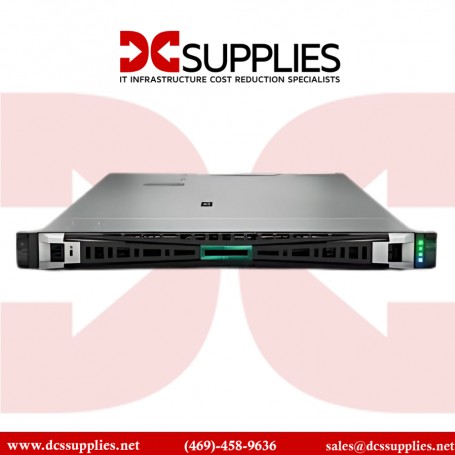

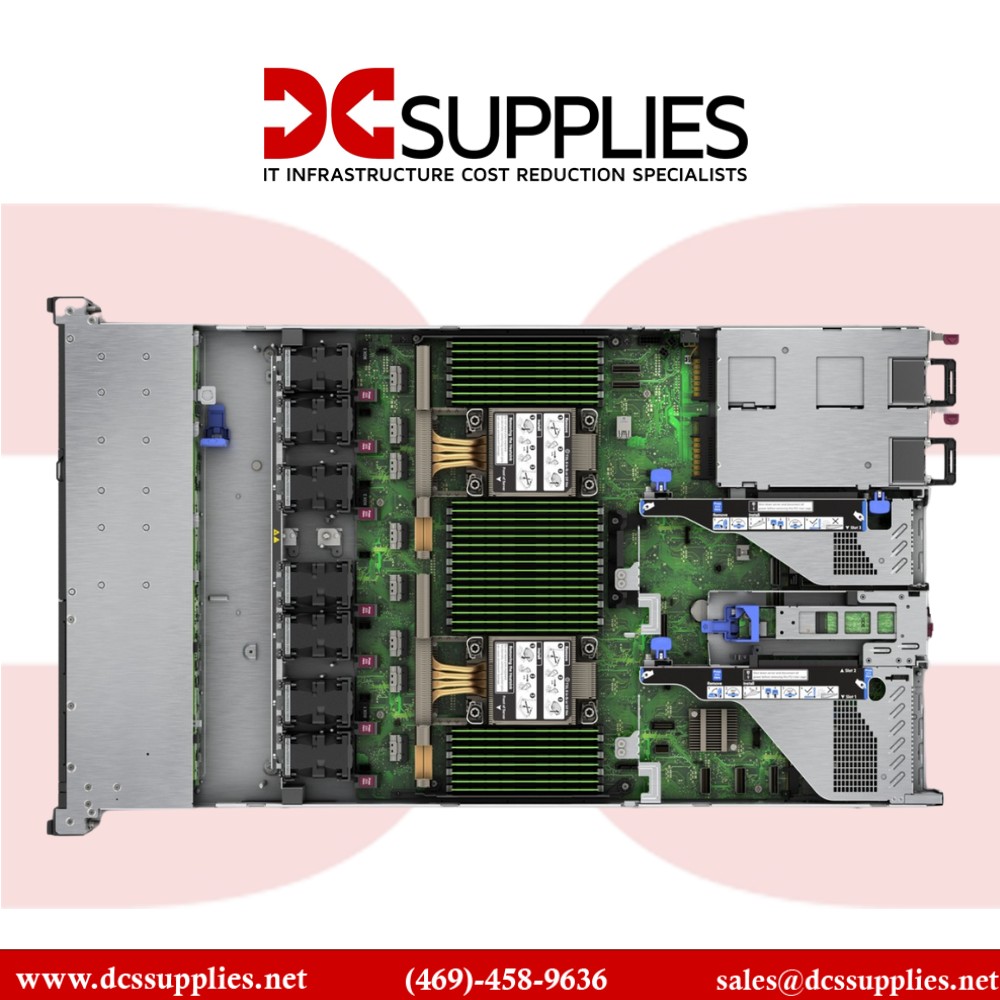

HPE P57687-B21 ProLiant DL320 Gen11 12-Core Xeon Server

New

In Stock

 The HPE ProLiant DL320 Gen11 servers simplify the way you control your business compute from edge to cloud operating experience.
×




$3,499.90

  • New

Detailed Specifications

HPE ProLiant

P57687-B21

DL320 Gen11 1U Rack Server

The HPE ProLiant DL320 Gen11 (P57687‑B21) is a powerful and efficient 1U rackmount server designed for edge computing, SMB workloads, and virtualized environments. Powered by the 12-core Intel® Xeon® Silver 4410Y processor, it offers exceptional processing capability in a compact form factor. The DL320 Gen11 delivers excellent scalability, memory performance with DDR5 technology, and advanced security through HPE Silicon Root of Trust.

Features

This Gen11 server from HPE combines robust performance and expandability in a single-socket design, equipped with the Intel Xeon Silver 4410Y (12 cores, 2.0GHz base, up to 3.9GHz turbo). It comes pre-configured with 16GB DDR5 ECC RDIMM, expandable up to 2TB through 16 DIMM slots for high-speed memory access and bandwidth.

Advanced Options

Storage is handled via 8 SFF (2.5") hot-plug drive bays, supporting SAS, SATA, or NVMe drives and managed by the MR408i-o RAID controller with 4GB cache for enhanced reliability. Networking and I/O expansion are well-supported with two PCIe Gen5 slots and an OCP 3.0 mezzanine slot, enabling flexible connectivity or GPU integration. Integrated HPE iLO 6 management provides remote access, monitoring, and firmware control. The 500W hot-plug Platinum power supply ensures consistent and energy-efficient performance in high-density environments.

Product Key Features

  • Intel® Xeon® Silver 4410Y processor (12C / 24T, 2.0–3.9GHz)

  • 16GB DDR5 ECC RDIMM (expandable to 2TB)

  • 8 x 2.5" SFF hot-plug bays (SAS/SATA/NVMe)

  • HPE MR408i-o RAID controller with 4GB cache

  • 2 x PCIe Gen5 slots, 1 x OCP 3.0 slot

  • Dual 1GbE embedded network ports

  • 500W hot-plug Platinum PSU

  • HPE iLO 6 management

  • Embedded security: Silicon Root of Trust & Intel SGX

Reliability & Performance

The DL320 Gen11 is engineered for 24/7 availability, leveraging the power of the latest Intel Xeon Scalable processors and high-speed DDR5 memory for faster data throughput and reduced latency. The RAID controller ensures data integrity while hot-plug drive bays allow seamless maintenance and upgrades. Its compact 1U design fits dense environments, while PCIe Gen5 and OCP expandability enable futureproof upgrades in networking and storage. With HPE iLO 6, IT administrators can manage deployments remotely with confidence, while integrated hardware-level security features safeguard against firmware attacks.

Key Features (Bullet List)

  • Intel Xeon Silver 4410Y, 12-core processor

  • 16GB DDR5 ECC RAM (up to 2TB supported)

  • 8x hot-plug SFF drive bays

  • MR408i-o RAID with 4GB cache

  • Dual 1GbE ports & PCIe Gen5 support

  • 500W hot-plug Platinum PSU

  • HPE iLO 6 remote server management

  • Compact 1U rackmount form factor

  • Built-in firmware-level security

Specifications :

SpecificationDetails
Model Number P57687-B21
Form Factor 1U Rackmount
Processor Intel Xeon Silver 4410Y (12-core, 2.0–3.9GHz)
Installed Memory 16GB DDR5 ECC RDIMM
Max Memory 2TB (16 DIMM Slots)
Storage Bays 8 x 2.5" SFF Hot-Plug Bays
RAID Controller HPE MR408i-o, 4GB cache
Networking 2 x 1GbE Embedded Ports
Expansion Slots 2 x PCIe Gen5, 1 x OCP 3.0
Power Supply 500W Flex Slot Platinum, Hot-Plug
Management HPE iLO 6 Remote Management
Security Silicon Root of Trust, Intel SGX
Dimensions (HxWxD) 1.7" x 17.1" x 23.8"
Weight Approx. 26.5 lb (12 kg)
Warranty 3-Year Parts, Labor, Onsite
