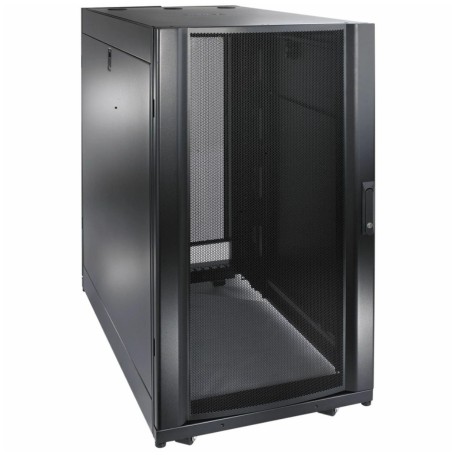

APC AR3104 NetShelter SX 24U Server Rack Enclosure - Black

New

In stock

APC Secure and versatile 24U server rack enclosure for IT environments.
×




$1,759.90

  • New

Detailed Specifications

APC

AR3104

NetShelter SX 24U Server Rack Enclosure – Floor-Mounted 19″ Cabinet, 600 mm x 1070 mm, Black

The APC AR3104 NetShelter SX is a 24‑rack‑unit (24U) enclosure tailored for network closets, edge compute sites, and compact data centers. It delivers enterprise-level functionality—ventilated steel doors, cable management, adjustable rails, and mobility—with a footprint that fits into tighter environments without sacrificing capacity

Features

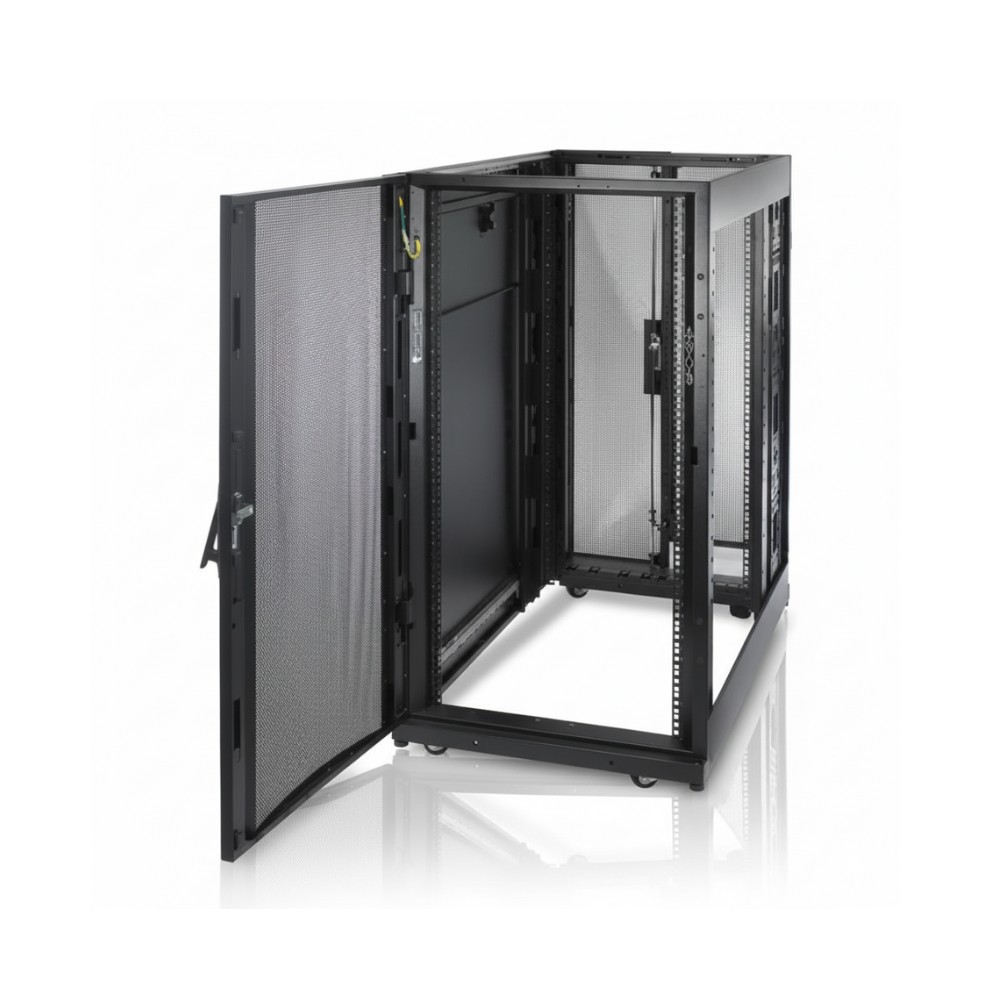

Designed for fast roll-out, the AR3104 ships fully assembled, including casters, leveling feet, perforated front/rear doors, removable half-height side panels, and integrated roof. Adjustable mounting rails align in incremental depth settings, accommodating diverse equipment profiles and enabling tool-free assembly. Split rear doors and quick-release panels ensure easy access, while side and roof cable openings—complete with brush strips—provide structured cable entry without airflow compromise

Advanced Options

Capable of supporting up to 3,000 lb static and 2,250 lb rolling loads, this cabinet offers stability and scalability for evolving infrastructure needs .

Product Key Features

  • 24U of usable rack depth in only 600 mm width

  • Fully assembled with casters + adjustable leveling feet

  • Ventilated, curved front & rear doors; split design

  • Adjustable mounting rails (191–915 mm depth range)

  • Integrated rear accessory channels with zero‑U positions

  • Cable-friendly roof & side brush‑strip openings

Reliability & Performance

Constructed with heavy‑gauge steel (rails: 14 ga; body: 16–18 ga), the AR3104 ensures rugged durability and electrical grounding across panels, doors, and roof. Its 5‑year repair or replace warranty reflects industrial-grade confidence. Conformity with EIA‑310, UL 60950, RoHS, REACH, and TAA standards ensures compliance and interoperability across global deployments

Key Features (Bullet List)

  • 24U EIA‑310 standard rack height

  • Adjustable side mounting rails

  • Perforated front & rear doors

  • Quick‑release panels & doors

  • Integrated cable management channels

  • Rugged steel construction & grounding

Specifications :

SpecificationDetails
Model Number AR3104
Enclosure Height 47.19 in (1,198 mm)
Enclosure Width 23.62 in (600 mm)
Enclosure Depth 42.13 in (1,070 mm); with stabilizing feet: 50.3 in
Usable Rack Units (U) 24U
Net Weight 196 lb (89 kg)
Shipping Weight ~235 lb (107 kg)
Static Load Capacity 3,000 lb (1,361 kg)
Dynamic (Rolling) Capacity 2,250 lb (1,022 kg)
Rail Depth Adjustment From 7.52 in to 36.02 in (191 mm–915 mm)
Materials (doors/panels) Rails: 14 ga; doors: 16/18 ga; panels: 18 ga
Doors Perforated, curved, quick‑release, split rear
Side Panels Half‑height, lockable, removable
Casters & Feet Included; feet adjustable from above/below
Cable Openings Roof & side with brush strips
Accessory Channels Rear vertical zero‑U channels (2 bays)
Standards & Compliance EIA‑310, UL 60950, RoHS, REACH, TAA
Warranty 5 years repair or replace
